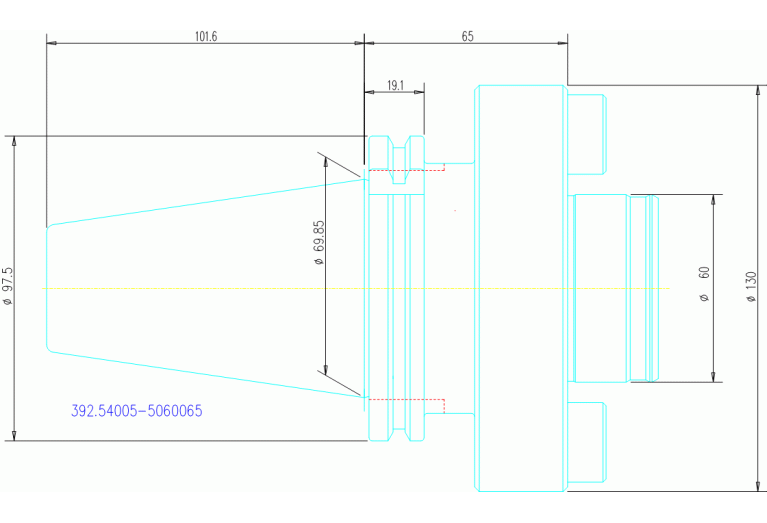

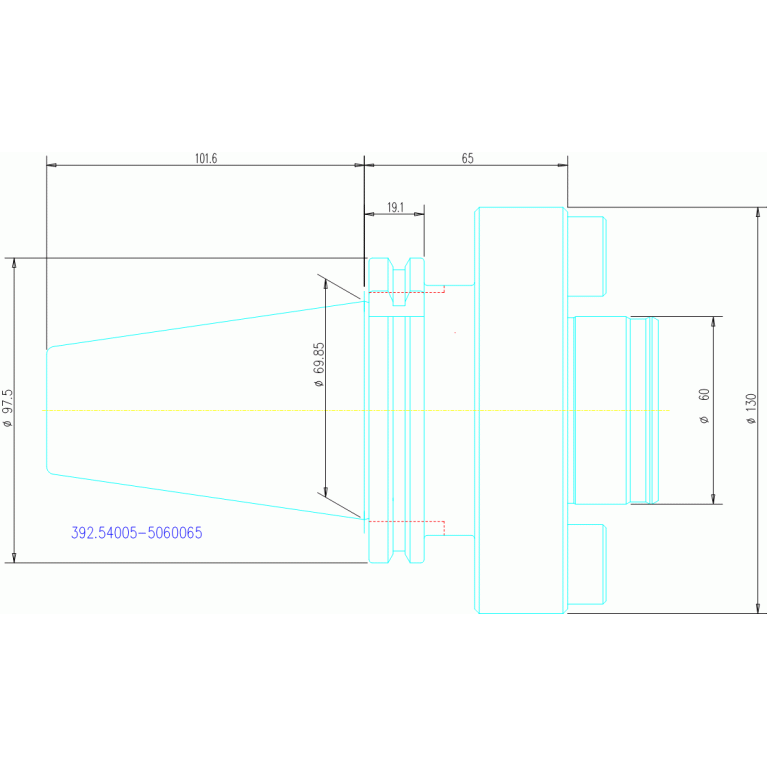

Главная Инструменты 401-01 - Converter, rotationally symmetric 392.54005-5060065

392.54005-5060065

Артикул: 7079774

В наличии

0 ₽

В корзину

Описание

Характеристики

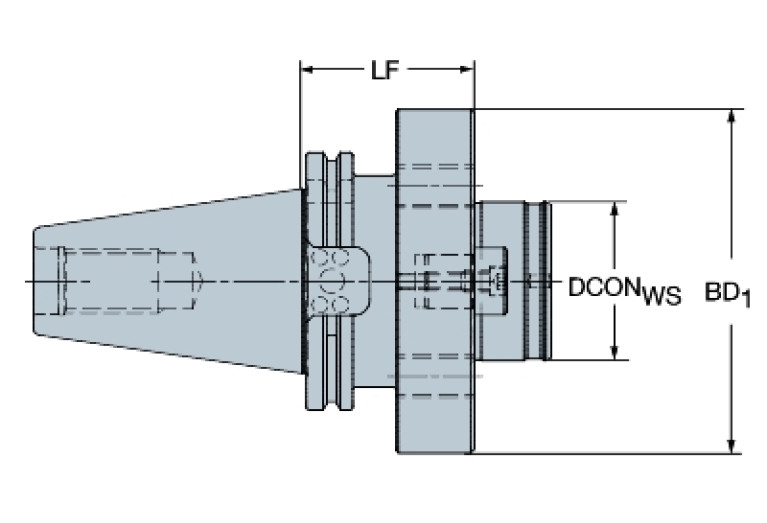

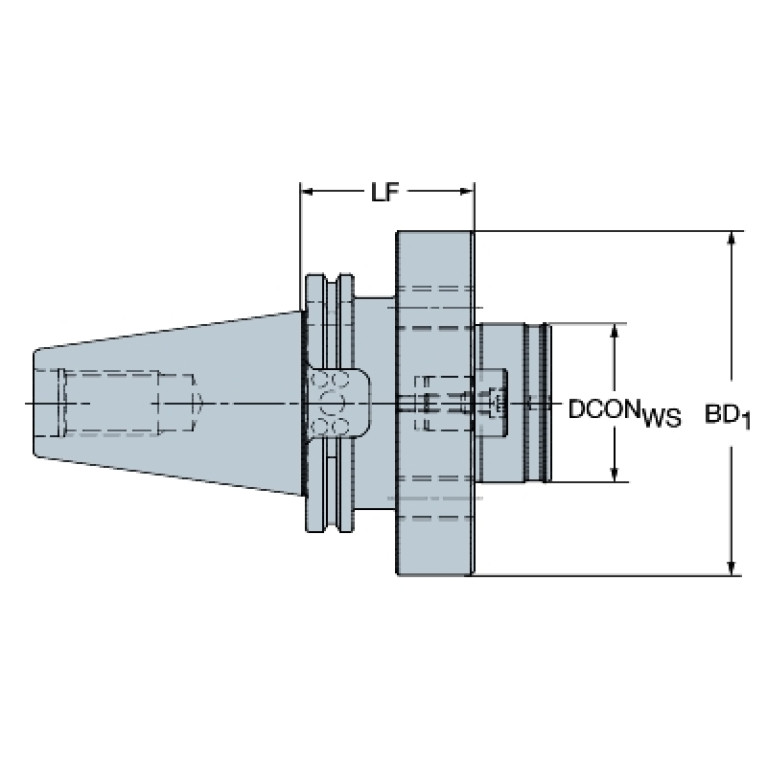

BD (Body diameter)

130 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SPK

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

CZCWS (Connection size code)

0600

DBHC (Diameter bolt hole circle)

101.6 mm

DCONWS (Diameter)

60 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

60 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DF (Flange diameter)

97.5 mm

DIN

SKG05001085

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

SKG10C0500$$$$

LB (Body length 1)

45.9 mm

LF (Functional length)

65 mm

LOC-01 ISO

SPK02G6000****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or

LOC-01 (CCTWS Connection code type)

SPK Spindle nose mounting

LOC-01 (CCUWS Connection code unit base)

0 Metric

LOC-01 (CZCWS Connection size code)

0600

LOC-01 (DCONWS Diameter)

60 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SPK06000203

LOC-03 ISO

SKG10C0500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SKG steep taper shank

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0500

LOC-03 (DCONMS Diameter)

60 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001085

LPR (Protruding length)

65 mm

OAL (Overall length)

195.6 mm

RPMX (Rotational speed maximum)

12000 1/min

WT (Weight of item)

6.989 kg
