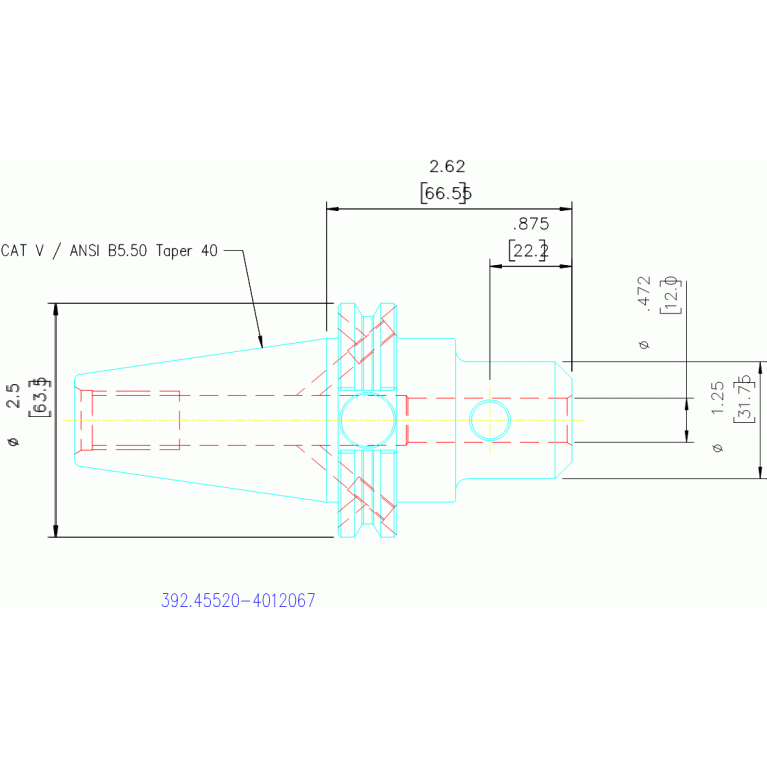

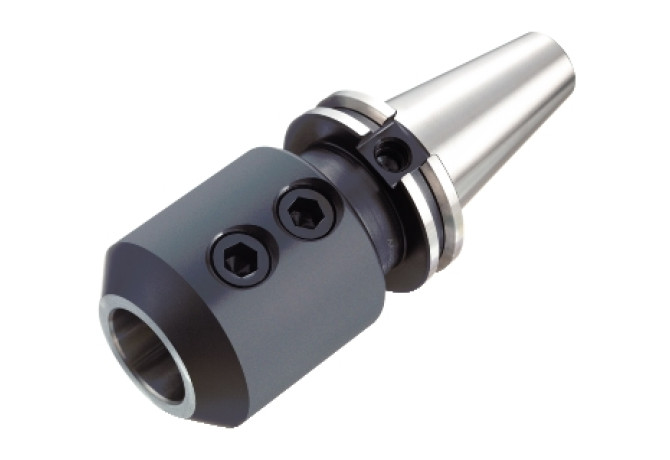

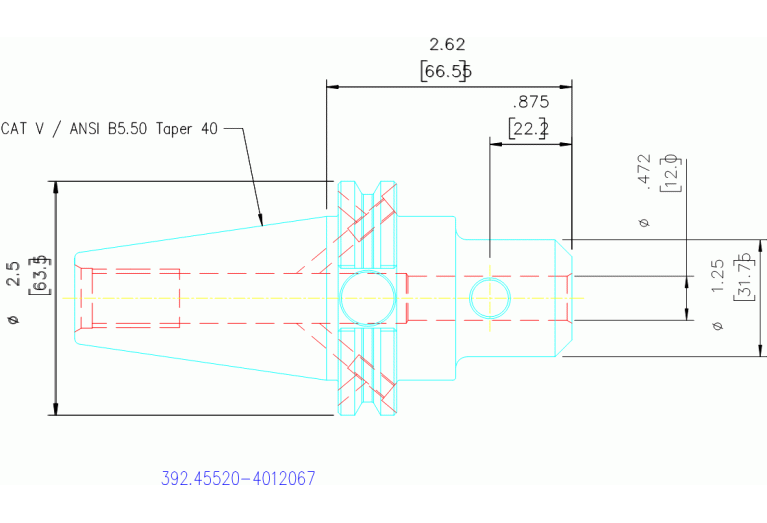

Главная Инструменты 401-01 - Converter, rotationally symmetric 392.45520-40 12 067

392.45520-40 12 067

Артикул: 5760106

В наличии

0 ₽

В корзину

Описание

Характеристики

BD (Body diameter 2)

44.4 mm

BD (Body diameter)

31.8 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

7 - Coolant entry, decentral and axially concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0120

DCONWS (Diameter)

12 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

12 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DF (Flange diameter)

63.5 mm

DIN

SKG04003795

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

SKG37C0400$$$$

LB (Body length 1)

31.5 mm

LB (Length 2)

16 mm

LF (Functional length)

66.55 mm

LOC-01 ISO

ZYL10G1200****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0120

LOC-01 (DCONWS Diameter)

12 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01201015

LOC-02 ISO

ZYL10R4724****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-02 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-02 (CZCWS Connection size code)

0120

LOC-02 (DCONWS Diameter)

12 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL01201815

LOC-03 ISO

SKG37C0400$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SKG steep taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0400

LOC-03 (DCONMS Diameter)

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04003795

LPR (Protruding length)

66.55 mm

OAL (Overall length)

134.95 mm

RPMX (Rotational speed maximum)

18000 1/min

WT (Weight of item)

1.168 kg
