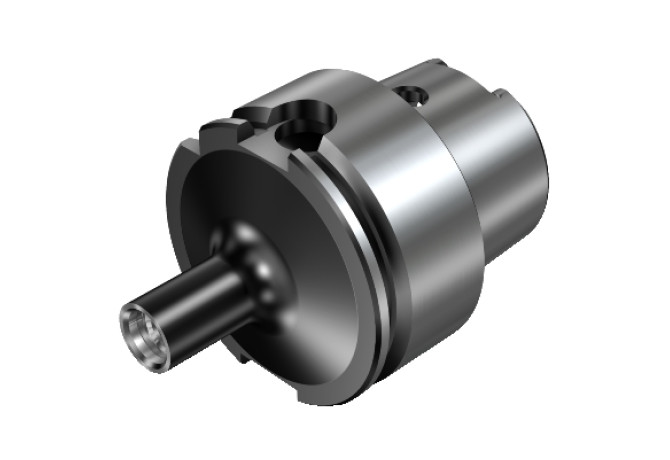

Главная Инструменты 401-01 - Converter, rotationally symmetric 392.410EH-50 12 050

392.410EH-50 12 050

392.410EH-50 12 050 392.410EH-50 12 050 392.410EH-50 12 050 392.410EH-50 12 050

392.410EH-50 12 050

SV - Sandvik-Coromant
Артикул: 6229013
В наличии
0 ₽
В корзину
Описание
Характеристики

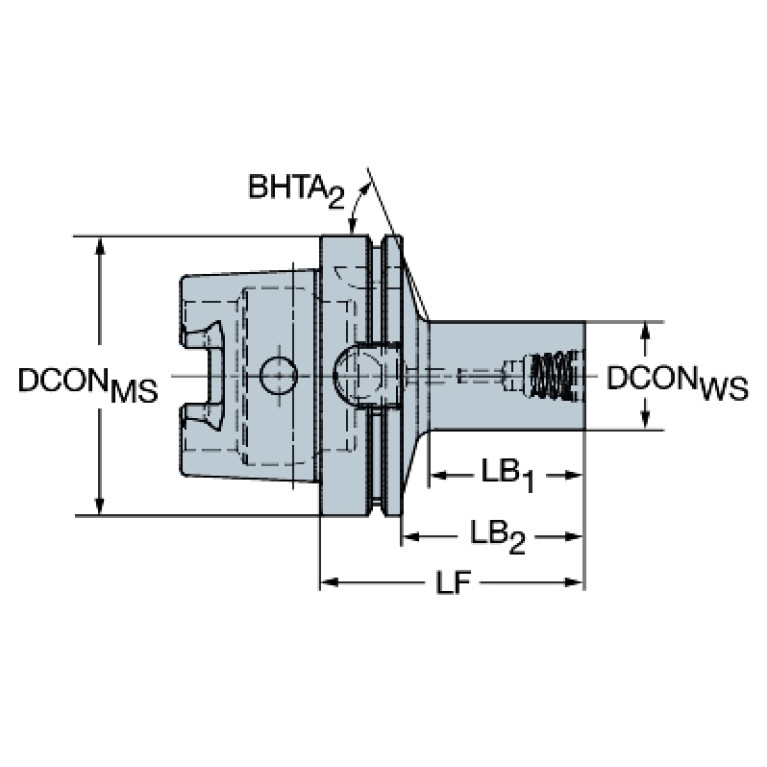

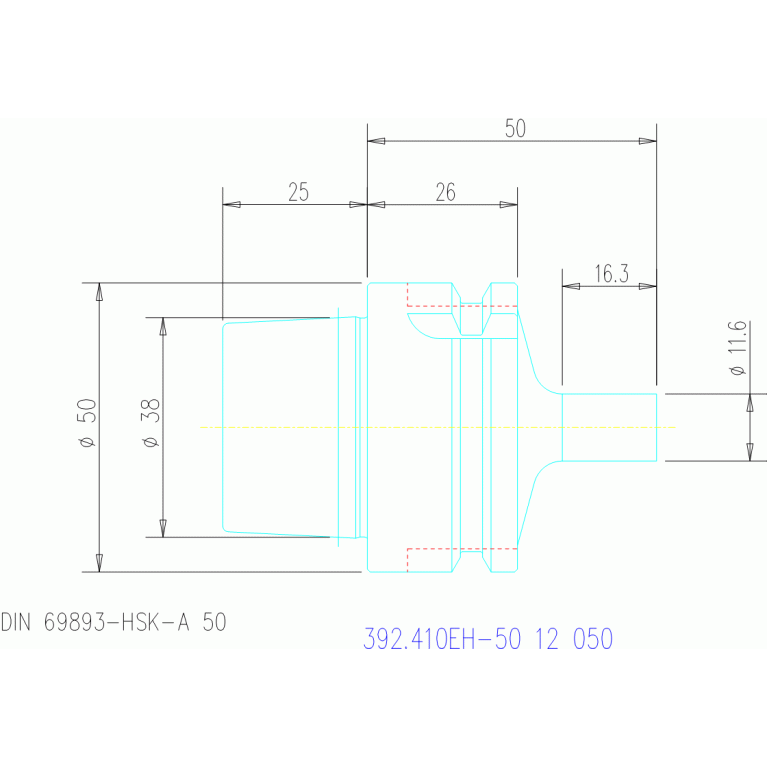

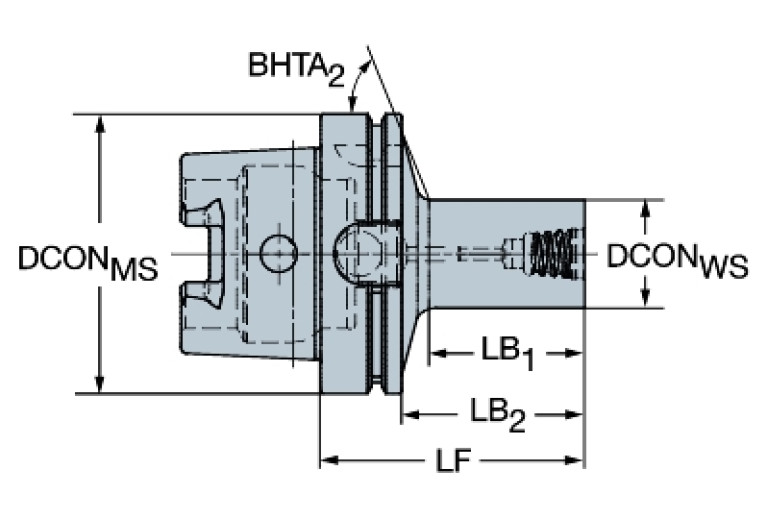

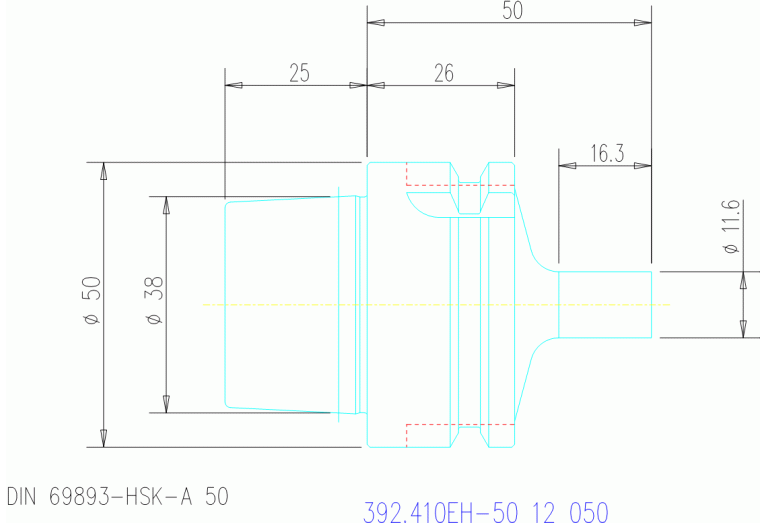

BD (Body diameter 2)
40.563 mm
BD (Body diameter 3)
50 mm
BD (Body diameter)
11.6 mm
BHTA (Body half taper angle 2)
62 Degree
BLDEV (Balancing device)
1
CCFWS (Connection code form)
04
CCSWS (Connection code style)
5
CCTWS (Connection code type)
SAC
CCUWS (Connection code unit base)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0120
DCONWS (Diameter)
50 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
50 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
HSK05000195
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
HSK01C0500$$$$
LB (Body length 1)
16.3 mm
LB (Length 2)
7.7 mm
LB (Length Body diameter 3)
26 mm
LF (Functional length)
50 mm
LOC-01 (CCFWS Connection code form)
04
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
SAC Screw mounting SANDVIK Coromant
LOC-01 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-01 (CZCWS Connection size code)
0120
LOC-01 (DCONWS Diameter)
50 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAC01200415
LOC-02 ISO
SAC04B0120****
LOC-02 (DCONWS Diameter)
50 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-03 ISO
HSK01C0500$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
HSK Hollow taper shank
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0500
LOC-03 (DCONMS Diameter)
50 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK05000195
LPR (Protruding length)
50 mm
OAL (Overall length)
75 mm
RPMX (Rotational speed maximum)
25000 1/min
WT (Weight of item)
0.412 kg
