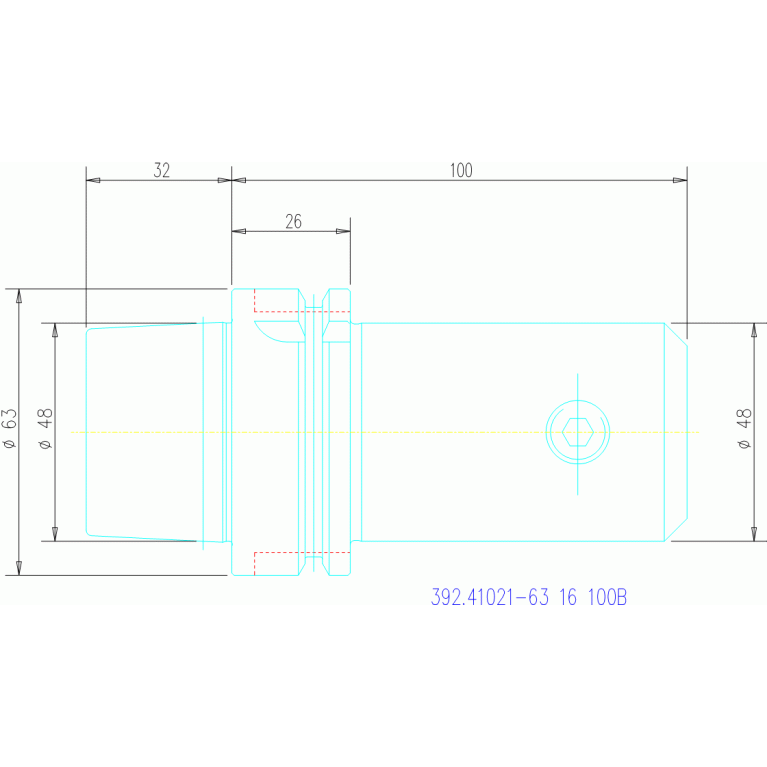

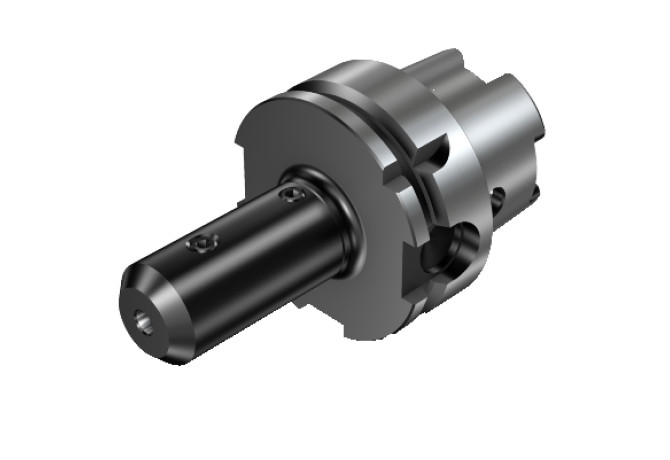

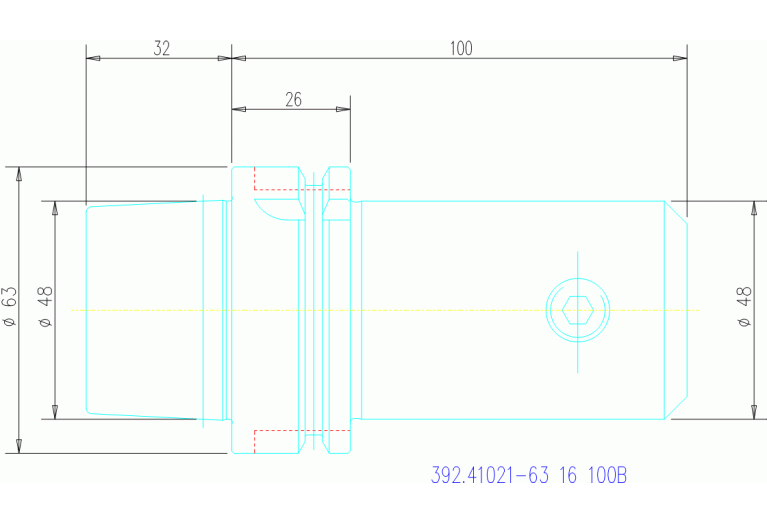

Главная Инструменты 401-01 - Converter, rotationally symmetric 392.41021-63 16 100B

392.41021-63 16 100B

392.41021-63 16 100B 392.41021-63 16 100B 392.41021-63 16 100B 392.41021-63 16 100B

392.41021-63 16 100B

SV - Sandvik-Coromant
Артикул: 5759958
В наличии
0 ₽
В корзину
Описание
Характеристики

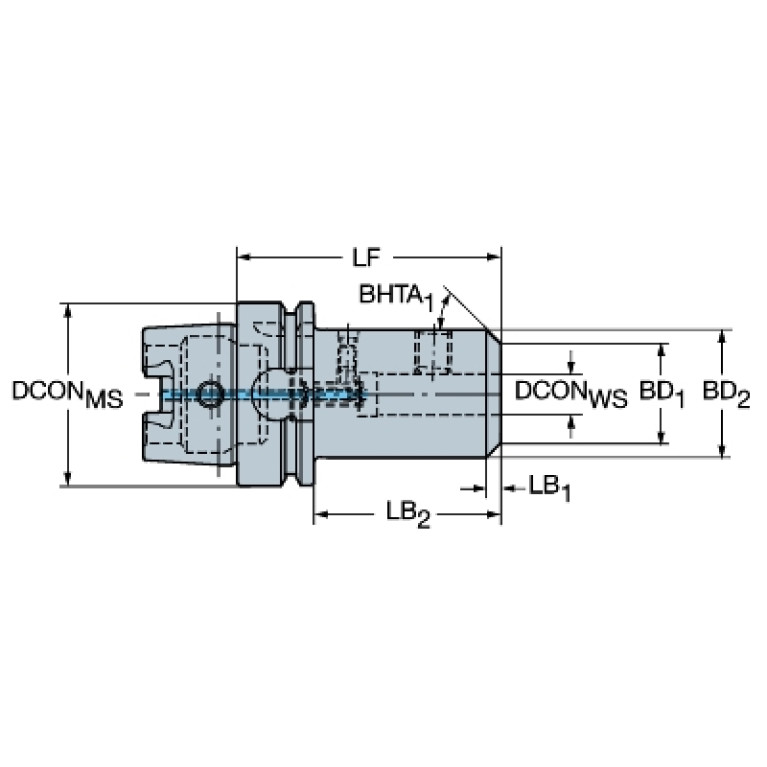

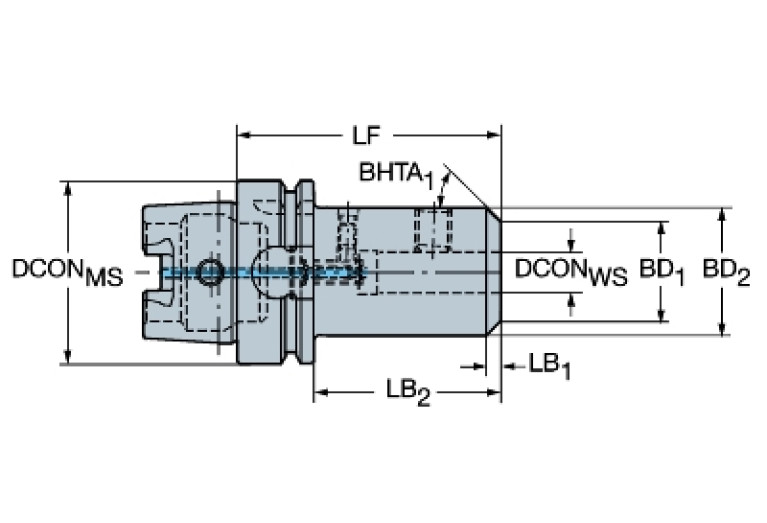

BD (Body diameter 2)
48 mm
BD (Body diameter 3)
63 mm
BD (Body diameter)
48 mm
BHTA (Body half taper angle 2)
0 Degree
BHTA (Body half taper angle 3)
0 Degree
BLDEV (Balancing device)
1
CCFWS (Connection code form)
18
CCSWS (Connection code style)
5
CCTWS (Connection code type)
ZYL
CCUWS (Connection code unit base)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0160
DCONWS (Diameter)
16 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
16 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
HAND (Cutting direction)
N - Neutral
Interface codes
/ J61
ISO
HSK01C0630$$$$
LB (Body length 1)
5 mm
LB (Length 2)
69 mm
LB (Length Body diameter 3)
26 mm
LF (Functional length)
100 mm
LOC-01 (CCFWS Connection code form)
18
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
ZYL cylindrical shank
LOC-01 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-01 (CZCWS Connection size code)
0160
LOC-01 (DCONWS Diameter)
16 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01601815
LOC-02 ISO
ZYL13R6299****
LOC-02 (DCONWS Diameter)
16 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-03 ISO
HSK01C0630$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
HSK Hollow taper shank
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0630
LOC-03 (DCONMS Diameter)
63 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
OAL (Overall length)
132 mm
Rotation (Rotation indicator)
1 - rotating tool
WT (Weight of item)
1.616 kg
