Главная Инструменты 401-01 - Converter, rotationally symmetric 392.41020-63 08 065B

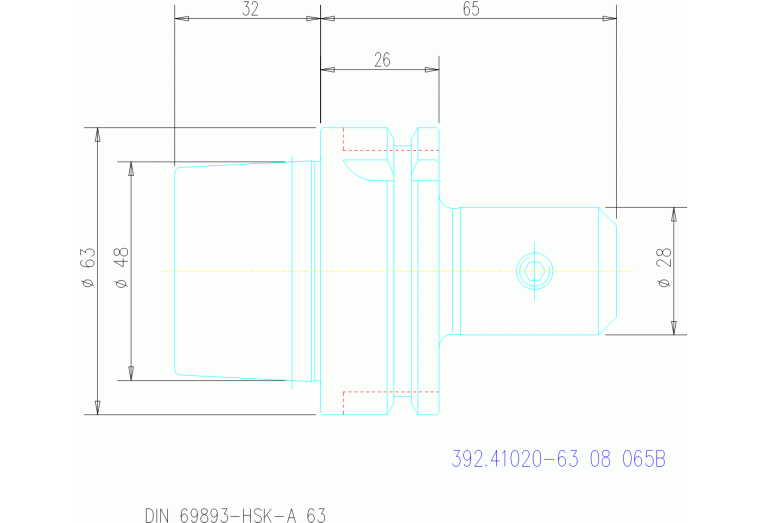

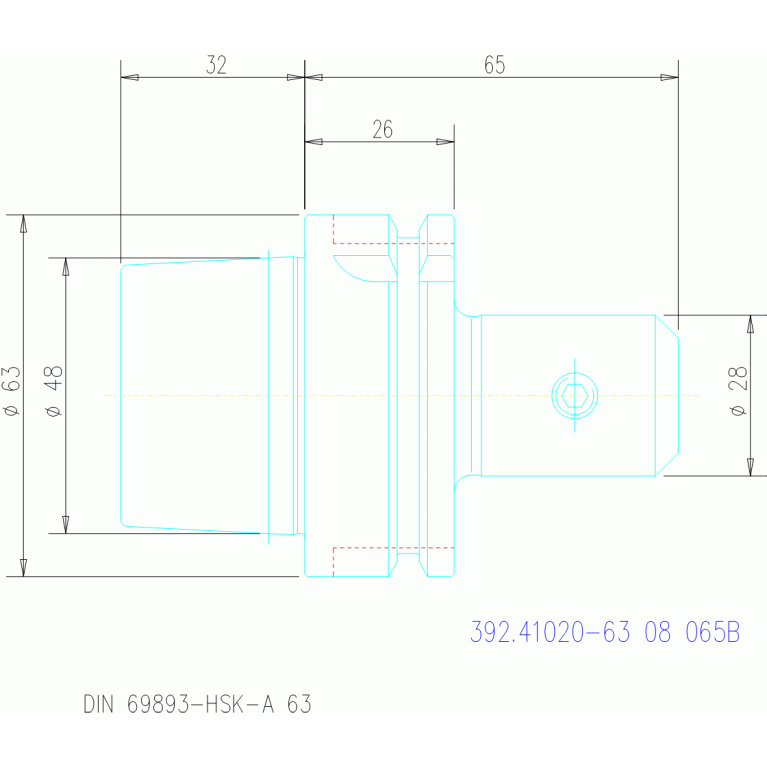

392.41020-63 08 065B

Артикул: 5759954

В наличии

0 ₽

В корзину

Описание

Характеристики

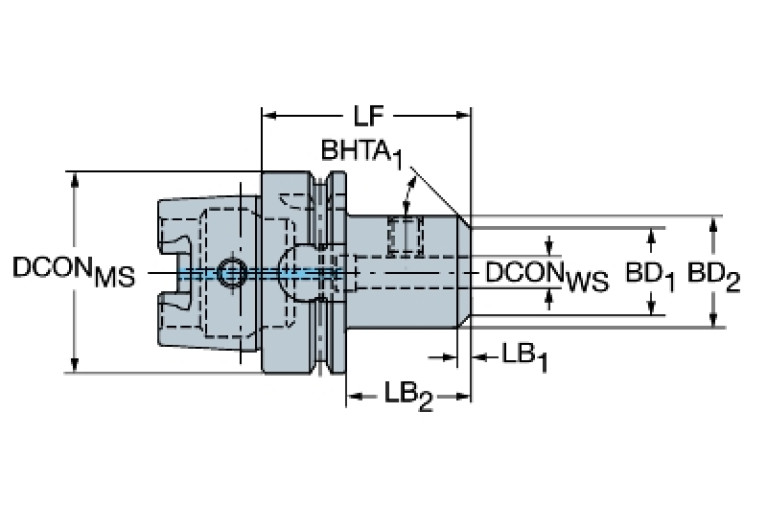

BD (Body diameter 2)

63 mm

BD (Body diameter)

28 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0080

DCINTF (Interference cutting diameter)

24 mm

DCONWS (Diameter)

8 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

8 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

HSK06300195

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

HSK01C0630$$$$

LB (Body length 1)

39 mm

LB (Length 2)

26 mm

LF (Functional length)

65 mm

LOC-01 ISO

ZYL10F8000****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0080

LOC-01 (DCONWS Diameter)

8 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00801015

LOC-02 ISO

ZYL10R3149****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-02 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-02 (CZCWS Connection size code)

0080

LOC-02 (DCONWS Diameter)

8 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL00801815

LOC-03 ISO

HSK01C0630$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

HSK Hollow taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0630

LOC-03 (DCONMS Diameter)

63 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK06300195

LPR (Protruding length)

65 mm

LS (Shank length)

36 mm

LSCX (Clamping length maximum)

36 mm

OAL (Overall length)

97 mm

RPMX (Rotational speed maximum)

20500 1/min

TA (Taper angle)

45 Degree

WT (Weight of item)

0.834 kg
