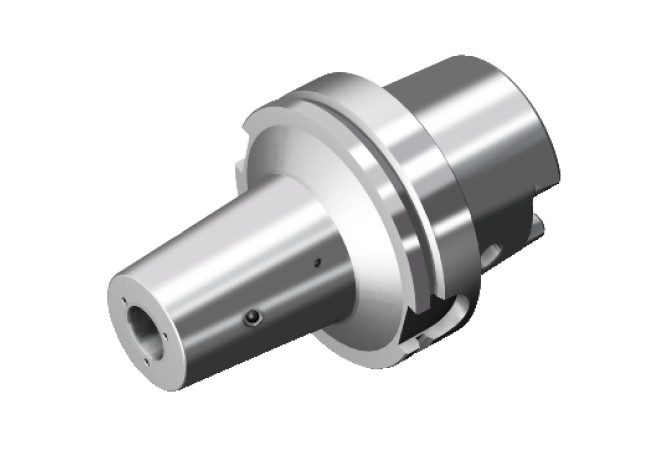

Главная Инструменты 401-01 - Converter, rotationally symmetric 392.41019Y-10012095

392.41019Y-10012095

Артикул: 6153800

В наличии

0 ₽

В корзину

Описание

Характеристики

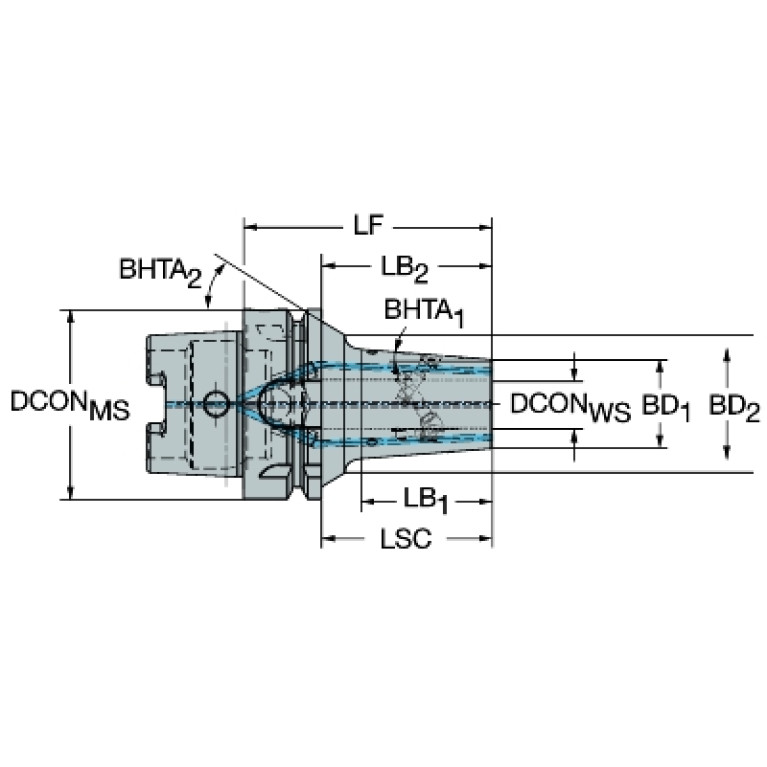

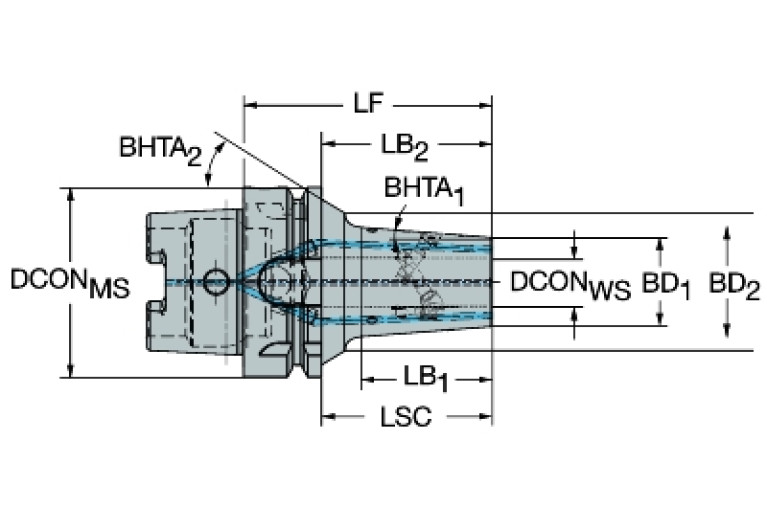

BD (Body diameter 2)

73.459 mm

BD (Body diameter 3)

100 mm

BD (Body diameter)

35.673 mm

BHTA (Body half taper angle 2)

60 Degree

BHTA (Body half taper angle 3)

0 Degree

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

4 - With Coolant exit, axial on hole circle

CXSC (Coolant exit style code) / Тип подвода СОЖ

4 - With Coolant exit, axial on hole circle

CZCWS (Connection size code)

0120

DCONWS (Diameter)

12 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

12 mm

DCP (Data chip provision)

1 - With data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

HAND (Cutting direction)

N - Neutral

Interface codes

/ J61

ISO

HSK01C1000$$$$

LB (Body length 1)

55.1 mm

LB (Length 2)

10.9 mm

LB (Length Body diameter 3)

29 mm

LF (Functional length)

95 mm

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0120

LOC-01 (DCONWS Diameter)

12 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01200315

LOC-02 ISO

ZYL03R4724****

LOC-02 (DCONWS Diameter)

12 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-03 ISO

HSK01C1000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

HSK Hollow taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

1000

LOC-03 (DCONMS Diameter)

100 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LSCN (Clamping length minimum)

36 mm

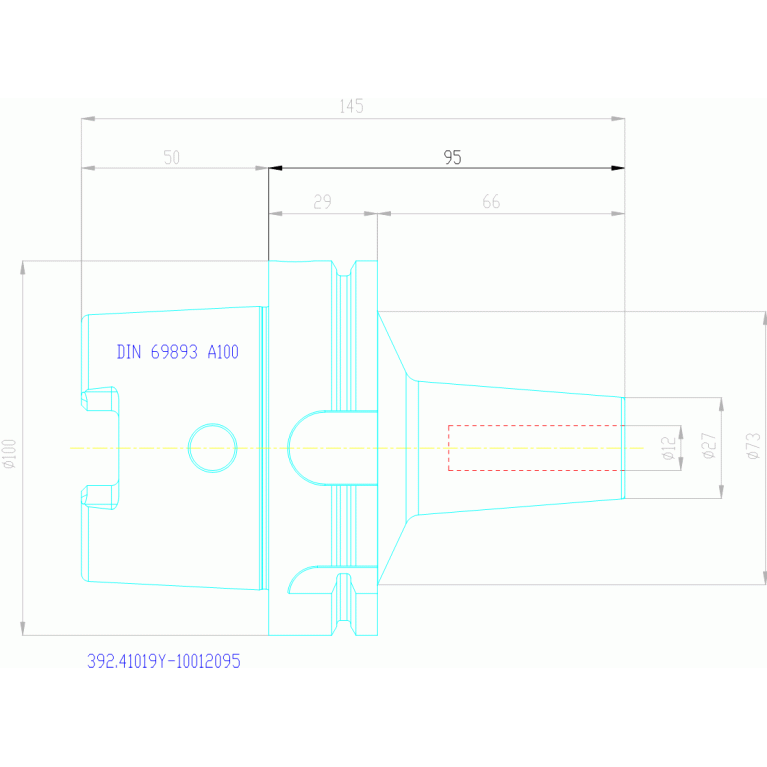

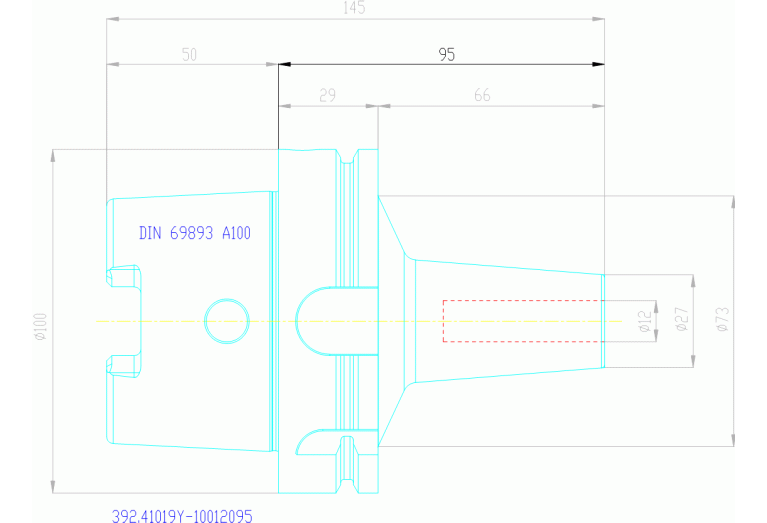

OAL (Overall length)

145 mm

Rotation (Rotation indicator)

1 - rotating tool

RPMX (Rotational speed maximum)

10000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

WT (Weight of item)

2.54 kg
