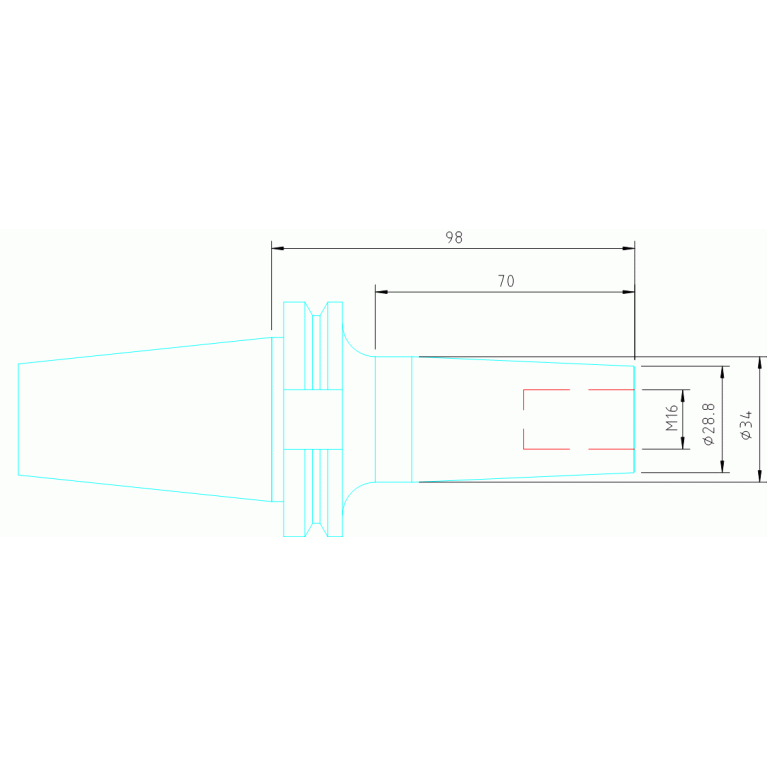

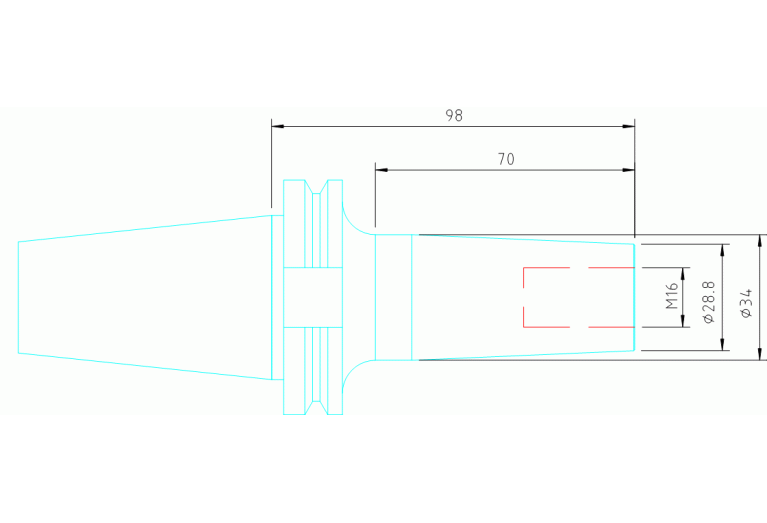

392.140T-40 16 098
392.140T-40 16 098
Артикул:
5759789
В наличии
0 ₽
Характеристики

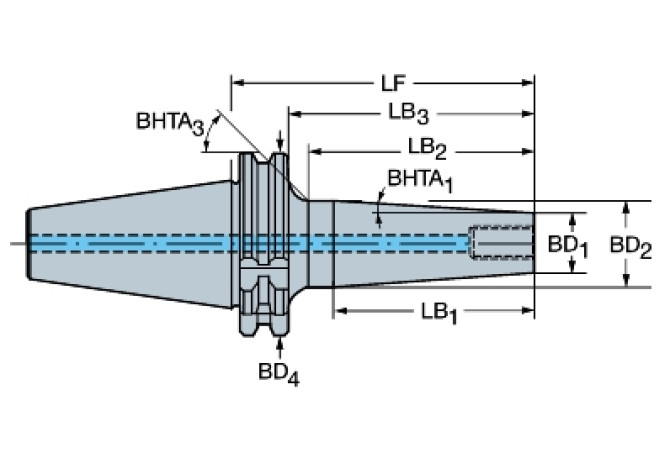

BD (Body diameter 2)
34 mm
BD (Body diameter 3)
51.8 mm
BD (Body diameter 4)
63.55 mm
BD (Body diameter)
33.004 mm
BHTA (Body half taper angle 2)
0 Degree
BHTA (Body half taper angle 3)
45 Degree
BHTA (Body half taper angle 4)
0 Degree
BLDEV (Balancing device)
CCFWS (Connection code form)
03
CCSWS (Connection code style)
5
CCTWS (Connection code type)
SAC
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0160
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DF (Flange diameter)
63.55 mm
DIN
SKG04001195
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
SKG11C0400$$$$
LB (Body length 1)
60.2 mm
LB (Length 2)
9.799999 mm
LB (Length Body diameter 3)
8.9 mm
LB (Length Body diameter 4)
19.1 mm
LF (Functional length)
98 mm
LOC-01 ISO
SAC03A0160****
LOC-01 (CCFWS Connection code form)
03
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
SAC Screw mounting SANDVIK Coromant
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0160
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAC01600395
LOC-03 ISO
SKG11C0400$$$$
LOC-03 (CCFMS Connection code form)
11
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
SKG steep taper shank
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04001195
OAL (Overall length)
166.4 mm
Rotation (Rotation indicator)
1 - rotating tool
WT (Weight of item)
1.235 kg
