Главная Инструменты 401-01 - Converter, rotationally symmetric 392.140T-40 08 058

392.140T-40 08 058

Артикул: 5759693

В наличии

0 ₽

В корзину

Описание

Характеристики

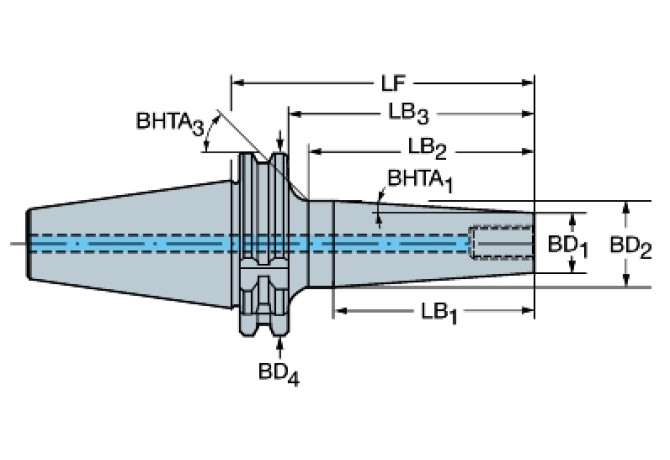

BD (Body diameter 2)

15 mm

BD (Body diameter 3)

32.8 mm

BD (Body diameter)

14.998 mm

BHTA (Body half taper angle 3)

45 Degree

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SAC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0080

DCINTF (Interference cutting diameter)

12.8 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DF (Flange diameter)

63.55 mm

DIN

SKG04001195

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

SKG11C0400$$$$

LB (Body length 1)

24.2 mm

LB (Length 2)

5.8 mm

LB (Length Body diameter 3)

8.9 mm

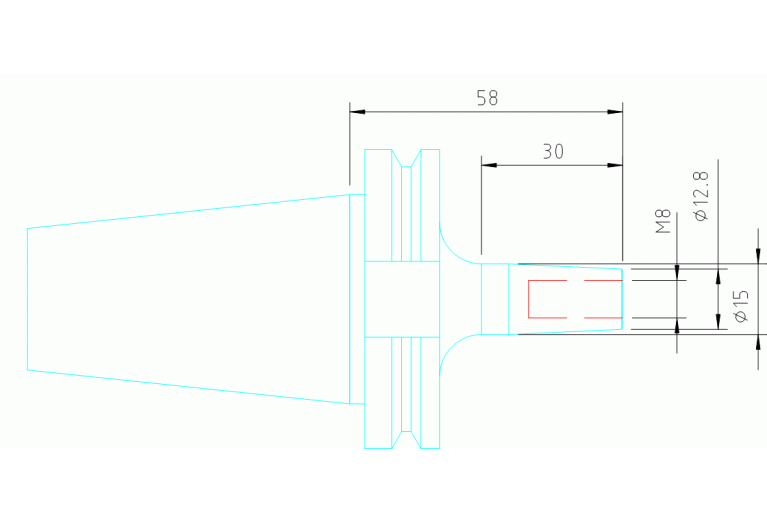

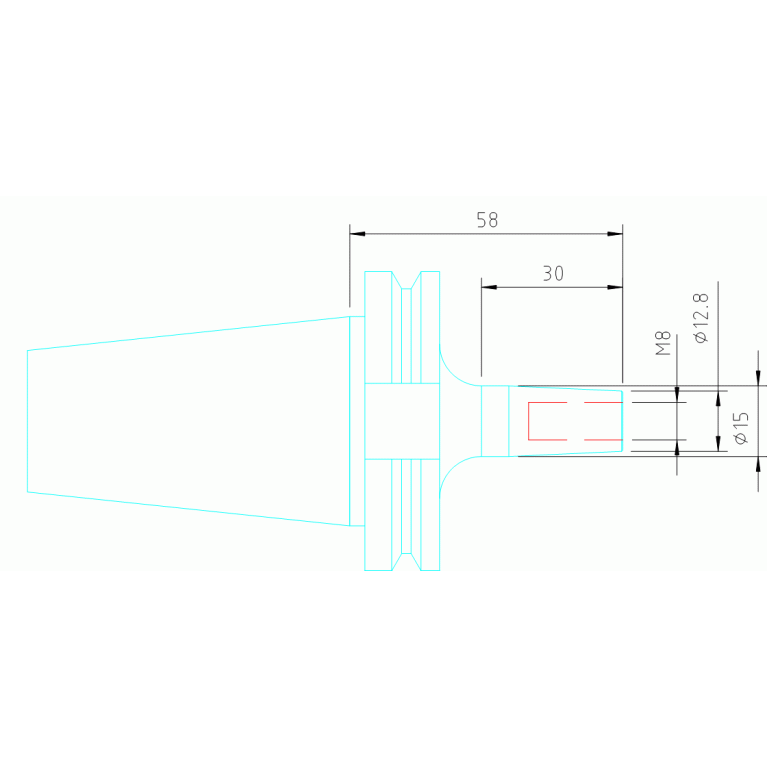

LF (Functional length)

58 mm

LOC-01 ISO

SAC03A0080****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SAC Screw mounting SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0080

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SAC00800315

LOC-03 ISO

SKG11C0400$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SKG steep taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04001195

LPR (Protruding length)

58 mm

OAL (Overall length)

126.4 mm

TA (Taper angle)

2.6 Degree

WT (Weight of item)

0.868 kg
