Главная Инструменты 401-01 - Converter, rotationally symmetric 391.60-03 63 210A

391.60-03 63 210A

Артикул: 5759822

В наличии

0 ₽

В корзину

Описание

Характеристики

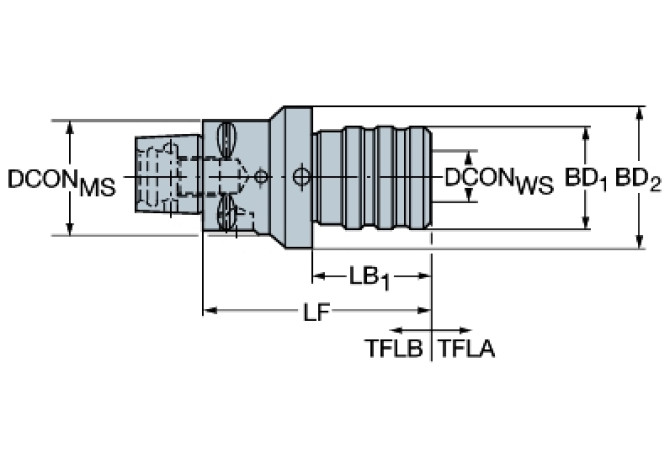

BD (Body diameter)

78 mm

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SWB

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

CZCWS (Connection size code)

0480

DCONWS (Diameter)

48 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

48 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

VLS06300185

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

VLS01C0630$$$$

LB (Body length 1)

132 mm

LF (Functional length)

162 mm

LOC-01 ISO

SWB00C0480****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SWB Quick change adapter BILZ

LOC-01 (CCUWS Connection code unit base)

8 non-dimensional size

LOC-01 (CZCWS Connection size code)

0480

LOC-01 (DCONWS Diameter)

48 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SWB04800085

LOC-02 ISO

SWB01C0480****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

SWB Quick change adapter BILZ

LOC-02 (CCUWS Connection code unit base)

8 non-dimensional size

LOC-02 (CZCWS Connection size code)

0480

LOC-02 (DCONWS Diameter)

48 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SWB04800185

LOC-03 ISO

VLS01C0630$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

VLS Varilock System SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0630

LOC-03 (DCONMS Diameter)

63 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VLS06300185

LPR (Protruding length)

162 mm

OAL (Overall length)

180 mm

RPMX (Rotational speed maximum)

8000 1/min

WT (Weight of item)

3.74 kg
