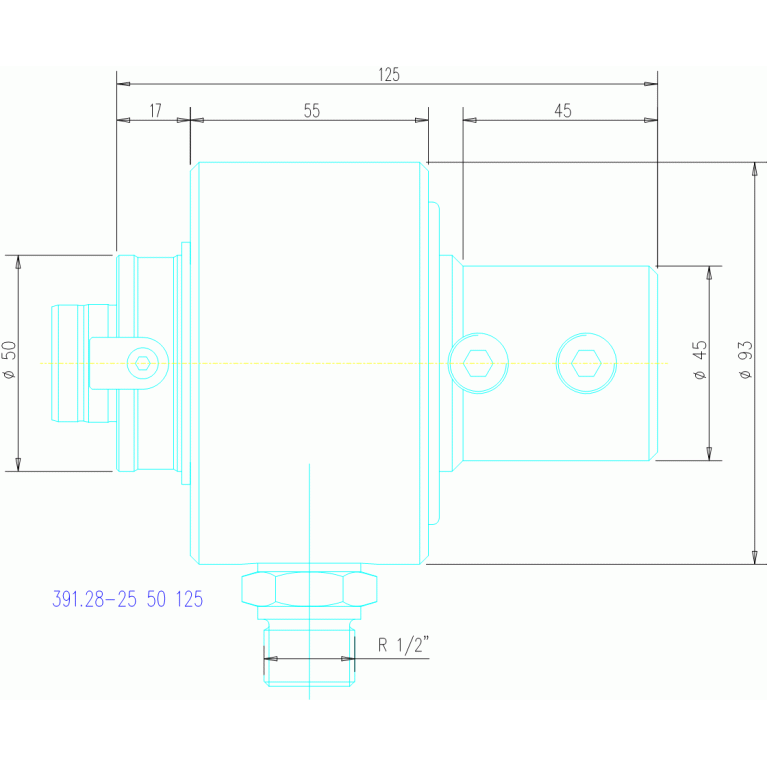

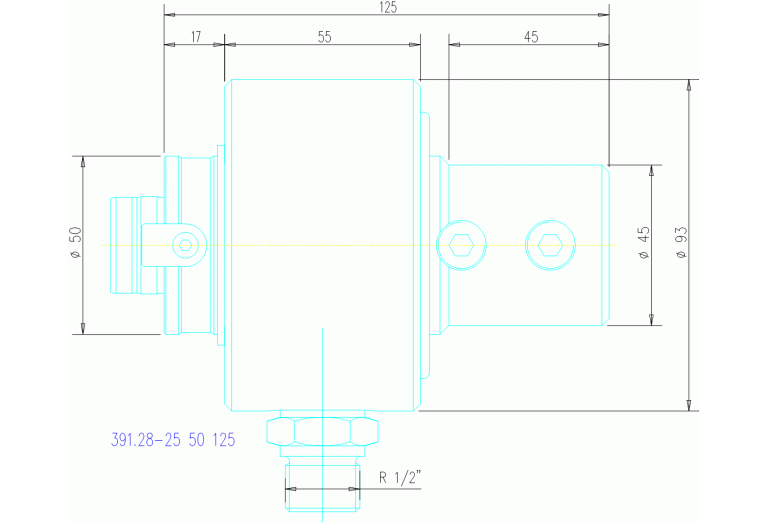

Главная Инструменты 401-01 - Converter, rotationally symmetric 391.28-25 50 125

391.28-25 50 125

Артикул: 5759452

В наличии

0 ₽

В корзину

Описание

Характеристики

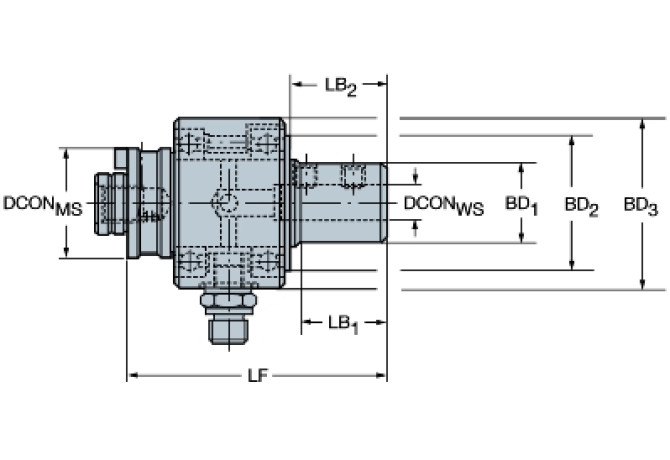

BD (Body diameter 2)

74.6 mm

BD (Body diameter 3)

93 mm

BD (Body diameter)

45 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

5 - With coolant supply (entry) in radial direction in front of

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0250

DCONWS (Diameter)

25 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

25 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

VLS05000195

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

VLS01C0500$$$$

LB (Body length 1)

45 mm

LB (Length 2)

8 mm

LB (Length Body diameter 3)

72 mm

LF (Functional length)

125 mm

LOC-01 ISO

ZYL11G2500****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0250

LOC-01 (DCONWS Diameter)

25 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL02501115

LOC-02 ISO

ZYL11R9842****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-02 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-02 (CZCWS Connection size code)

0250

LOC-02 (DCONWS Diameter)

25 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL09841135

LOC-03 ISO

VLS01C0500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

VLS Varilock System SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0500

LOC-03 (DCONMS Diameter)

50 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VLS05000195

LPR (Protruding length)

125 mm

OAL (Overall length)

140 mm

WT (Weight of item)

2.68 kg
