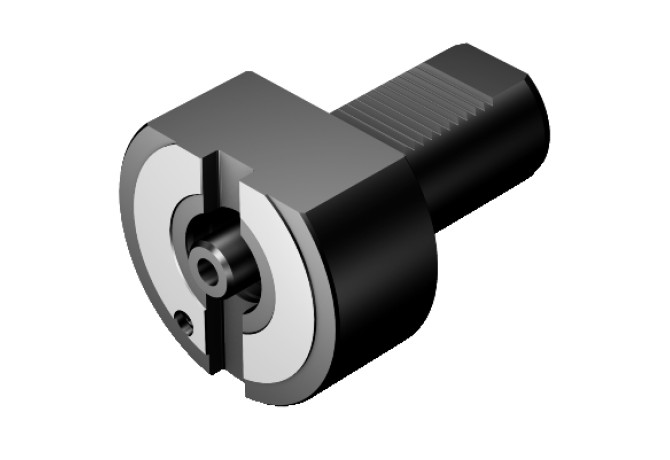

Главная Инструменты 401-02 - Converter, stationary VL80-NC3000-V50

VL80-NC3000-V50

Артикул: 6764225

В наличии

0 ₽

В корзину

Описание

Характеристики

BD (Body diameter)

98 mm

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

VLS

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

7 - Coolant entry, decentral and axially concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0800

DCONWS (Diameter)

50 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

50 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYV05000195

HAND (Cutting direction)

N - Neutral

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

ZYV01C0500$$$$

LB (Body length 1)

15 mm

LF (Functional length)

45 mm

LOC-01 ISO

VLS01C0800****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

VLS Varilock System SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0800

LOC-01 (DCONWS Diameter)

50 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VLS08000195

LOC-03 ISO

ZYV01C0500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYV cylindrical shank VDI type (serrated)

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0500

LOC-03 (DCONMS Diameter)

50 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYV05000195

LPR (Protruding length)

45 mm

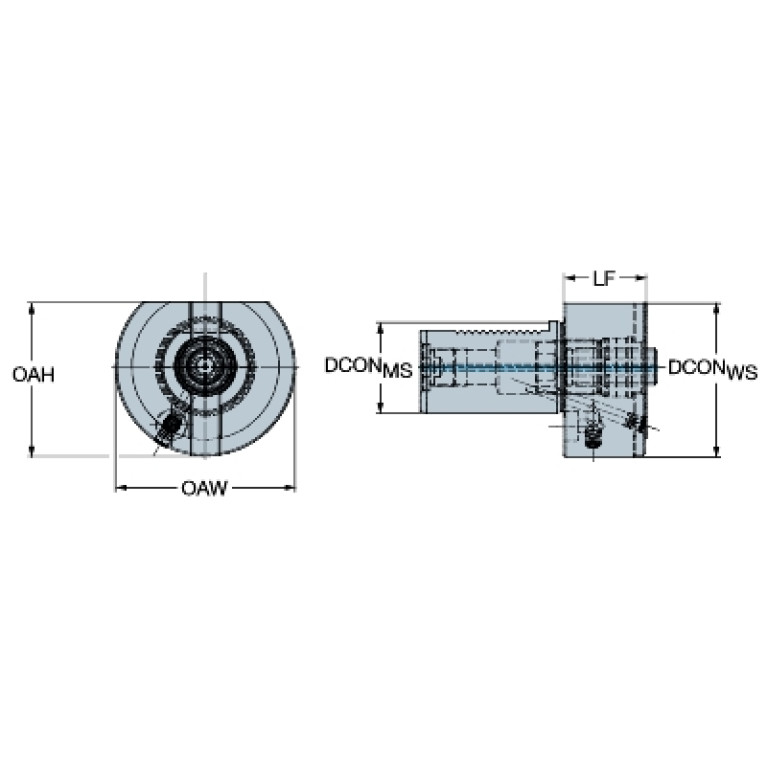

OAH (Overall height)

84 mm

OAL (Overall length)

123 mm

OAW (Overall width)

98 mm

WF (Functional width)

0 mm

WT (Weight of item)

4.351 kg
