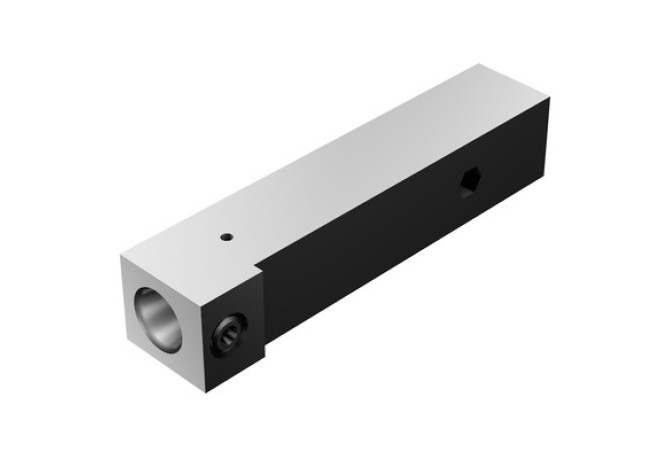

Главная Инструменты 401-02 - Converter, stationary QSM12-N08

QSM12-N08

Артикул: 8631370

В наличии

0 ₽

В корзину

Описание

Характеристики

CCFWS (Connection code form)

CCONWS (Connection count workpiece side)

CCSWS (Connection code style)

CCTWS (Connection code type)

SQC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

012R

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2024

DIN

VKT08080135

HAND (Cutting direction)

N - Neutral

HF (Functional height)

6.7 mm

Interface codes

J6 / J61

ISO

VKT01B0808$$$$

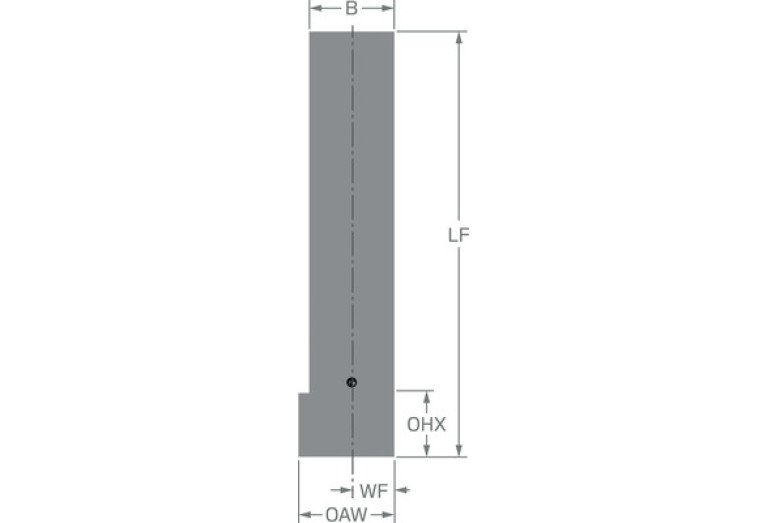

LF (Functional length)

80 mm

LOC-01 ISO

SQC01C012R****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SQC

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

012R

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SQC012R0195

LOC-02 ISO

SQC01C012L****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SQC012L0195

LOC-03 ISO

VKT01B0808$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

VKT Square mounting

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

0808

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT08080135

LS (Shank length)

68 mm

LSCX (Clamping length maximum)

68 mm

OAH (Overall height)

12.7 mm

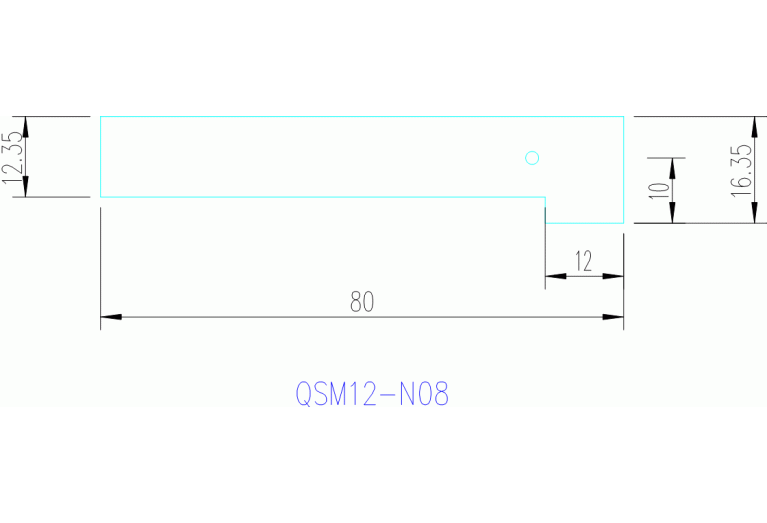

OAL (Overall length)

80 mm

OAW (Overall width)

16.35 mm

WF (Functional width)

6 mm

WT (Weight of item)

0.093 kg
