Главная Инструменты 401-02 - Converter, stationary MBG-12C-09R

MBG-12C-09R

Артикул: 6010162

В наличии

0 ₽

В корзину

Описание

Характеристики

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

BKC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

CZCWS (Connection size code)

0090

DCONWS (Diameter)

9 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

9 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

VKT12120125

HAND (Cutting direction)

R - Right

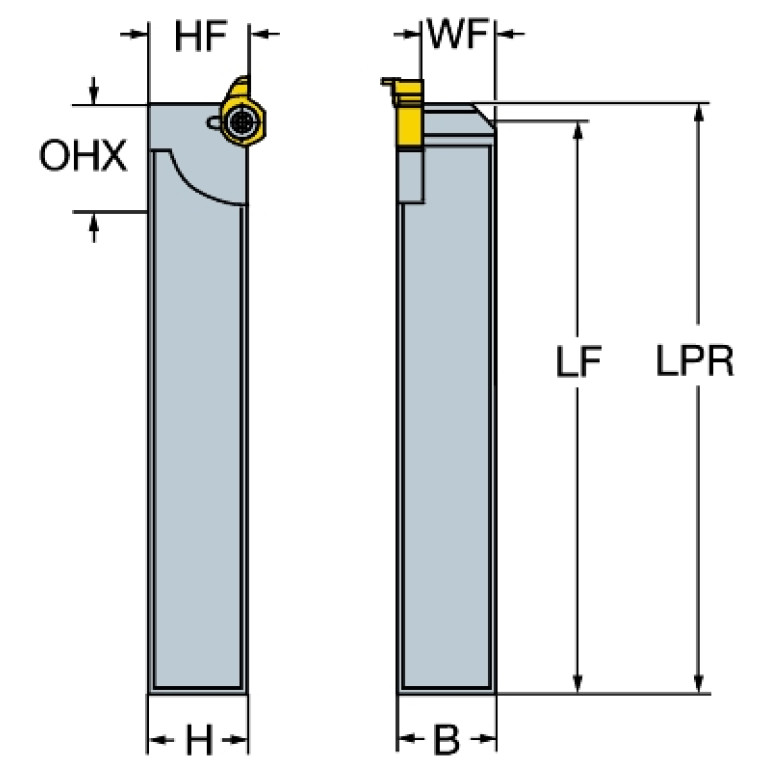

HF (Functional height)

19.05 mm

Interface codes

J6 / J61

ISO

VKT01B1212$$$$

LF (Functional length)

115.5 mm

LOC-01 ISO

BKC01C0090****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

BKC drill head mounting SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

8 non-dimensional size

LOC-01 (CZCWS Connection size code)

0090

LOC-01 (DCONWS Diameter)

9 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

BKC00900185

LOC-02 ISO

BKC01CF09L****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

BKC drill head mounting SANDVIK Coromant

LOC-02 (CCUWS Connection code unit base)

8 non-dimensional size

LOC-02 (CZCWS Connection size code)

0090

LOC-02 (DCONWS Diameter)

9 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

BKCF09L0185

LOC-03 ISO

VKT01B1212$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

VKT Square mounting

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

1212

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT12120125

LPR (Protruding length)

120 mm

LS (Shank length)

100 mm

LSCX (Clamping length maximum)

100 mm

OAL (Overall length)

120 mm

WF (Functional width)

22.15 mm

WT (Weight of item)

0.31 kg
