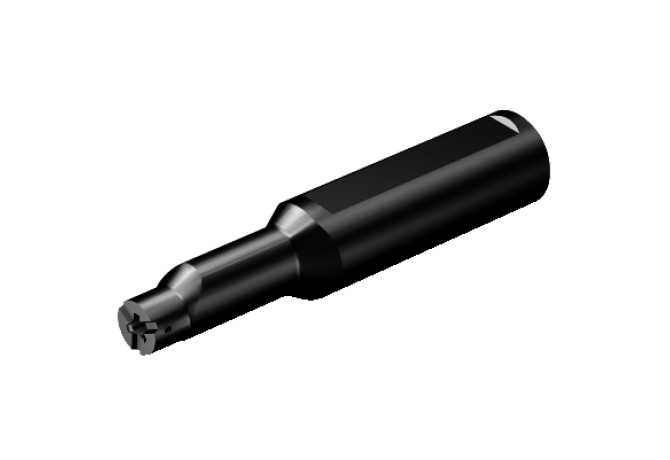

Главная Инструменты 401-02 - Converter, stationary MB-E12-48-07

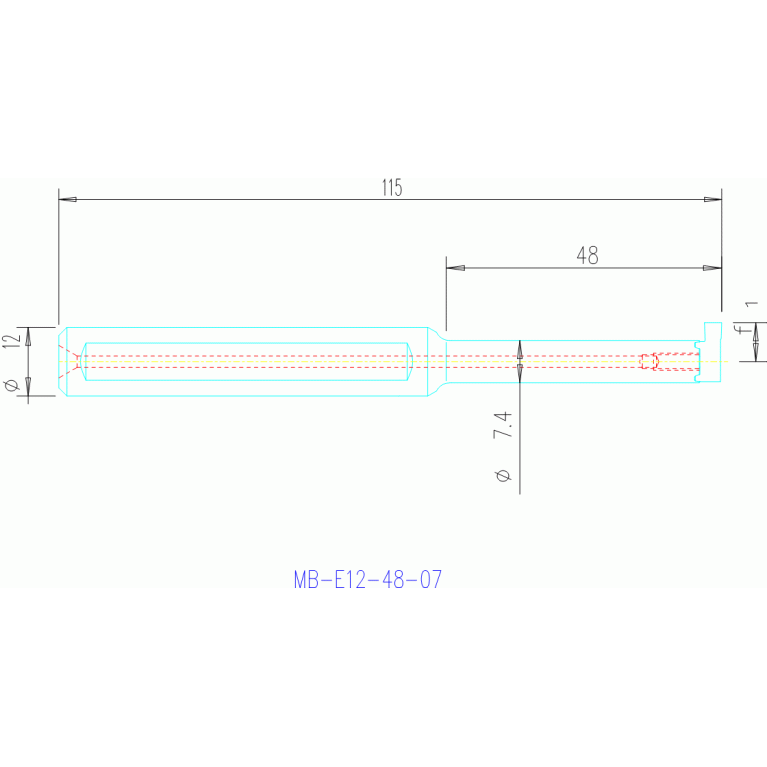

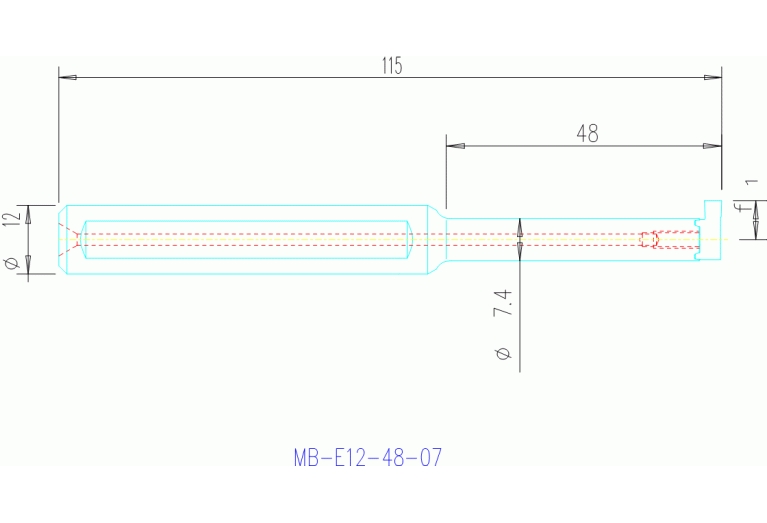

MB-E12-48-07

Артикул: 5735498

В наличии

0 ₽

В корзину

Описание

Характеристики

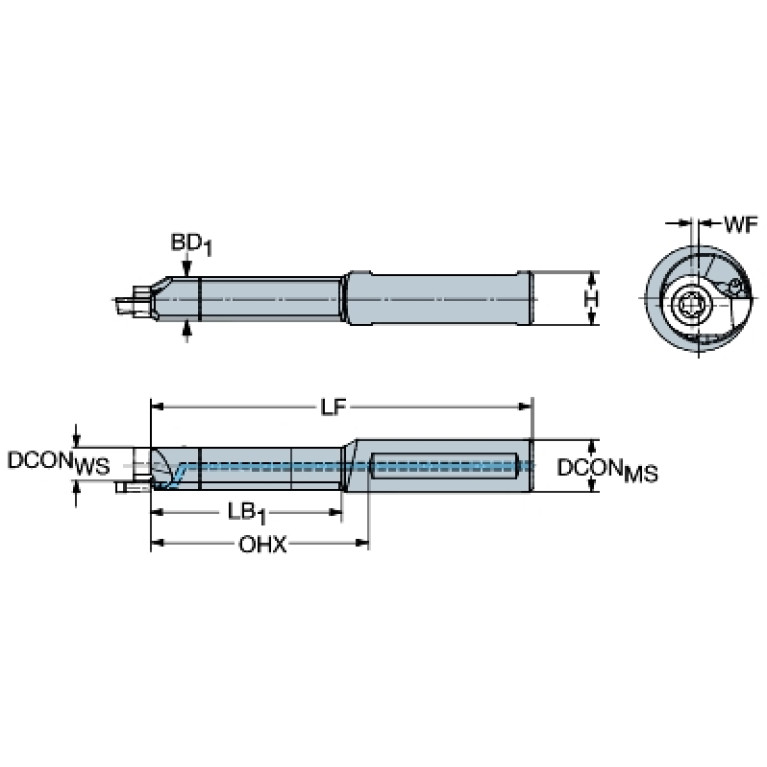

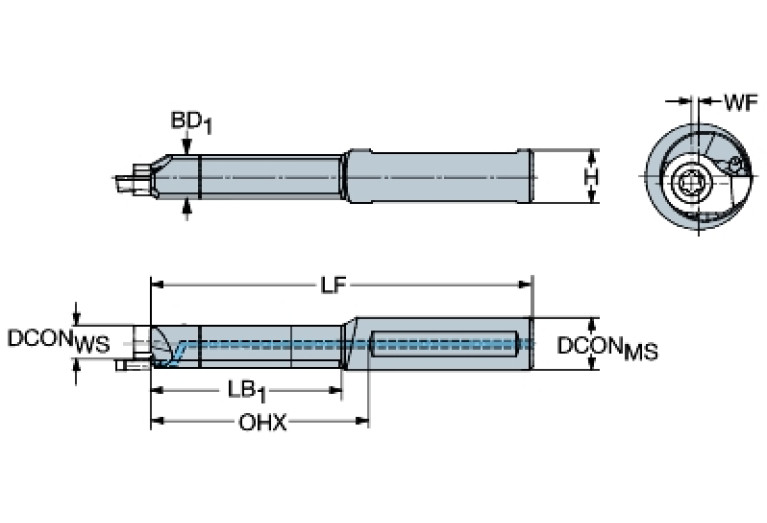

BD (Body diameter)

7.4 mm

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

BKC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

CZCWS (Connection size code)

0070

DCONWS (Diameter)

12 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

12 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL01202215

HAND (Cutting direction)

N - Neutral

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

ZYL22G1200$$$$

LB (Body length 1)

44.1 mm

LF (Functional length)

111.1 mm

LOC-01 ISO

BKC01C0070****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

BKC drill head mounting SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0070

LOC-01 (DCONWS Diameter)

12 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

BKC00700195

LOC-02 ISO

BKC01CF07L****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

BKC drill head mounting SANDVIK Coromant

LOC-02 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-02 (CZCWS Connection size code)

0070

LOC-02 (DCONWS Diameter)

12 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

BKCF07L0195

LOC-03 ISO

ZYL22G1200$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0120

LOC-03 (DCONMS Diameter)

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01202215

LPR (Protruding length)

50 mm

LS (Shank length)

63 mm

LSCX (Clamping length maximum)

63 mm

OAL (Overall length)

111.1 mm

WF (Functional width)

0 mm

WT (Weight of item)

0.14 kg
