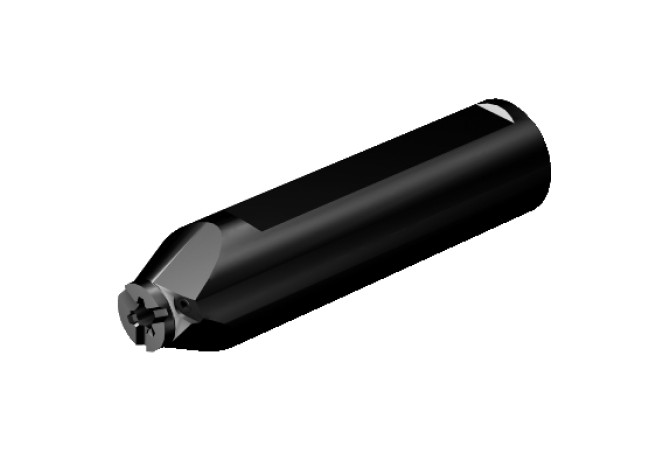

Главная Инструменты 401-02 - Converter, stationary MB-A075-02-11L-HP

MB-A075-02-11L-HP

MB-A075-02-11L-HP MB-A075-02-11L-HP MB-A075-02-11L-HP MB-A075-02-11L-HP

MB-A075-02-11L-HP

SV - Sandvik-Coromant
Артикул: 6350773
В наличии
0 ₽
В корзину
Описание
Характеристики

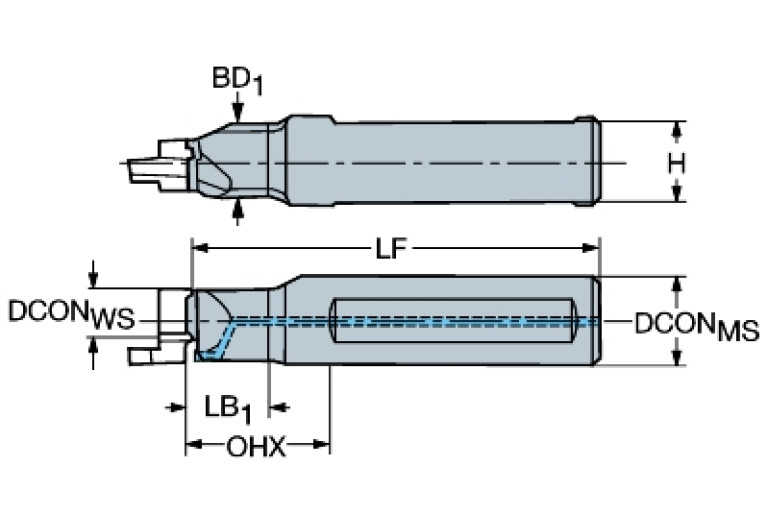

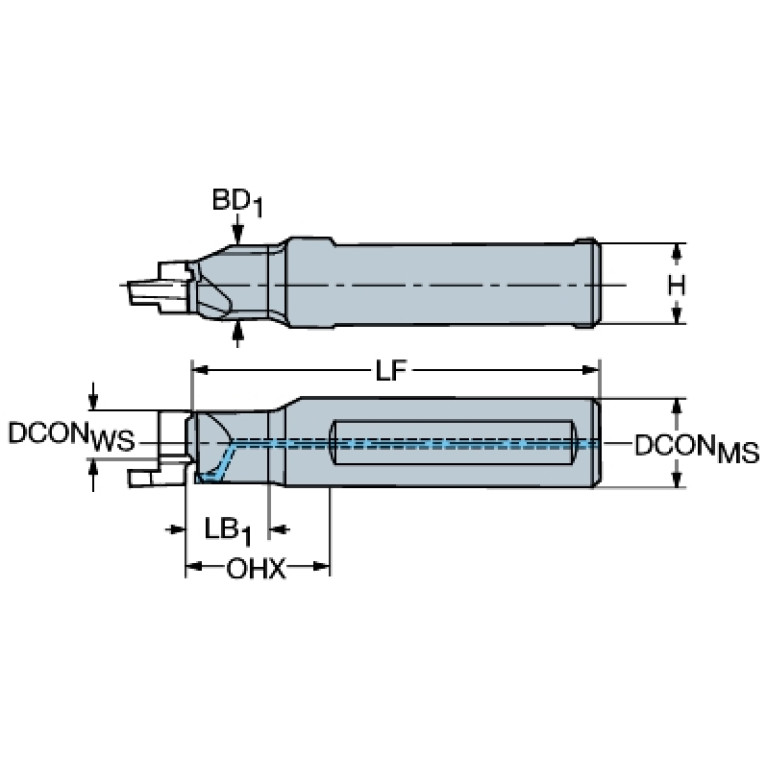

BD (Body diameter)
11 mm
CCFWS (Connection code form)
01
CCSWS (Connection code style)
5
CCTWS (Connection code type)
BKC
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0110
DCONWS (Diameter)
19.05 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
19.05 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL07502235
HAND (Cutting direction)
L - Left
HF (Functional height)
0 mm
Interface codes
J6 / J61
ISO
ZYL22R7500$$$$
LB (Body length 1)
5.9 mm
LF (Functional length)
79.4 mm
LOC-01 ISO
BKC01C0110****
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
BKC drill head mounting SANDVIK Coromant
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0110
LOC-01 (DCONWS Diameter)
19.05 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
BKC01100195
LOC-03 ISO
ZYL22R7500$$$$
LOC-03 (CCFMS Connection code form)
22
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
0750
LOC-03 (DCONMS Diameter)
19.05 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL07502235
LPR (Protruding length)
5.9 mm
LS (Shank length)
73.5 mm
LSCX (Clamping length maximum)
73.5 mm
OAL (Overall length)
79.4 mm
WF (Functional width)
0 mm
WT (Weight of item)
0.26 kg
