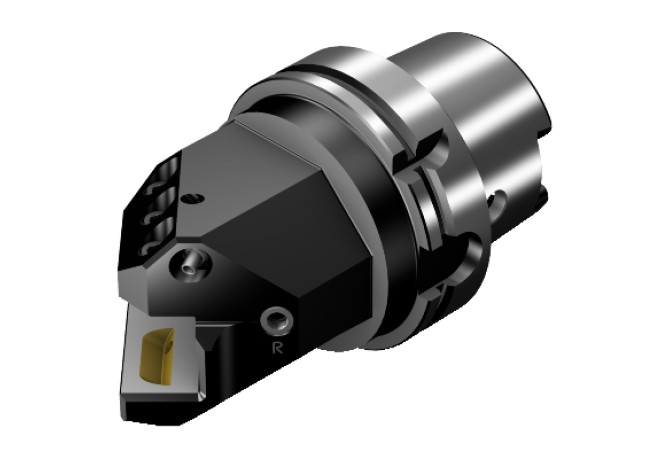

Главная Инструменты 401-02 - Converter, stationary HT10-ASHL45-122-25HP

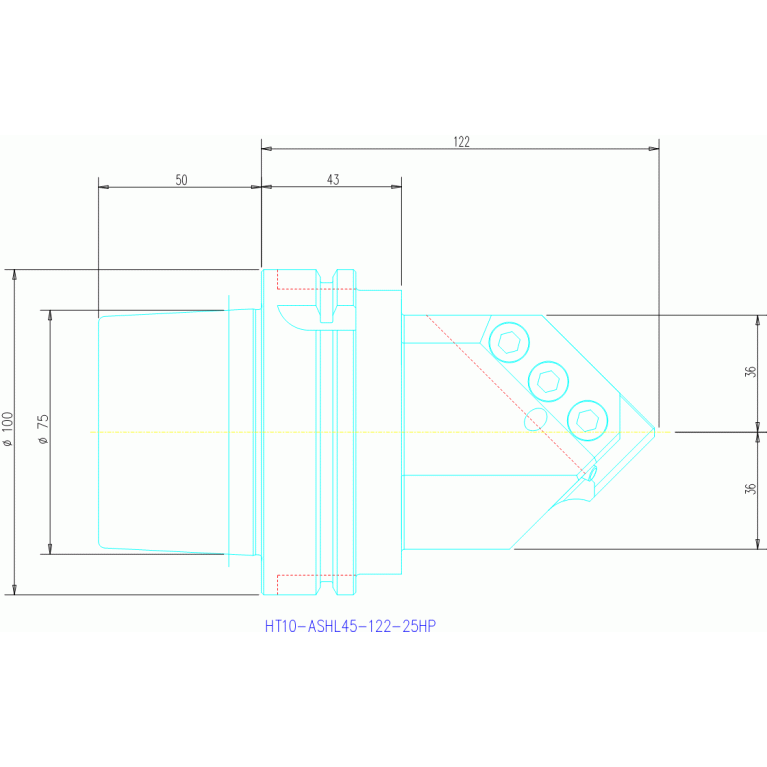

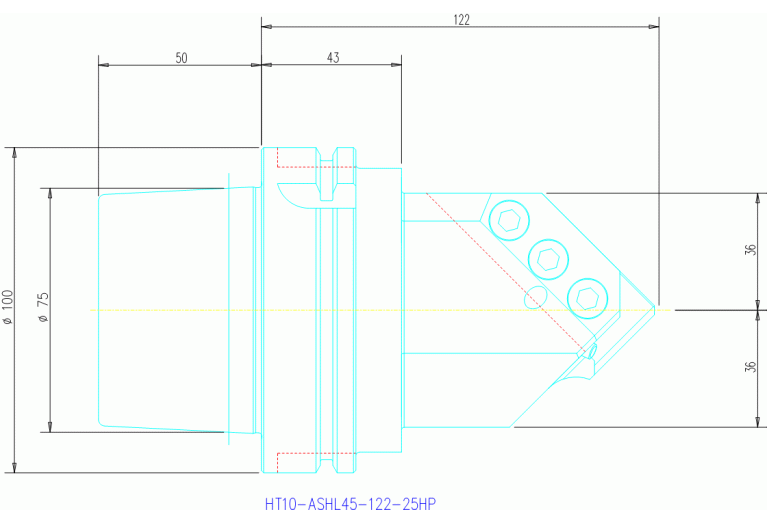

HT10-ASHL45-122-25HP

Артикул: 7086862

В наличии

0 ₽

В корзину

Описание

Характеристики

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

VKT

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CXSC (Coolant exit style code) / Тип подвода СОЖ

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CZCWS (Connection size code)

2516

DCP (Data chip provision)

1 - With data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

HSK10000795

HAND (Cutting direction)

L - Left

HF (Functional height)

25 mm

Interface codes

J6 / J61

ISO

HSK07C1000$$$$

LF (Functional length)

122 mm

LOC-01 ISO

VKT01A2516****VKT01A2527****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

VKT Square mounting

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

2516

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VKT25160115VKT25270115

LOC-03 ISO

HSK07C1000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

HSK Hollow taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

1000

LOC-03 (DCONMS Diameter)

100 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK10000795

LPR (Protruding length)

122 mm

OAH (Overall height)

99.93 mm

OAL (Overall length)

171.9 mm

OAW (Overall width)

99.93 mm

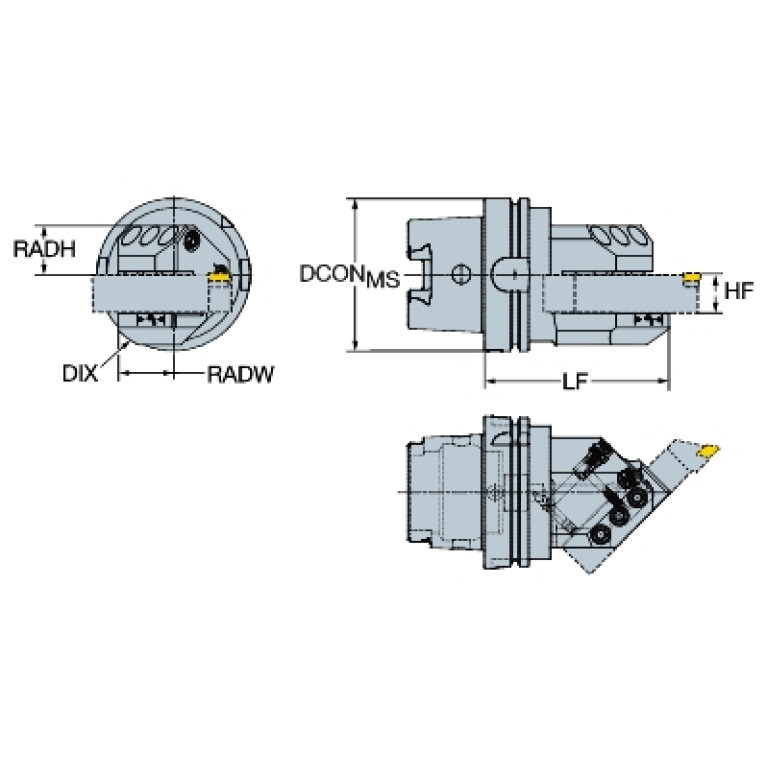

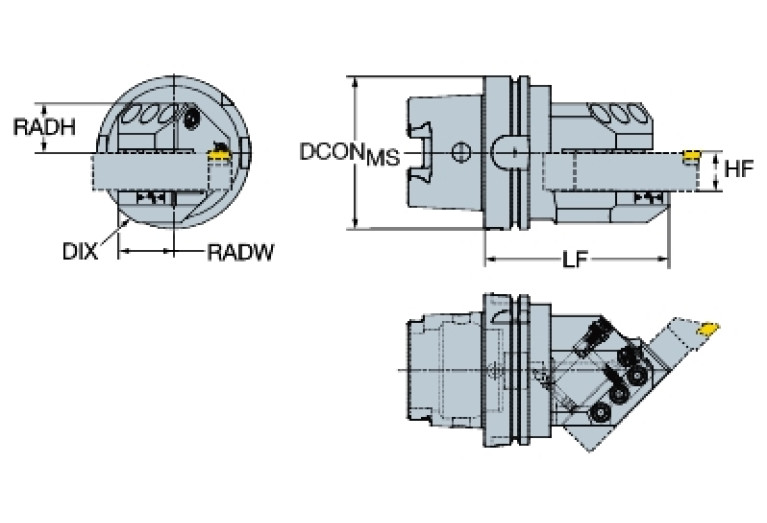

RADH (Radial height)

46 mm

RADW (Radial width)

36 mm

WF (Functional width)

0 mm

WT (Weight of item)

4.375 kg
