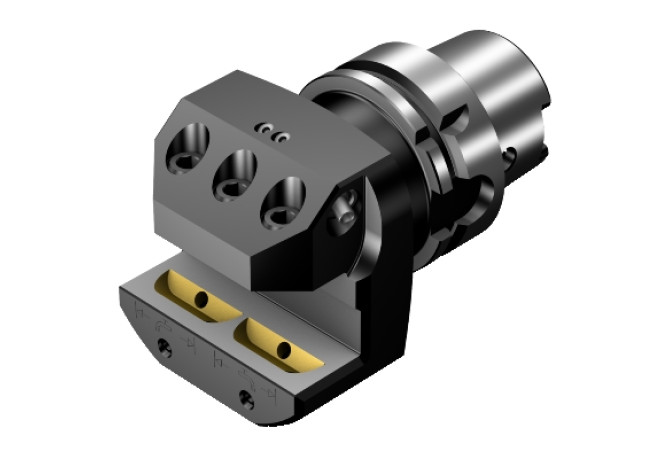

Главная Инструменты 401-02 - Converter, stationary HT06-ASHA-090-16AHP

HT06-ASHA-090-16AHP

Артикул: 7086865

В наличии

0 ₽

В корзину

Описание

Характеристики

CCFWS (Connection code form)

CCONWS (Connection count workpiece side)

CCSWS (Connection code style)

CCTWS (Connection code type)

VKT

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CXSC (Coolant exit style code) / Тип подвода СОЖ

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CZCWS (Connection size code)

1610

DCP (Data chip provision)

1 - With data chip

Delivery state valid from

12/1/2023

DIN

HSK06300795

HAND (Cutting direction)

N - Neutral

HF (Functional height)

25.4 mm

Interface codes

J6 / J61

ISO

HSK07C0630$$$$

LF (Functional length)

64.6 mm

LOC-01 ISO

VKT01B1610****VKT01B1618****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

VKT Square mounting

LOC-01 (CCUWS Connection code unit base)

3 Inch with coolant

LOC-01 (CZCWS Connection size code)

1610

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VKT16100135VKT16180135

LOC-03 ISO

HSK07C0630$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

HSK Hollow taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0630

LOC-03 (DCONMS Diameter)

63 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK06300795

LPR (Protruding length)

90 mm

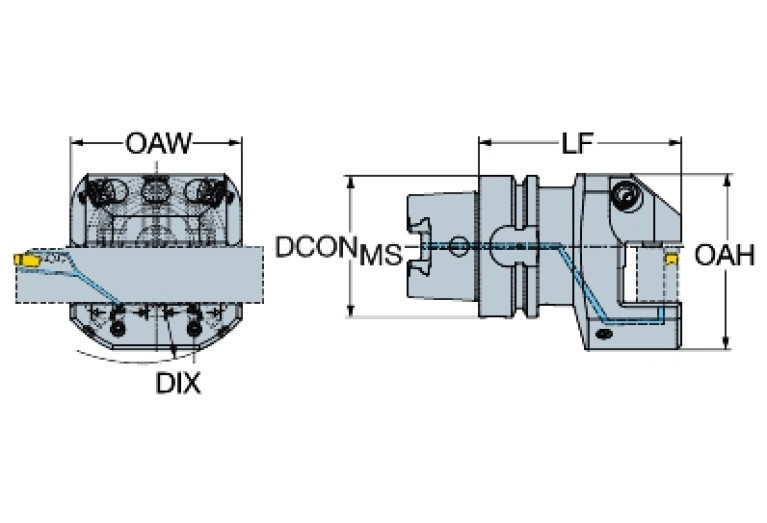

OAH (Overall height)

78 mm

OAL (Overall length)

121.9 mm

OAW (Overall width)

76 mm

RADH (Radial height)

46 mm

RADW (Radial width)

38 mm

WF (Functional width)

38 mm

WT (Weight of item)

2.26 kg
