Главная Инструменты 401-02 - Converter, stationary CXS-A22-06

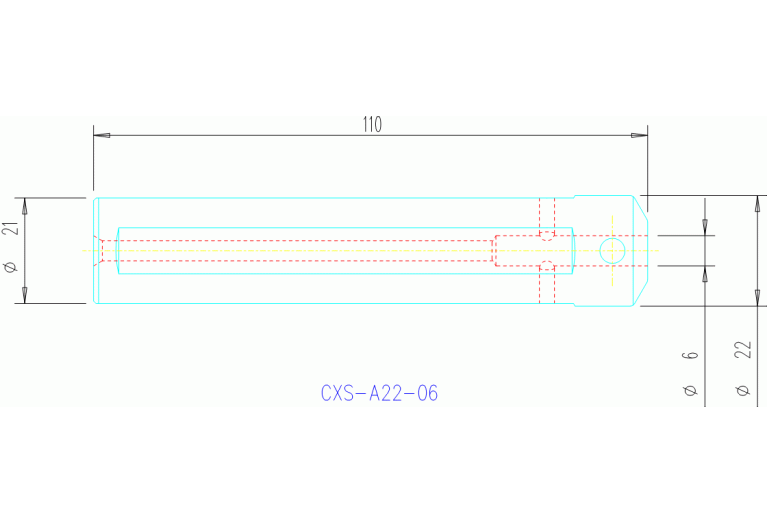

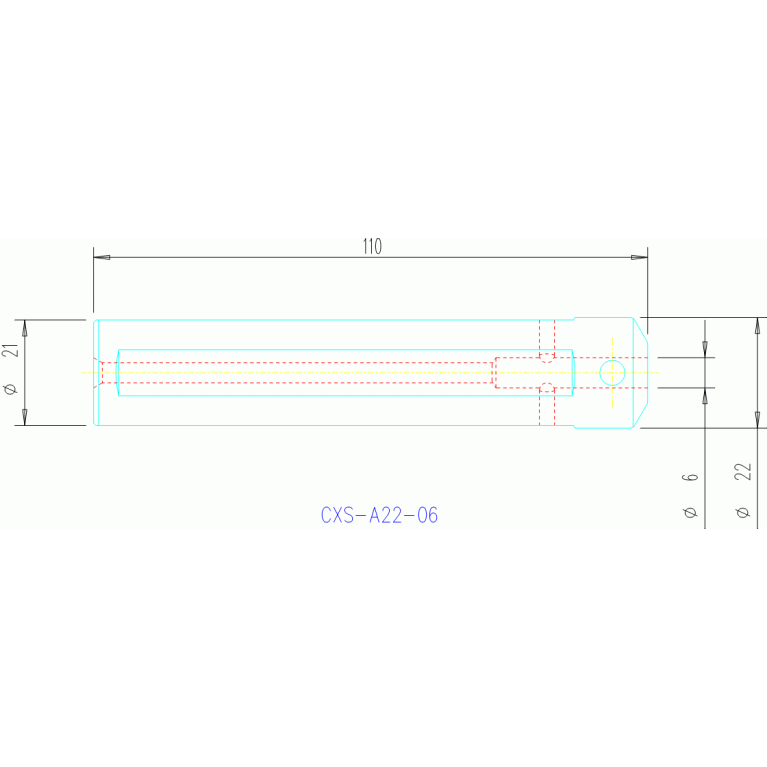

CXS-A22-06

Артикул: 5726543

В наличии

0 ₽

В корзину

Описание

Характеристики

BD (Body diameter)

22 mm

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0060

DCONWS (Diameter)

6 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

6 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL02202315

HAND (Cutting direction)

N - Neutral

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

ZYL23G2200$$$$

LB (Body length 1)

110 mm

LF (Functional length)

110 mm

LOC-01 ISO

ZYL54F6000****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0060

LOC-01 (DCONWS Diameter)

6 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00605415

LOC-02 ISO

ZYL54R2362****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-02 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-02 (CZCWS Connection size code)

0060

LOC-02 (DCONWS Diameter)

6 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL02365435

LOC-03 ISO

ZYL23G2200$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0220

LOC-03 (DCONMS Diameter)

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02202315

LPR (Protruding length)

110 mm

LS (Shank length)

96 mm

LSCX (Clamping length maximum)

96 mm

OAH (Overall height)

22 mm

OAL (Overall length)

110 mm

WF (Functional width)

0 mm

WT (Weight of item)

0.28 kg
