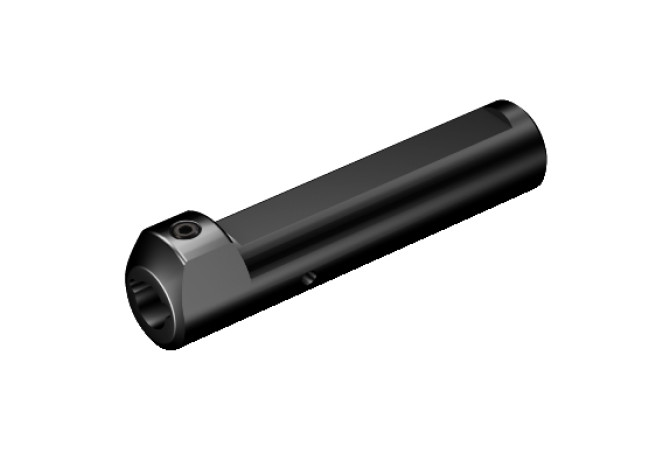

CXS-A0750-04
CXS-A0750-04
Артикул:
5726377
В наличии
0 ₽

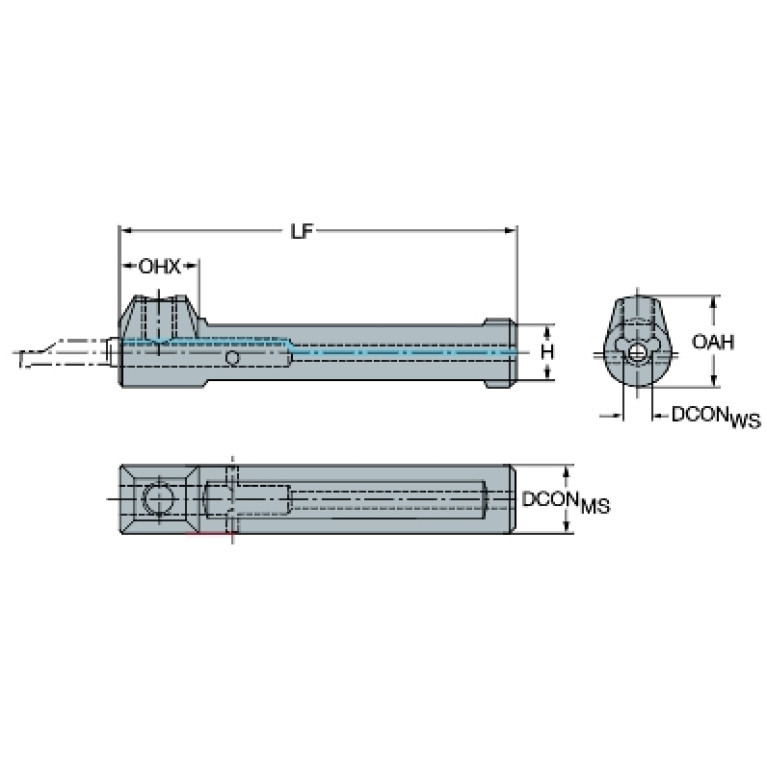

Характеристики
BD (Body diameter)
19.05 mm
CCFWS (Connection code form)
54
CCSWS (Connection code style)
5
CCTWS (Connection code type)
ZYL
CCUWS (Connection code unit base)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0040
DCONWS (Diameter)
4 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
4 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL07502335
HAND (Cutting direction)
N - Neutral
HF (Functional height)
0 mm
Interface codes
J6 / J61
ISO
ZYL23R7500$$$$
LB (Body length 1)
110 mm
LF (Functional length)
110 mm
LOC-01 ISO
ZYL54F4000****
LOC-01 (CCFWS Connection code form)
54
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
ZYL cylindrical shank
LOC-01 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-01 (CZCWS Connection size code)
0040
LOC-01 (DCONWS Diameter)
4 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00405415
LOC-02 ISO
ZYL54R1574****
LOC-02 (CCFWS Connection code form)
54
LOC-02 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-02 (CCTWS Connection code type)
ZYL cylindrical shank
LOC-02 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-02 (CZCWS Connection size code)
0040
LOC-02 (DCONWS Diameter)
4 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
ZYL01575435
LOC-03 ISO
ZYL23R7500$$$$
LOC-03 (CCFMS Connection code form)
23
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
0750
LOC-03 (DCONMS Diameter)
19.05 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL07502335
LPR (Protruding length)
110 mm
LS (Shank length)
96 mm
LSCX (Clamping length maximum)
96 mm
OAH (Overall height)
20 mm
OAL (Overall length)
110 mm
WF (Functional width)
0 mm
WT (Weight of item)
0.252 kg
