Главная Инструменты 401-02 - Converter, stationary CXS-A0625-08

CXS-A0625-08

Артикул: 6350749

В наличии

0 ₽

В корзину

Описание

Характеристики

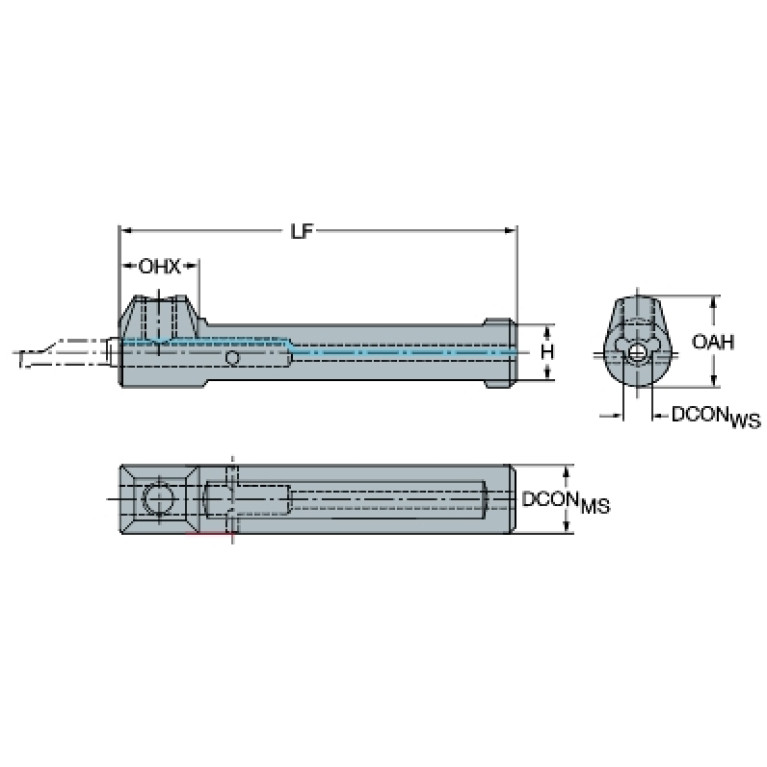

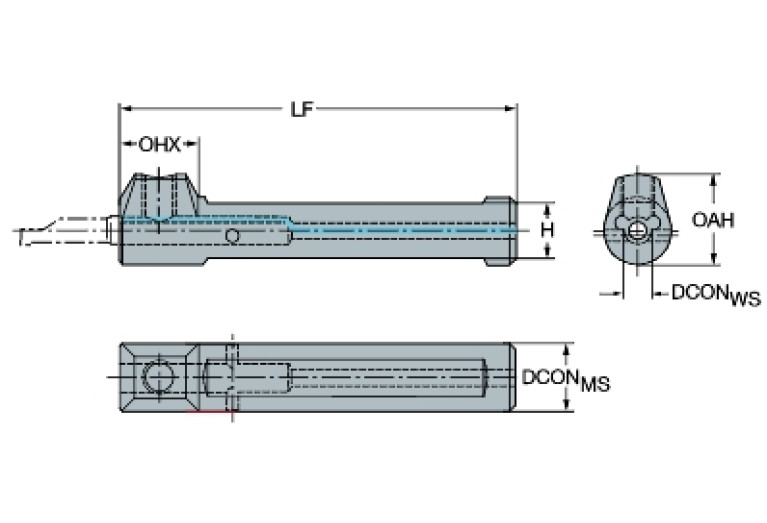

BD (Body diameter)

15.875 mm

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0080

DCONWS (Diameter)

8 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

8 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL06252235

HAND (Cutting direction)

N - Neutral

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

ZYL22R6250$$$$

LB (Body length 1)

75 mm

LF (Functional length)

75 mm

LOC-01 ISO

ZYL54F8000****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0080

LOC-01 (DCONWS Diameter)

8 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00805415

LOC-02 ISO

ZYL54R3149****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-02 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-02 (CZCWS Connection size code)

0080

LOC-02 (DCONWS Diameter)

8 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL03145435

LOC-03 ISO

ZYL22R6250$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

0625

LOC-03 (DCONMS Diameter)

15.875 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL06252235

LPR (Protruding length)

75 mm

LS (Shank length)

76 mm

LSCX (Clamping length maximum)

76 mm

OAH (Overall height)

19.44 mm

OAL (Overall length)

75 mm

WF (Functional width)

0 mm

WT (Weight of item)

0.13 kg
