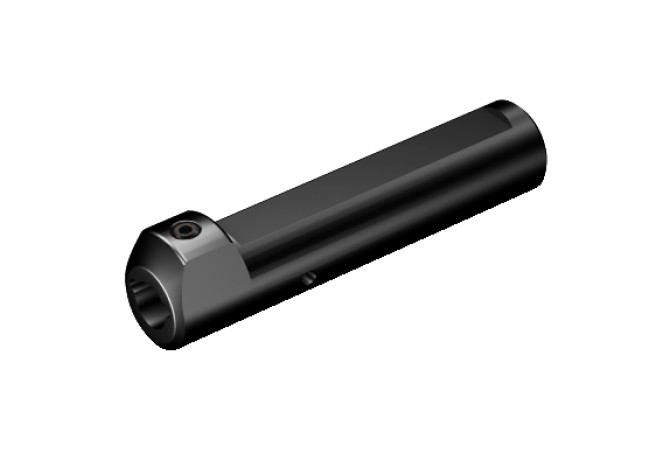

Главная Инструменты 401-02 - Converter, stationary CXS-A0500-05

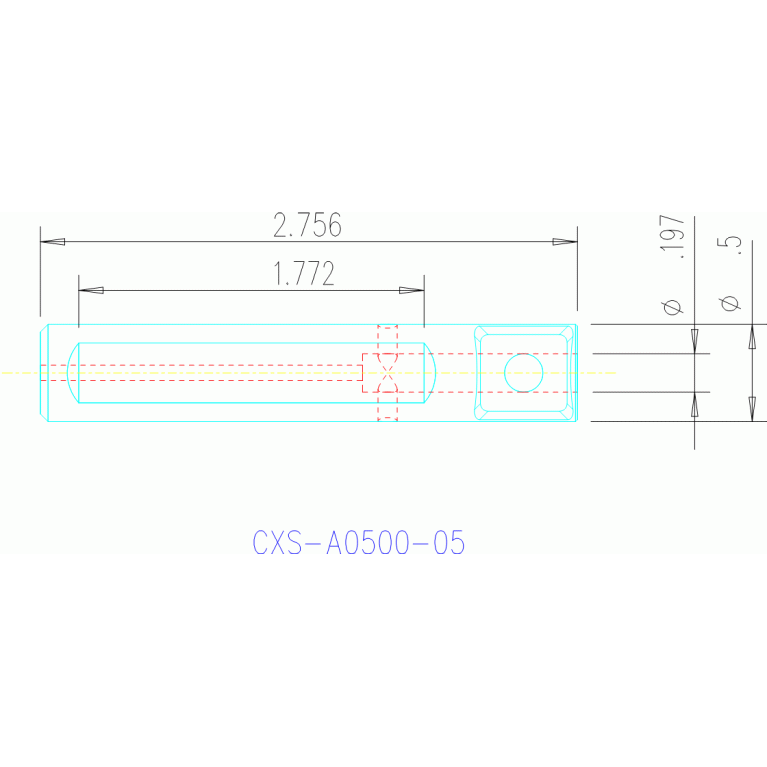

CXS-A0500-05

Артикул: 5726280

В наличии

0 ₽

В корзину

Описание

Характеристики

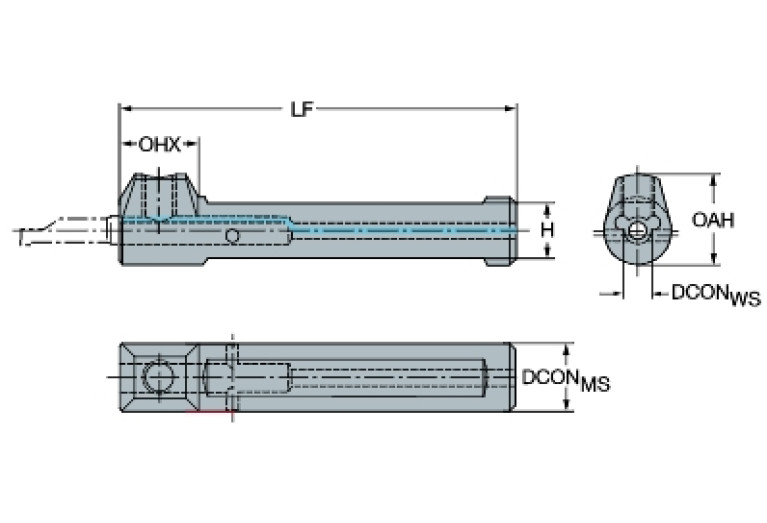

BD (Body diameter)

12.7 mm

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0050

DCONWS (Diameter)

5 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

5 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL05002235

HAND (Cutting direction)

N - Neutral

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

ZYL22R5000$$$$

LB (Body length 1)

70 mm

LF (Functional length)

70 mm

LOC-01 ISO

ZYL54F5000****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

0050

LOC-01 (DCONWS Diameter)

5 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00505415

LOC-02 ISO

ZYL54R1968****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-02 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-02 (CZCWS Connection size code)

0050

LOC-02 (DCONWS Diameter)

5 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL01965435

LOC-03 ISO

ZYL22R5000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

0500

LOC-03 (DCONMS Diameter)

12.7 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL05002235

LPR (Protruding length)

70 mm

LS (Shank length)

56 mm

LSCX (Clamping length maximum)

56 mm

OAH (Overall height)

16 mm

OAL (Overall length)

70 mm

WF (Functional width)

0 mm

WT (Weight of item)

0.08 kg
