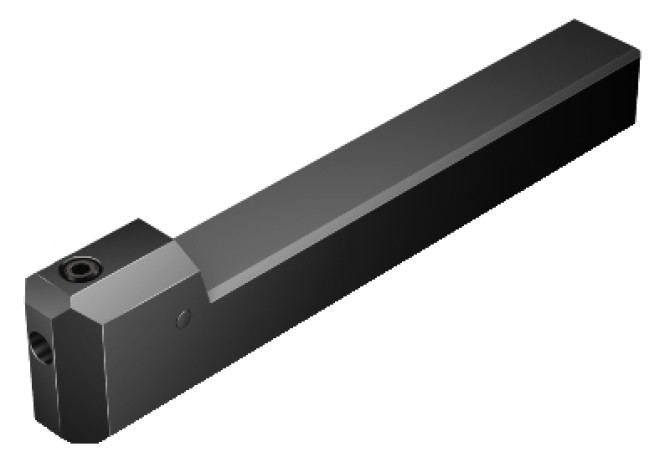

Главная Инструменты 401-02 - Converter, stationary CXS-1616-05FN

CXS-1616-05FN

Артикул: 6074974

В наличии

0 ₽

В корзину

Описание

Характеристики

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

CZCWS (Connection size code)

0050

DCONWS (Diameter)

5 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

5 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

VKT16160105

HAND (Cutting direction)

N - Neutral

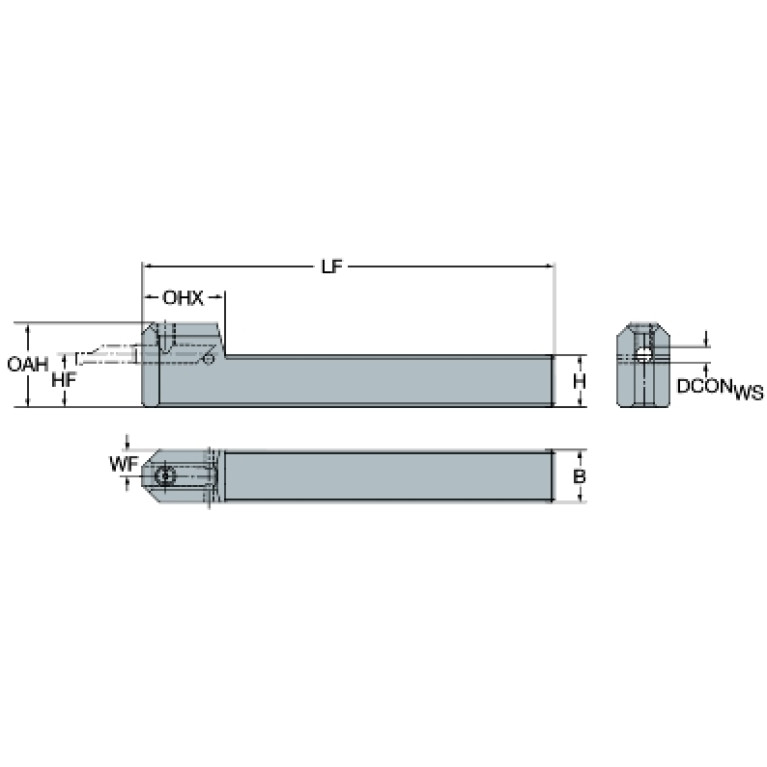

HF (Functional height)

16 mm

Interface codes

J6 / J61

ISO

VKT01A1616$$$$

LF (Functional length)

125 mm

LOC-01 ISO

ZYL54F5000****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

0 Metric

LOC-01 (CZCWS Connection size code)

0050

LOC-01 (DCONWS Diameter)

5 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00505405

LOC-02 ISO

ZYL54R1968****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-02 (CCUWS Connection code unit base)

0 Metric

LOC-02 (CZCWS Connection size code)

0050

LOC-02 (DCONWS Diameter)

5 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL01965425

LOC-03 ISO

VKT01A1616$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

VKT Square mounting

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

1616

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT16160105

LPR (Protruding length)

125 mm

LS (Shank length)

19.3 mm

LSCX (Clamping length maximum)

19.3 mm

OAH (Overall height)

25.5 mm

OAL (Overall length)

125 mm

WF (Functional width)

8 mm

WT (Weight of item)

0.296 kg
