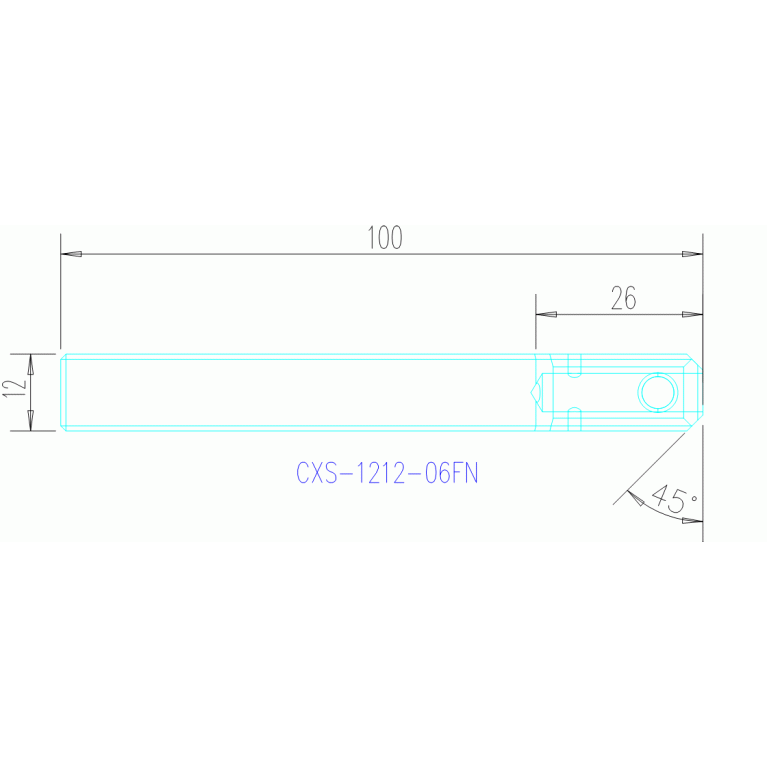

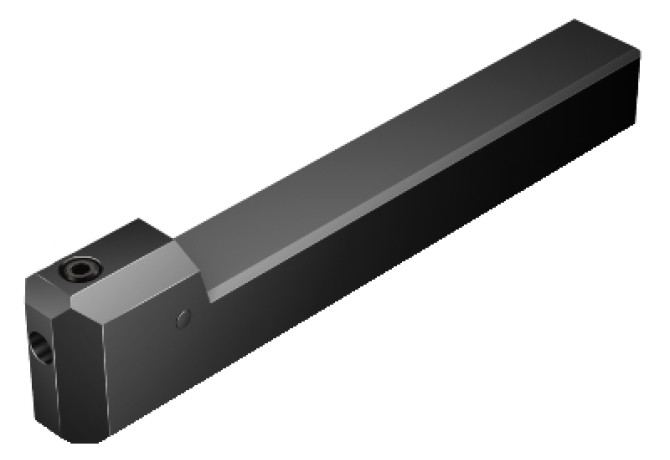

CXS-1212-06FN
CXS-1212-06FN
Артикул:
6074972
В наличии
0 ₽

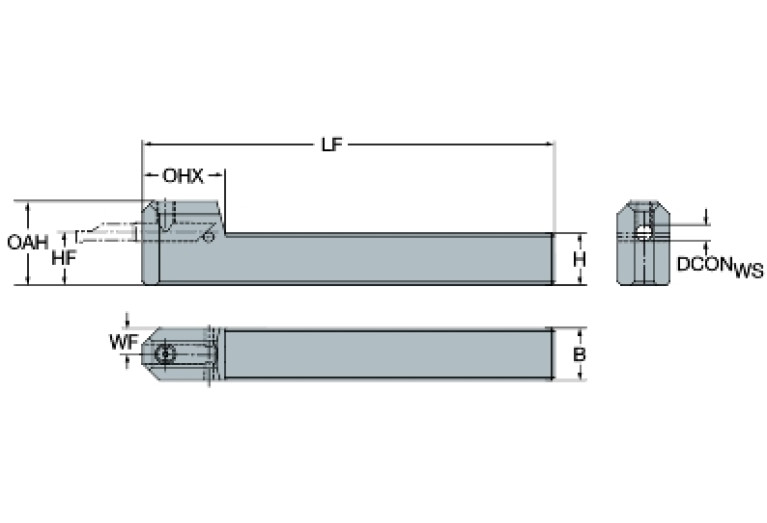

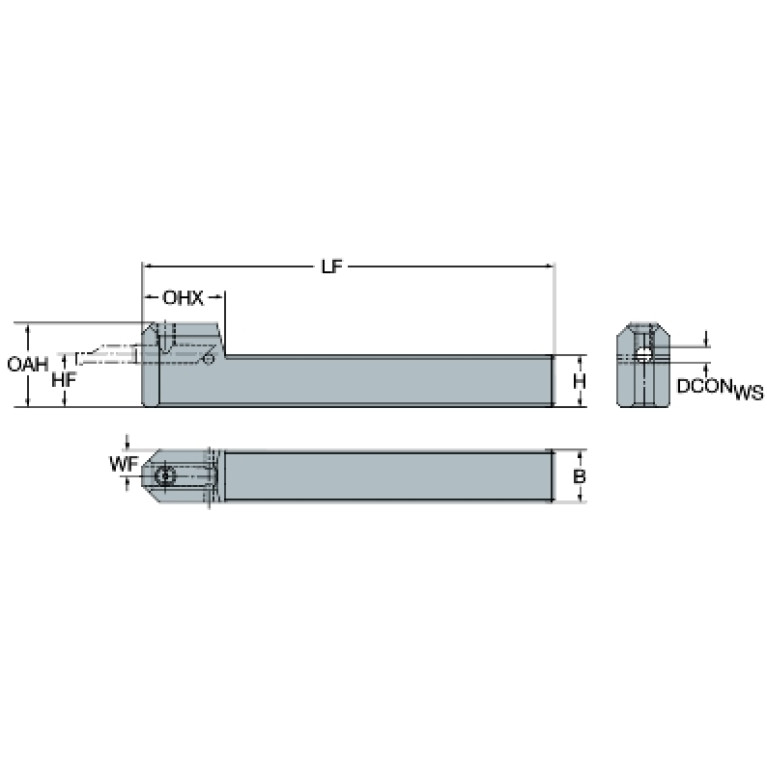

Характеристики
CCFWS (Connection code form)
54
CCSWS (Connection code style)
5
CCTWS (Connection code type)
ZYL
CCUWS (Connection code unit base)
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
CZCWS (Connection size code)
0060
DCONWS (Diameter)
6 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
6 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
VKT12120105
HAND (Cutting direction)
N - Neutral
HF (Functional height)
12 mm
Interface codes
J6 / J61
ISO
VKT01A1212$$$$
LF (Functional length)
100 mm
LOC-01 ISO
ZYL54F6000****
LOC-01 (CCFWS Connection code form)
54
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
ZYL cylindrical shank
LOC-01 (CCUWS Connection code unit base)
0 Metric
LOC-01 (CZCWS Connection size code)
0060
LOC-01 (DCONWS Diameter)
6 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00605405
LOC-02 ISO
ZYL54R2362****
LOC-02 (CCFWS Connection code form)
54
LOC-02 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-02 (CCTWS Connection code type)
ZYL cylindrical shank
LOC-02 (CCUWS Connection code unit base)
0 Metric
LOC-02 (CZCWS Connection size code)
0060
LOC-02 (DCONWS Diameter)
6 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
ZYL02365425
LOC-03 ISO
VKT01A1212$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
VKT Square mounting
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
1212
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT12120105
LPR (Protruding length)
100 mm
LS (Shank length)
19.3 mm
LSCX (Clamping length maximum)
19.3 mm
OAH (Overall height)
22 mm
OAL (Overall length)
100 mm
WF (Functional width)
6 mm
WT (Weight of item)
0.156 kg
