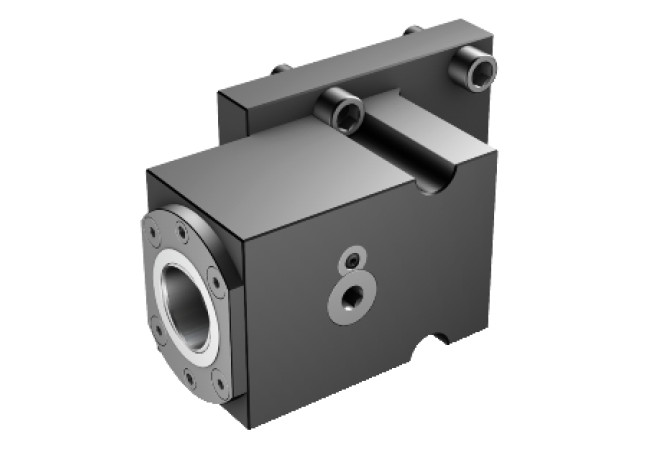

Главная Инструменты 401-02 - Converter, stationary C8-TLI-MZ-F

C8-TLI-MZ-F

Артикул: 6538854

В наличии

0 ₽

В корзину

Описание

Характеристики

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

CCS

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

7 - Coolant entry, decentral and axially concentric

CXSC (Coolant exit style code)

2 - With Coolant exit, radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

2 - With Coolant exit, radial

CZCWS (Connection size code)

0800

DCONWS (Diameter)

80 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

80 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

FLCD0FN0295

HAND (Cutting direction)

L - Left

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

FLC02CD0FN$$$$

LF (Functional length)

79.25 mm

LOC-01 ISO

CCS01C0800****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0800

LOC-01 (DCONWS Diameter)

80 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCS08000195

LOC-02 ISO

CCS02C0800****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-02 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-02 (CZCWS Connection size code)

0800

LOC-02 (DCONWS Diameter)

80 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

CCS08000295

LOC-03 ISO

FLC02CD0FN$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

FLC Flange mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

D0FN

LOC-03 (DCONMS Diameter)

80 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FLCD0FN0295

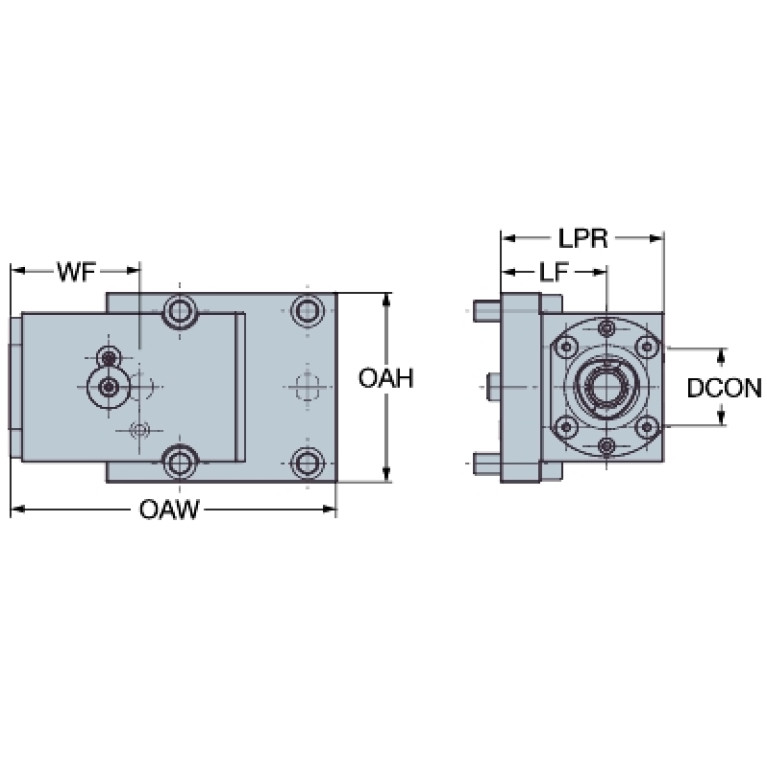

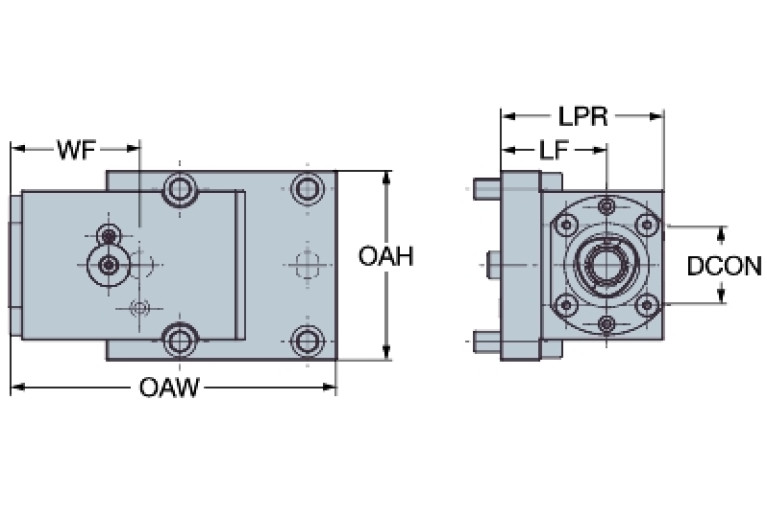

LPR (Protruding length)

129 mm

OAH (Overall height)

142 mm

OAL (Overall length)

129 mm

OAW (Overall width)

244 mm

WF (Functional width)

97 mm

WT (Weight of item)

22.8 kg
