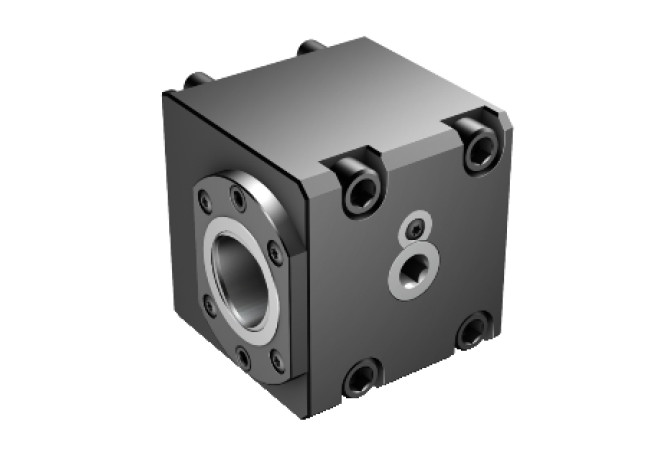

C8-TLI-MS-C
C8-TLI-MS-C
Артикул:
6583811
В наличии
0 ₽
Характеристики
CCFWS (Connection code form)
01
CCSWS (Connection code style)
5
CCTWS (Connection code type)
CCS
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
7 - Coolant entry, decentral and axially concentric
CXSC (Coolant exit style code)
2 - With Coolant exit, radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
2 - With Coolant exit, radial
CZCWS (Connection size code)
0800
DCONWS (Diameter)
80 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
80 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
FLCC0CN0295
HAND (Cutting direction)
L - Left
HF (Functional height)
0 mm
Interface codes
J6 / J61
ISO
FLC02CC0CN$$$$
LF (Functional length)
62 mm
LOC-01 ISO
CCS01C0800****
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0800
LOC-01 (DCONWS Diameter)
80 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CCS08000195
LOC-02 ISO
CCS02C0800****
LOC-02 (CCFWS Connection code form)
01
LOC-02 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-02 (CCTWS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-02 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-02 (CZCWS Connection size code)
0800
LOC-02 (DCONWS Diameter)
80 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
CCS08000295
LOC-03 ISO
FLC02CC0CN$$$$
LOC-03 (CCFMS Connection code form)
02
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
FLC Flange mounting SANDVIK Coromant
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
C0CN
LOC-03 (DCONMS Diameter)
80 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FLCC0CN0295
LPR (Protruding length)
112 mm
OAH (Overall height)
140 mm
OAL (Overall length)
122 mm
OAW (Overall width)
192 mm
WF (Functional width)
117 mm
WT (Weight of item)
20.142 kg
