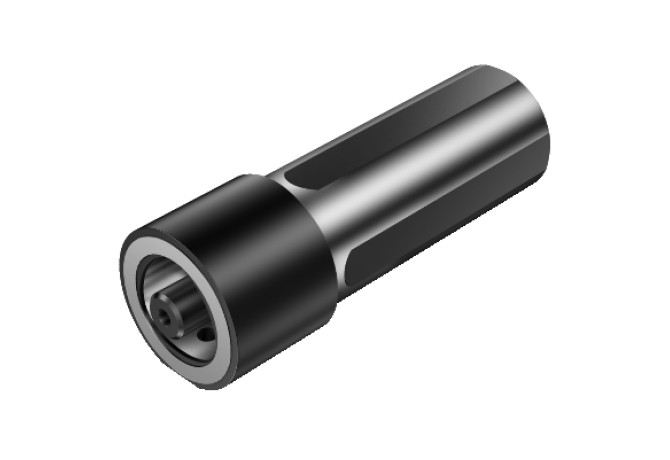

Главная Инструменты 401-02 - Converter, stationary C3-NC3000-08018-A20

C3-NC3000-08018-A20

Артикул: 5726886

В наличии

0 ₽

В корзину

Описание

Характеристики

BD (Body diameter)

45.5 mm

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

CCS

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

2 - With Coolant entry, radial

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0320

DCONWS (Diameter)

31.75 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

31.75 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL12502235

HAND (Cutting direction)

N - Neutral

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

ZYL22S1250$$$$

LB (Body length 1)

18 mm

LF (Functional length)

18 mm

LOC-01 ISO

CCS03C0320****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0320

LOC-01 (DCONWS Diameter)

31.75 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCS03200395

LOC-02 ISO

CCS01C0320****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-02 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-02 (CZCWS Connection size code)

0320

LOC-02 (DCONWS Diameter)

31.75 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

CCS03200195

LOC-03 ISO

ZYL22S1250$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

1250

LOC-03 (DCONMS Diameter)

31.75 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL12502235

LPR (Protruding length)

18 mm

LS (Shank length)

80 mm

LSCX (Clamping length maximum)

80 mm

OAL (Overall length)

98 mm

WF (Functional width)

0 mm

WT (Weight of item)

0.65 kg
