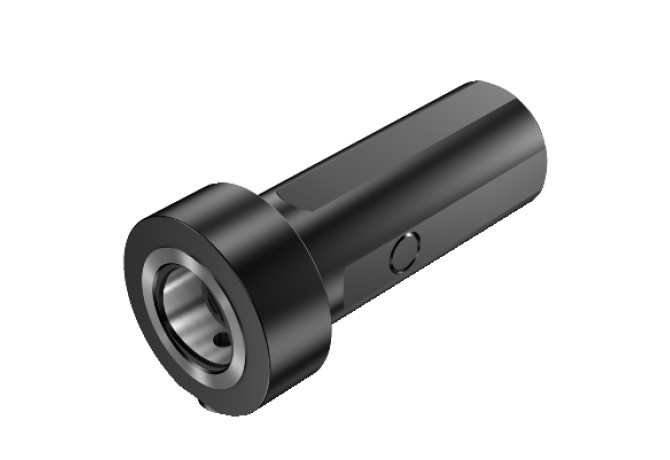

Главная Инструменты 401-02 - Converter, stationary C3-NC2000-08018-32

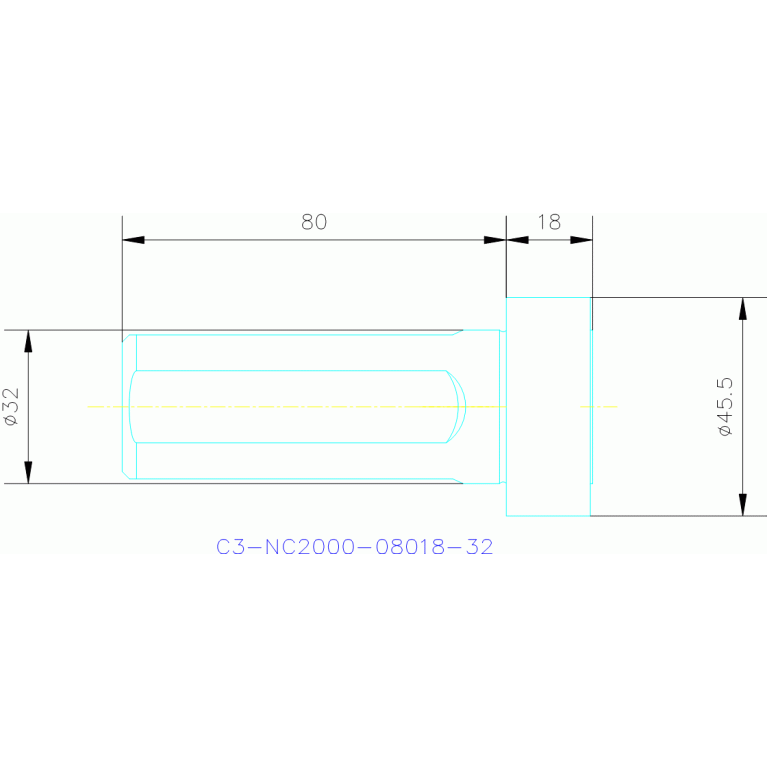

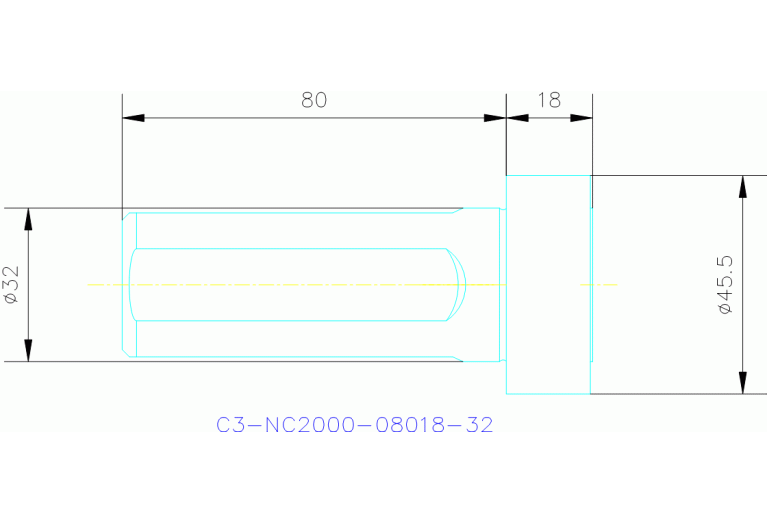

C3-NC2000-08018-32

Артикул: 5726884

В наличии

0 ₽

В корзину

Описание

Характеристики

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

CCS

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

2 - With Coolant entry, radial

CXSC (Coolant exit style code)

2 - With Coolant exit, radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

2 - With Coolant exit, radial

CZCWS (Connection size code)

0320

DCONWS (Diameter)

32 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

32 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL03202215

HAND (Cutting direction)

N - Neutral

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

ZYL22G3200$$$$

LF (Functional length)

18 mm

LOC-01 ISO

CCS01C0320****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0320

LOC-01 (DCONWS Diameter)

32 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCS03200195

LOC-02 ISO

CCS02C0320****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-02 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-02 (CZCWS Connection size code)

0320

LOC-02 (DCONWS Diameter)

32 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

CCS03200295

LOC-03 ISO

ZYL22G3200$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0320

LOC-03 (DCONMS Diameter)

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03202215

LS (Shank length)

80 mm

LSCX (Clamping length maximum)

80 mm

OAH (Overall height)

45.5 mm

OAL (Overall length)

98 mm

OAW (Overall width)

45.5 mm

WF (Functional width)

0 mm

WT (Weight of item)

0.64 kg
