Главная Инструменты 401-02 - Converter, stationary C3-391.327-06 029

C3-391.327-06 029

Артикул: 6265066

В наличии

0 ₽

В корзину

Описание

Характеристики

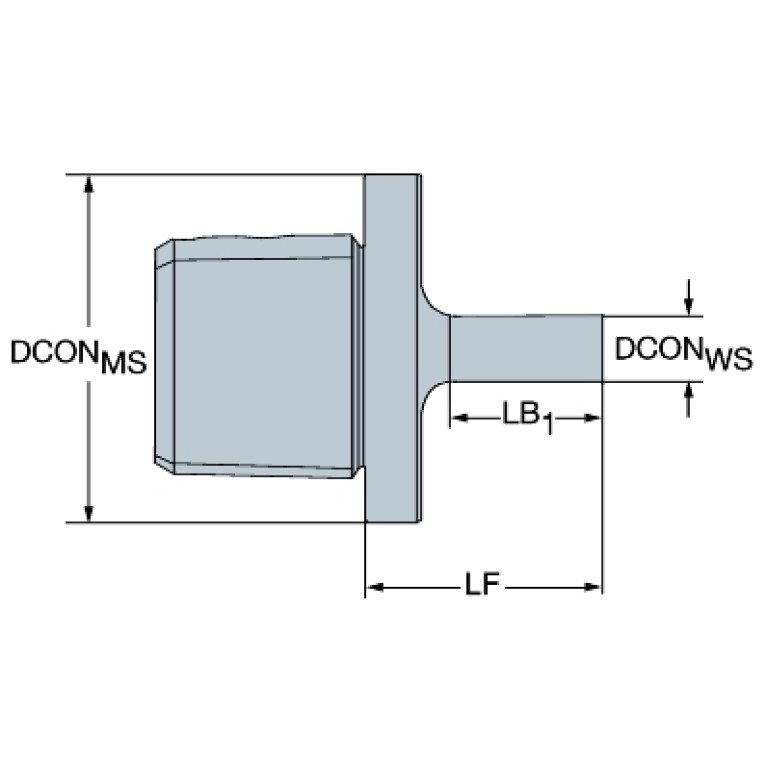

BD (Body diameter 2)

32 mm

BD (Body diameter)

6 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

CMS

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

CZCWS (Connection size code)

0060

DCONWS (Diameter)

32 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

32 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS03200285

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

CCS02C0320$$$$

LB (Body length 1)

16 mm

LB (Length 2)

13 mm

LF (Functional length)

29 mm

LOC-01 ISO

CMS02C0060****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

7 Serrated connection

LOC-01 (CCTWS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-01 (CCUWS Connection code unit base)

8 non-dimensional size

LOC-01 (CZCWS Connection size code)

0060

LOC-01 (DCONWS Diameter)

32 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CMS00600287

LOC-03 ISO

CCS02C0320$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0320

LOC-03 (DCONMS Diameter)

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS03200285

LPR (Protruding length)

29 mm

OAL (Overall length)

48 mm

RPMX (Rotational speed maximum)

55000 1/min

WT (Weight of item)

0.136 kg
