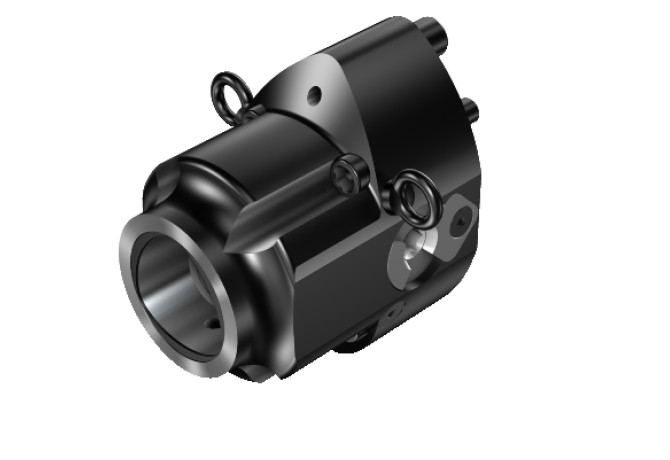

Главная Инструменты 401-02 - Converter, stationary C10-LC2095-00182

C10-LC2095-00182

Артикул: 6294707

В наличии

0 ₽

В корзину

Описание

Характеристики

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

CCS

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

6 - With coolant supply (discharge), peripheral/decentralized via flange

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

1000

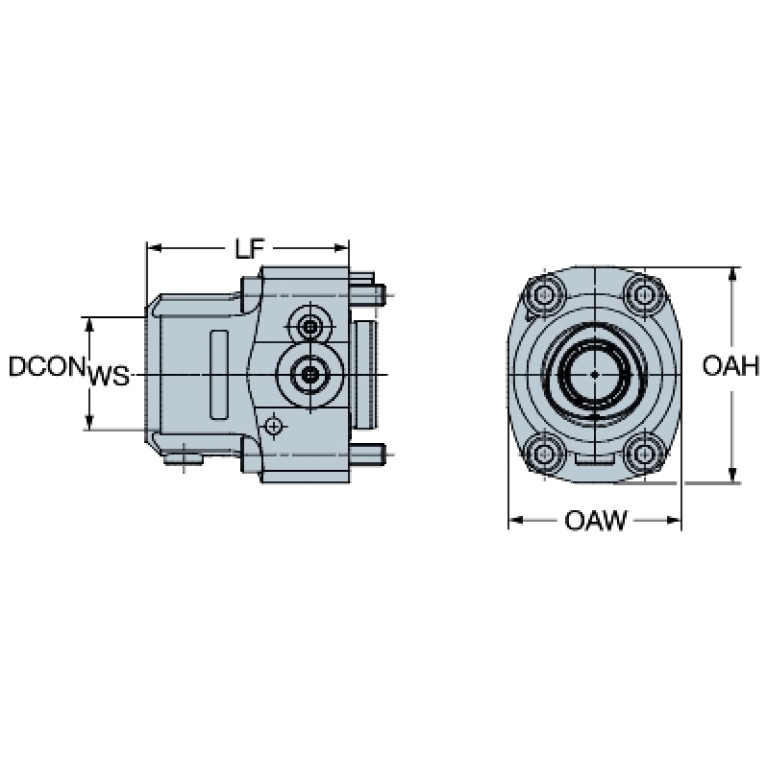

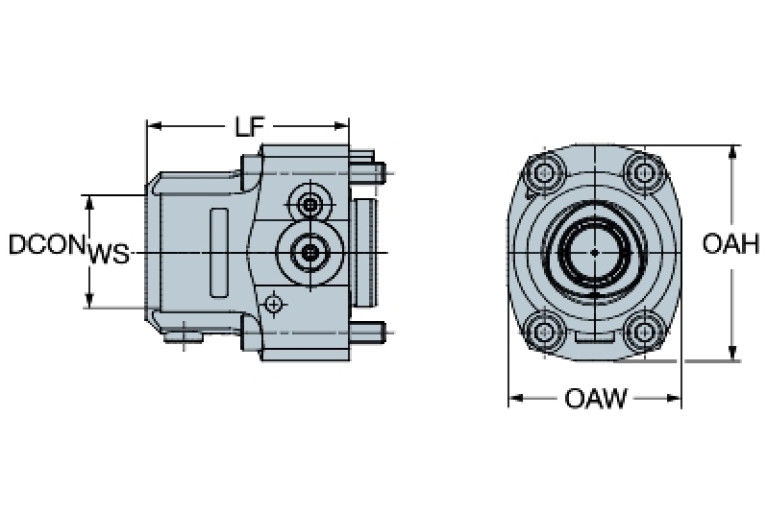

DCONWS (Diameter)

100 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

100 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

FLC12601095

HAND (Cutting direction)

L - Left

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

FLC10C1260$$$$

LF (Functional length)

182 mm

LOC-01 ISO

CCS01C1000****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

1000

LOC-01 (DCONWS Diameter)

100 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCS10000195

LOC-02 ISO

CCS02C1000****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-02 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-02 (CZCWS Connection size code)

1000

LOC-02 (DCONWS Diameter)

100 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

CCS10000295

LOC-03 ISO

FLC10C1260$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

FLC Flange mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

1260

LOC-03 (DCONMS Diameter)

100 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FLC12601095

LPR (Protruding length)

182 mm

LS (Shank length)

14.7 mm

OAH (Overall height)

208.3 mm

OAL (Overall length)

196.7 mm

OAW (Overall width)

126 mm

WF (Functional width)

0 mm

WT (Weight of item)

19.67 kg
