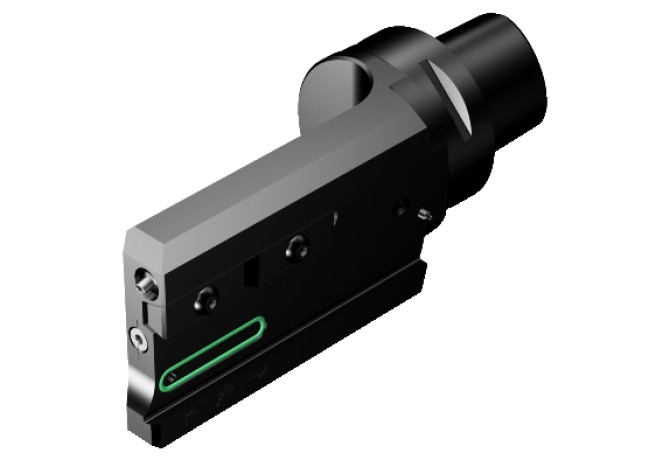

Главная Инструменты 401-02 - Converter, stationary C10-APBR-240-45HP

C10-APBR-240-45HP

Артикул: 7086884

В наличии

0 ₽

В корзину

Описание

Характеристики

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

PMC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CXSC (Coolant exit style code) / Тип подвода СОЖ

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CZCWS (Connection size code)

0450

DCONWS (Diameter)

100 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

100 mm

DCP (Data chip provision)

1 - With data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CCS10000195

HAND (Cutting direction)

R - Right

HF (Functional height)

45 mm

Interface codes

J6 / J61

ISO

CCS01C1000$$$$

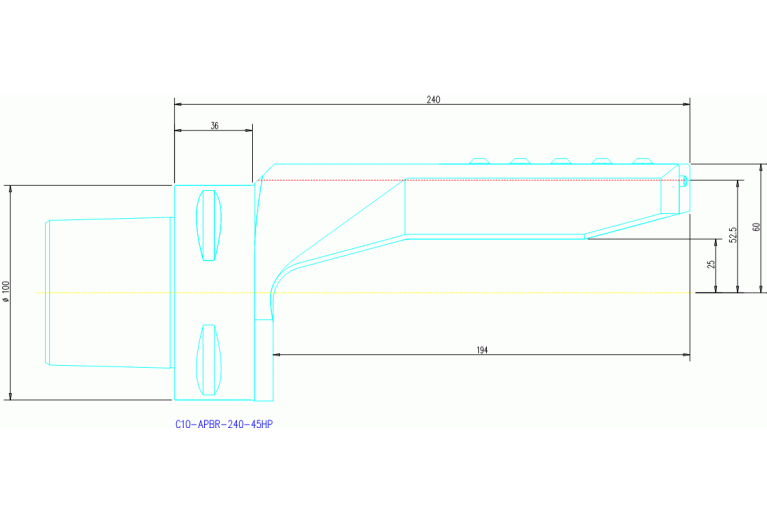

LF (Functional length)

240 mm

LOC-01 ISO

PMC01C0450****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

PMC Prism mounting SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0450

LOC-01 (DCONWS Diameter)

100 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

PMC04500195

LOC-02 ISO

PMC01C045R****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

PMC Prism mounting SANDVIK Coromant

LOC-02 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-02 (CZCWS Connection size code)

0450

LOC-02 (DCONWS Diameter)

100 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

PMC045R0195

LOC-03 ISO

CCS01C1000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

1000

LOC-03 (DCONMS Diameter)

100 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS10000195

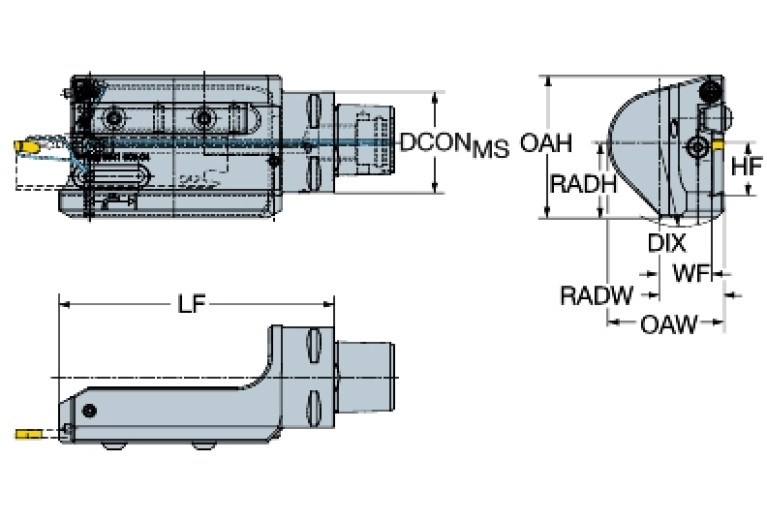

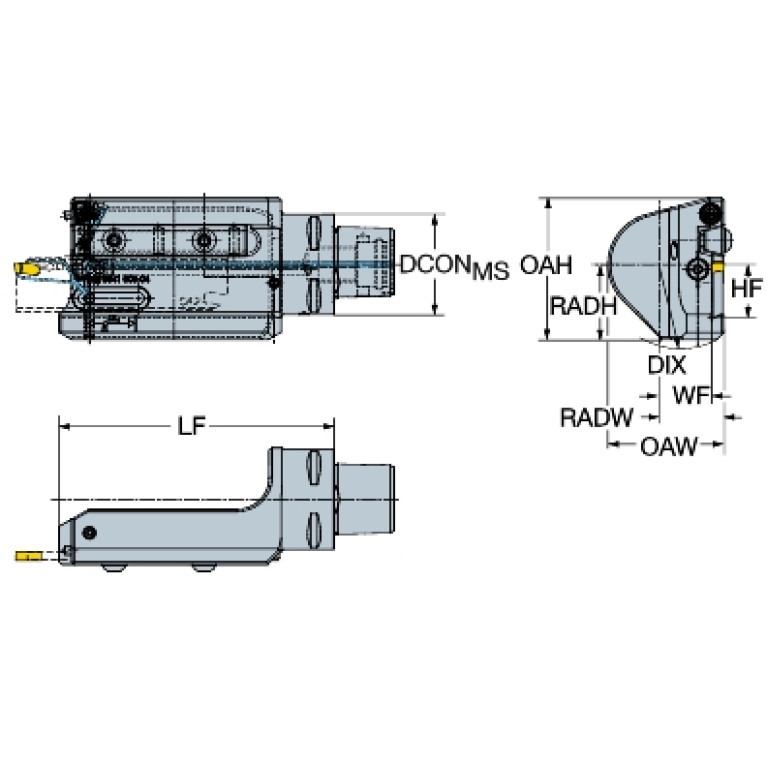

LPR (Protruding length)

240 mm

OAH (Overall height)

112.5 mm

OAL (Overall length)

300 mm

OAW (Overall width)

110.5 mm

RADH (Radial height)

62 mm

RADW (Radial width)

60 mm

WF (Functional width)

52.5 mm

WT (Weight of item)

9.269 kg
