Главная Инструменты 401-02 - Converter, stationary BA-RGC2525-21M

BA-RGC2525-21M

BA-RGC2525-21M BA-RGC2525-21M BA-RGC2525-21M BA-RGC2525-21M

BA-RGC2525-21M

SV - Sandvik-Coromant
Артикул: 6605247
В наличии
0 ₽
В корзину
Описание
Характеристики
CCFWS (Connection code form)
01
CCSWS (Connection code style)
5
CCTWS (Connection code type)
PMC
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
2 - With Coolant entry, radial
CXSC (Coolant exit style code)
2 - With Coolant exit, radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
2 - With Coolant exit, radial
CZCWS (Connection size code)
0210
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT25250115
HAND (Cutting direction)
R - Right
HF (Functional height)
25 mm
Interface codes
J6 / J61
ISO
VKT01A2525$$$$

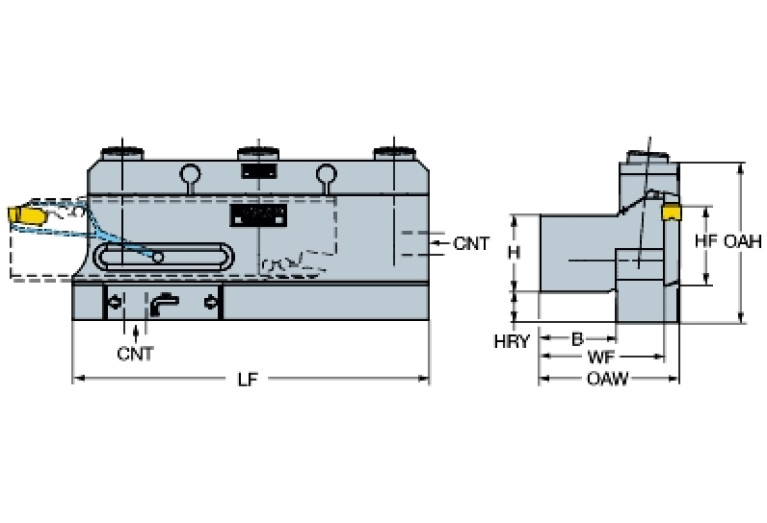

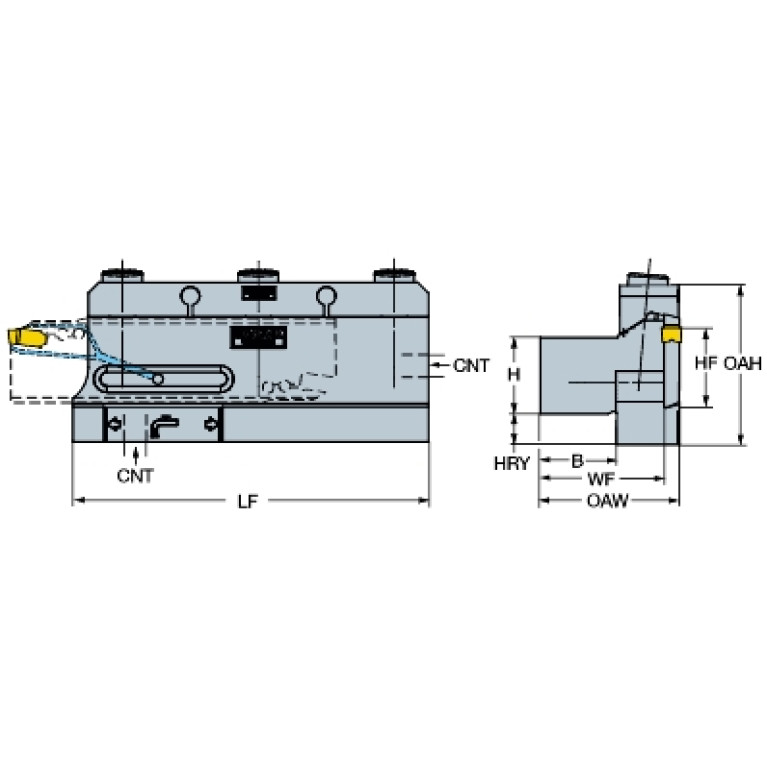

LF (Functional length)
85 mm
LOC-01 ISO
PMC01C0210****
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
PMC Prism mounting SANDVIK Coromant
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0210
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
PMC02100195
LOC-02 ISO
PMC01C021R****
LOC-02 (CCFWS Connection code form)
01
LOC-02 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-02 (CCTWS Connection code type)
PMC Prism mounting SANDVIK Coromant
LOC-02 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-02 (CZCWS Connection size code)
0210
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
PMC021R0195
LOC-03 ISO
VKT01A2525$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
VKT Square mounting
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
2525
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250115
LPR (Protruding length)
85 mm
OAH (Overall height)
48 mm
OAL (Overall length)
85 mm
OAW (Overall width)
44 mm
RADW (Radial width)
44 mm
WF (Functional width)
39 mm
WT (Weight of item)
0.899 kg
