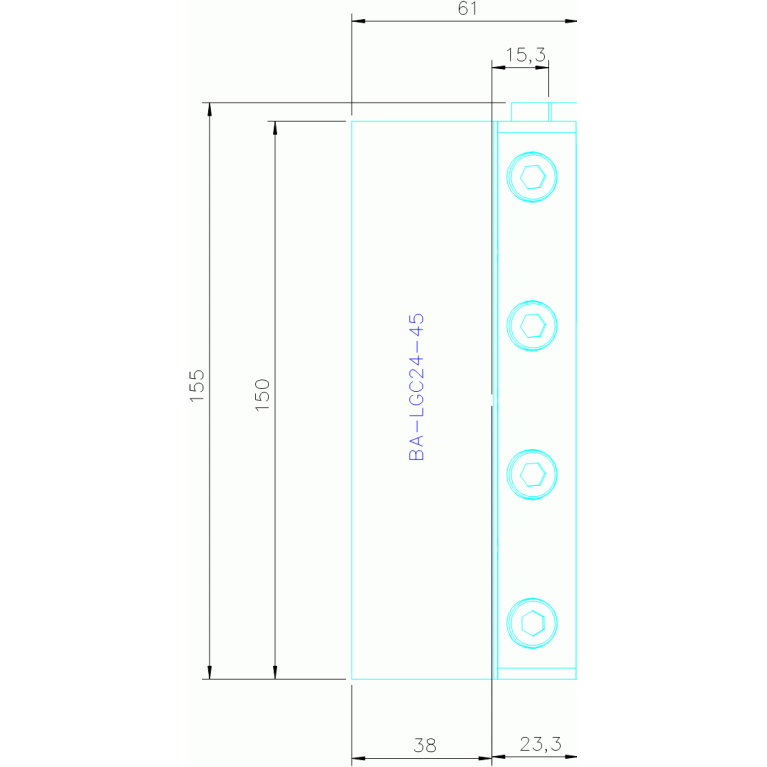

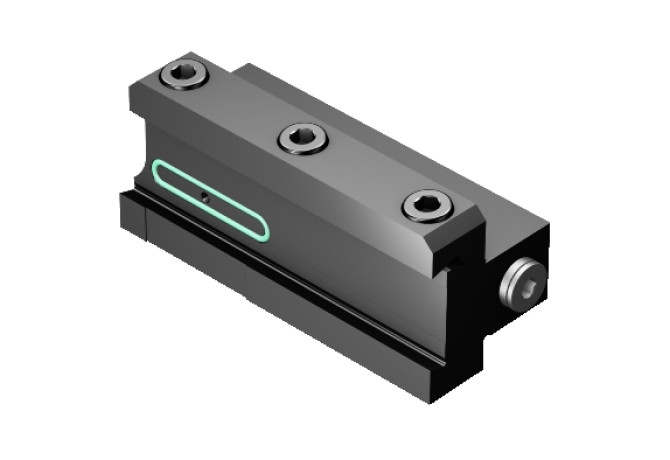

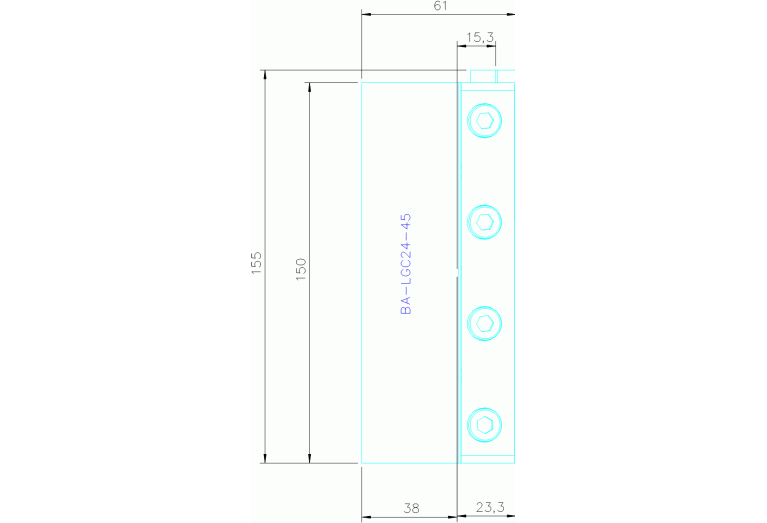

BA-LGC24-45
BA-LGC24-45
Артикул:
6427876
В наличии
0 ₽
Характеристики
CCFWS (Connection code form)
01
CCSWS (Connection code style)
5
CCTWS (Connection code type)
PMC
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
2 - With Coolant entry, radial
CXSC (Coolant exit style code)
2 - With Coolant exit, radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
2 - With Coolant exit, radial
CZCWS (Connection size code)
0450
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT24240135
HAND (Cutting direction)
L - Left

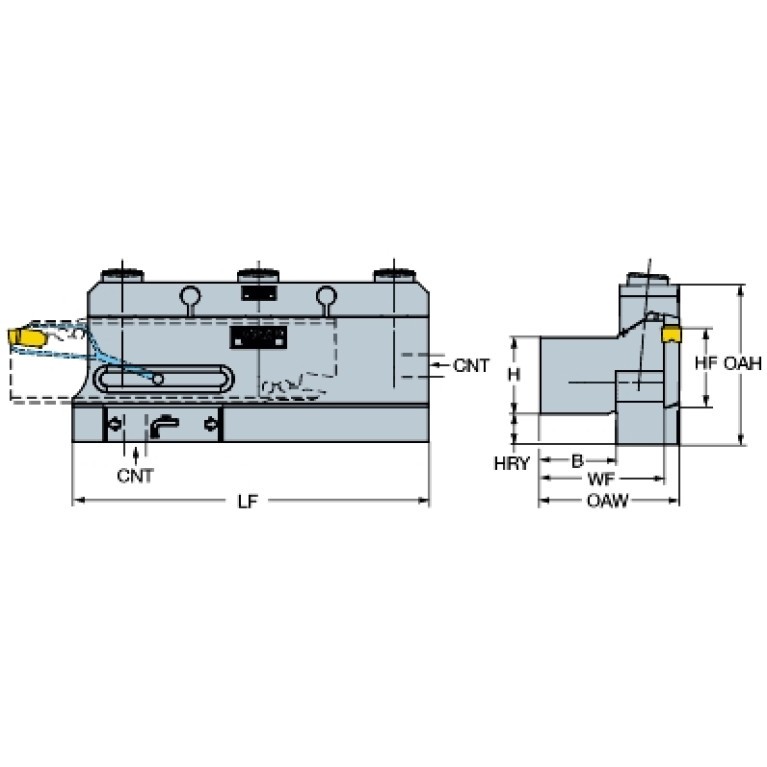

HF (Functional height)
45 mm
Interface codes
J6 / J61
ISO
VKT01B2424$$$$
LF (Functional length)
155 mm
LOC-01 ISO
PMC01C0450****
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
PMC Prism mounting SANDVIK Coromant
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0450
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
PMC04500195
LOC-02 ISO
PMC01C045L****
LOC-02 (CCFWS Connection code form)
01
LOC-02 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-02 (CCTWS Connection code type)
PMC Prism mounting SANDVIK Coromant
LOC-02 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-02 (CZCWS Connection size code)
0450
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
PMC045L0195
LOC-03 ISO
VKT01B2424$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
VKT Square mounting
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
2424
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT24240135
LPR (Protruding length)
155 mm
OAH (Overall height)
51 mm
OAL (Overall length)
155 mm
OAW (Overall width)
61 mm
RADW (Radial width)
61 mm
WF (Functional width)
53 mm
WT (Weight of item)
3.34 kg
