Главная Инструменты 401-02 - Converter, stationary ASHA-L-VDI40-25-HP

ASHA-L-VDI40-25-HP

Артикул: 6472359

В наличии

0 ₽

В корзину

Описание

Характеристики

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

VKT

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

6 - With coolant supply (discharge), peripheral/decentralized via flange

CXSC (Coolant exit style code)

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CXSC (Coolant exit style code) / Тип подвода СОЖ

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CZCWS (Connection size code)

2516

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYV04000195

HAND (Cutting direction)

L - Left

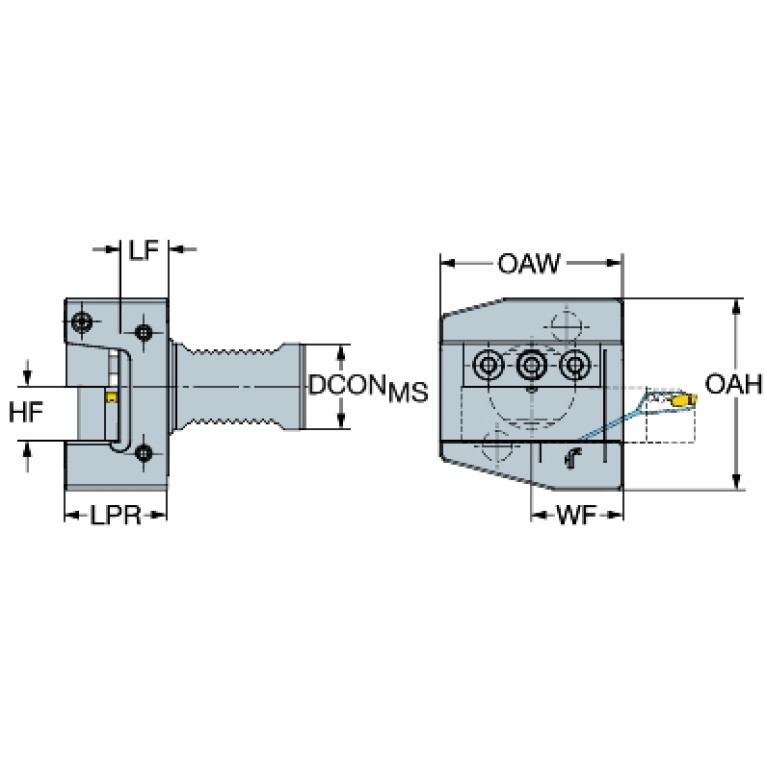

HF (Functional height)

25 mm

Interface codes

J6 / J61

ISO

ZYV01C0400$$$$

LF (Functional length)

23 mm

LOC-01 ISO

VKT01A2516****VKT01A2527****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

VKT Square mounting

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

2516

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VKT25160115VKT25270115

LOC-03 ISO

ZYV01C0400$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYV cylindrical shank VDI type (serrated)

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0400

LOC-03 (DCONMS Diameter)

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYV04000195

LPR (Protruding length)

48 mm

OAH (Overall height)

89 mm

OAL (Overall length)

111 mm

OAW (Overall width)

85 mm

WF (Functional width)

42.5 mm

WT (Weight of item)

2.644 kg
