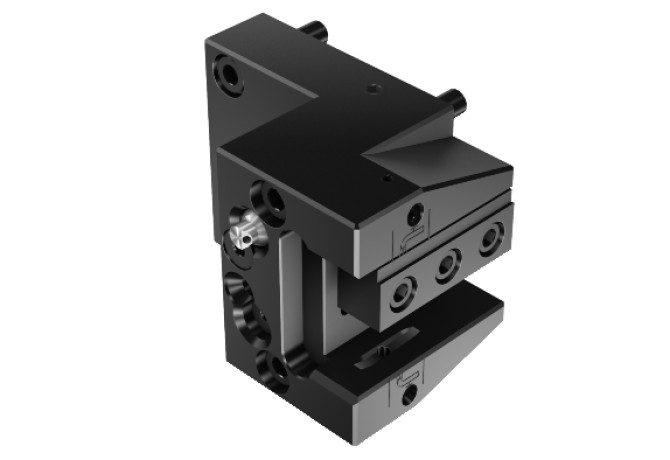

Главная Инструменты 401-02 - Converter, stationary ASH-TNE-BT45A-20-HP

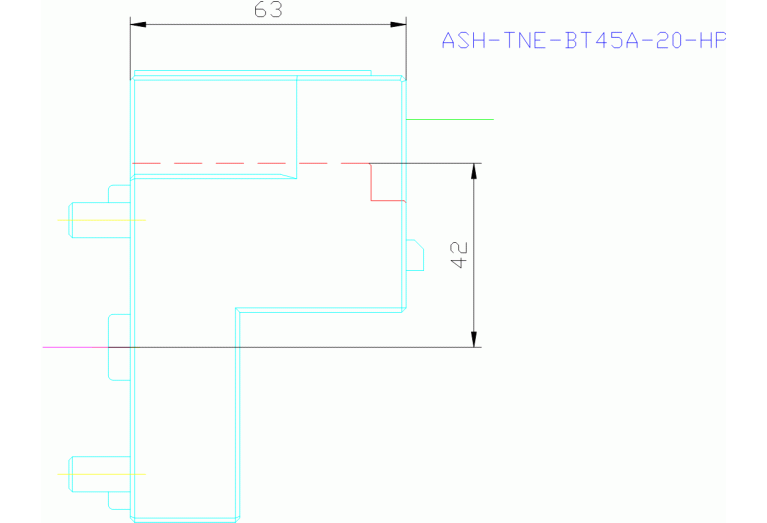

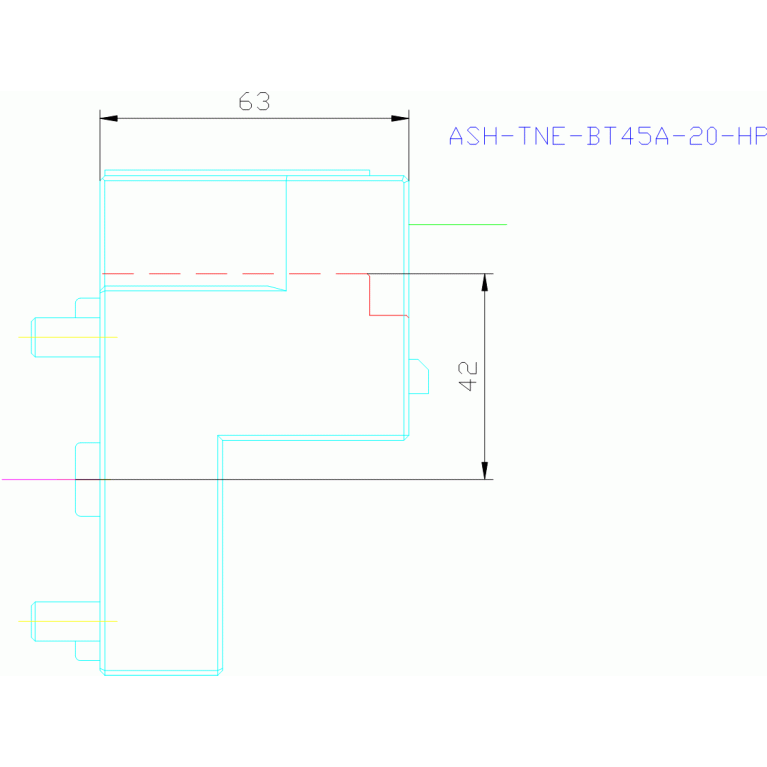

ASH-TNE-BT45A-20-HP

Артикул: 6749574

В наличии

0 ₽

В корзину

Описание

Характеристики

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

VKT

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

7 - Coolant entry, decentral and axially concentric

CXSC (Coolant exit style code)

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CXSC (Coolant exit style code) / Тип подвода СОЖ

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CZCWS (Connection size code)

2012

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

FLCB4AN0295

HAND (Cutting direction)

N - Neutral

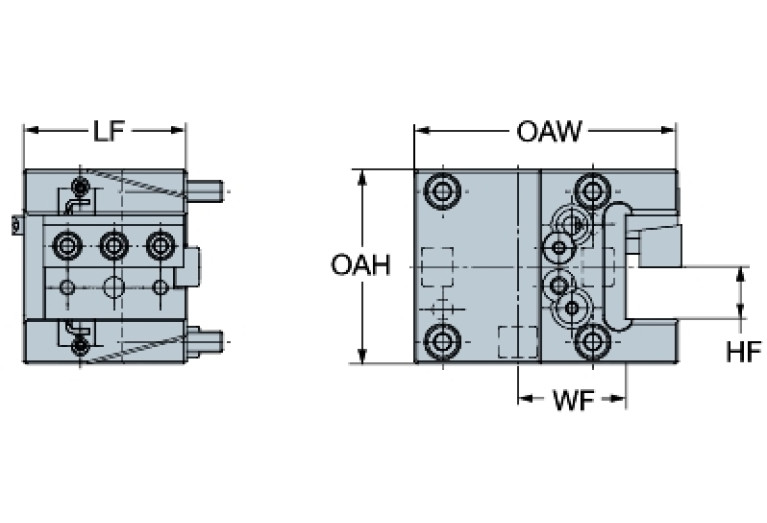

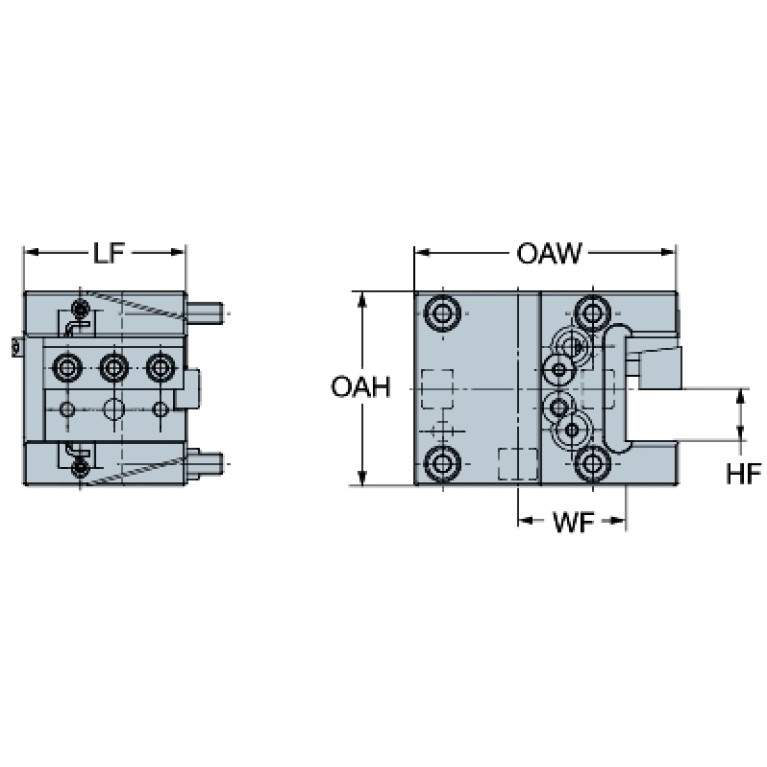

HF (Functional height)

20 mm

Interface codes

J6 / J61

ISO

FLC02CB4AN$$$$

LF (Functional length)

63 mm

LOC-01 ISO

VKT01A2012****VKT01A2022****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

VKT Square mounting

LOC-01 (CCUWS Connection code unit base)

1 Metric with coolant

LOC-01 (CZCWS Connection size code)

2012

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VKT20120115VKT20220115

LOC-03 ISO

FLC02CB4AN$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

FLC Flange mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

B4AN

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FLCB4AN0295

LPR (Protruding length)

63 mm

OAH (Overall height)

75 mm

OAL (Overall length)

63 mm

OAW (Overall width)

102 mm

Rotation (Rotation indicator)

0 - stationary tool

WF (Functional width)

20 mm

WT (Weight of item)

2.346 kg
