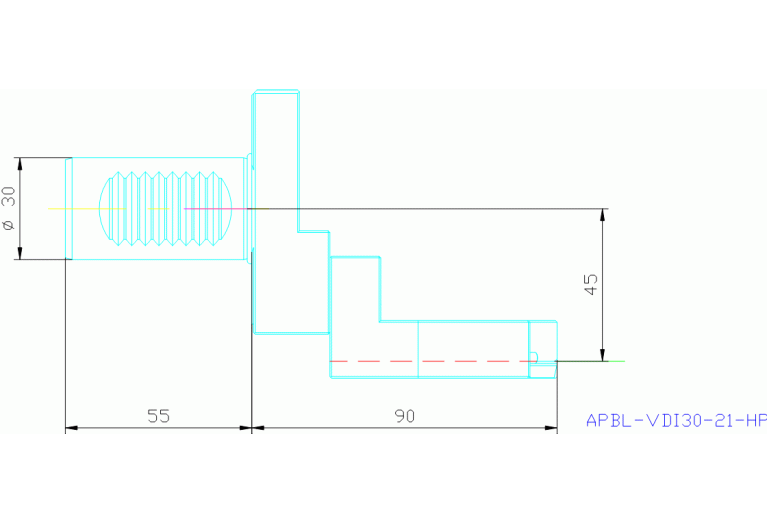

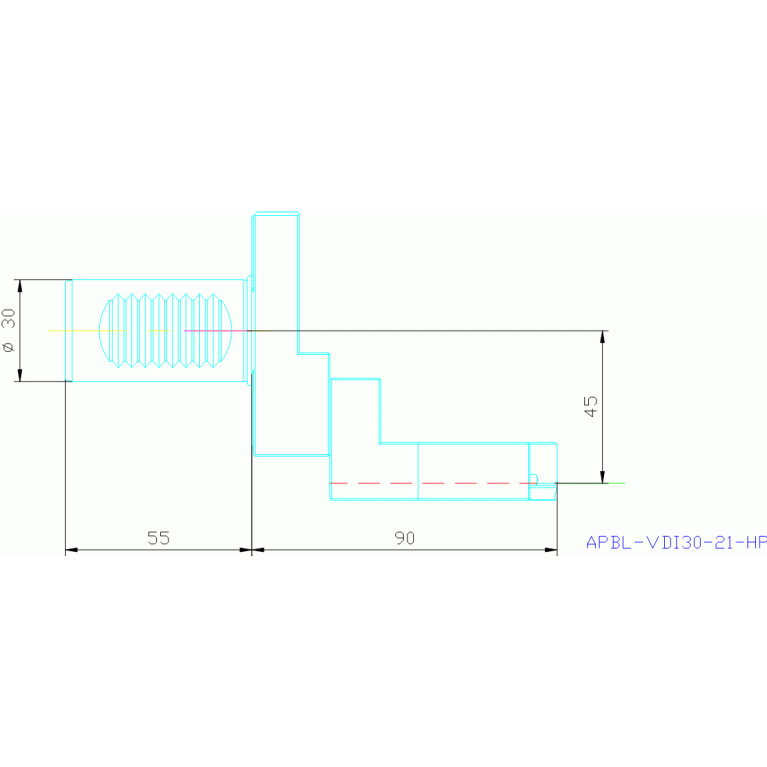

Главная Инструменты 401-02 - Converter, stationary APBL-VDI30-21-HP

APBL-VDI30-21-HP

APBL-VDI30-21-HP APBL-VDI30-21-HP APBL-VDI30-21-HP APBL-VDI30-21-HP

APBL-VDI30-21-HP

SV - Sandvik-Coromant
Артикул: 6423412
В наличии
0 ₽
В корзину
Описание
Характеристики
CCFWS (Connection code form)
01
CCSWS (Connection code style)
5
CCTWS (Connection code type)
PMC
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
2 - With Coolant exit, radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
2 - With Coolant exit, radial
CZCWS (Connection size code)
0210
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
ZYV03000115
HAND (Cutting direction)
L - Left

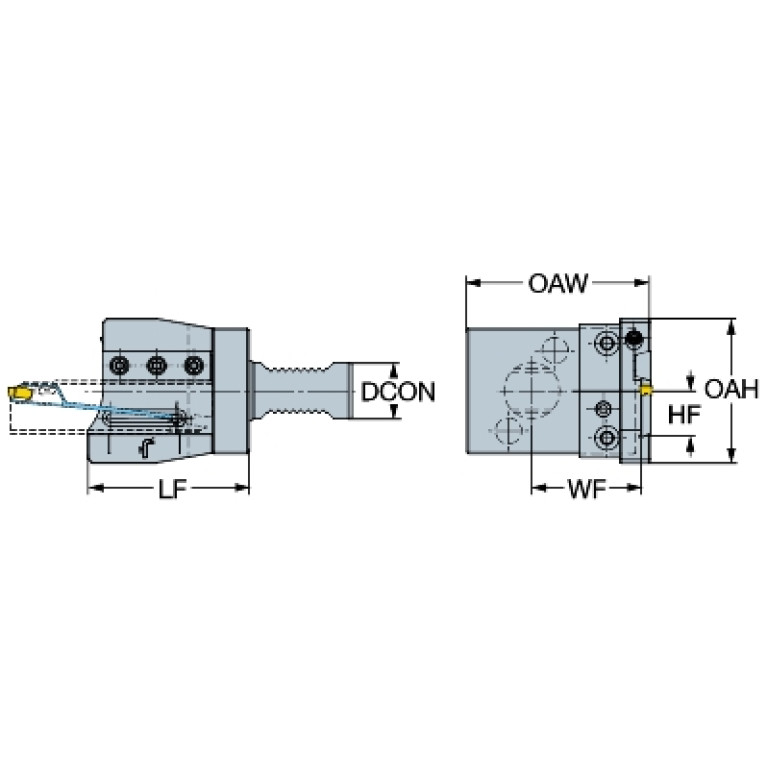

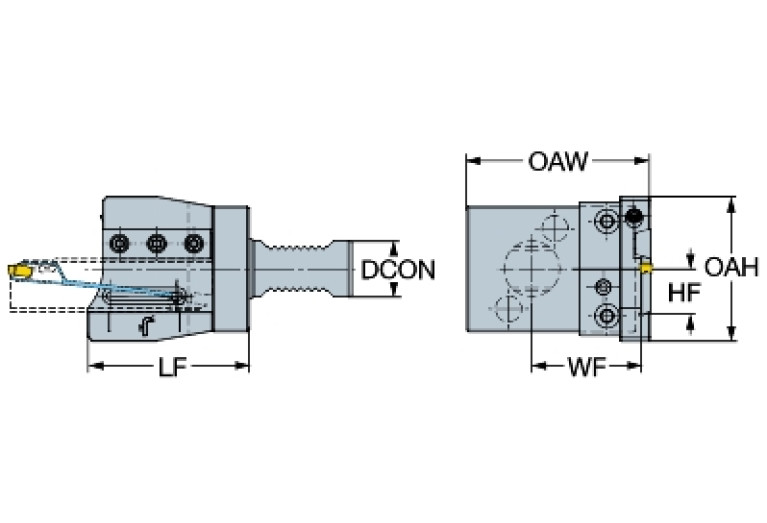

HF (Functional height)
21.4 mm
Interface codes
J6 / J61
ISO
ZYV01C0300$$$$
LF (Functional length)
80 mm
LOC-01 ISO
PMC01C0210****
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
PMC Prism mounting SANDVIK Coromant
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0210
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-02 ISO
PMC01C021L****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-03 ISO
ZYV01C0300$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYV cylindrical shank VDI type (serrated)
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0300
LOC-03 (DCONMS Diameter)
30 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYV03000115
LPR (Protruding length)
80 mm
OAH (Overall height)
73 mm
OAL (Overall length)
135 mm
OAW (Overall width)
97 mm
Rotation (Rotation indicator)
0 - stationary tool
WF (Functional width)
45 mm
WT (Weight of item)
1.969 kg
