Главная Инструменты 401-02 - Converter, stationary APBA-L-VDI50-25-HP

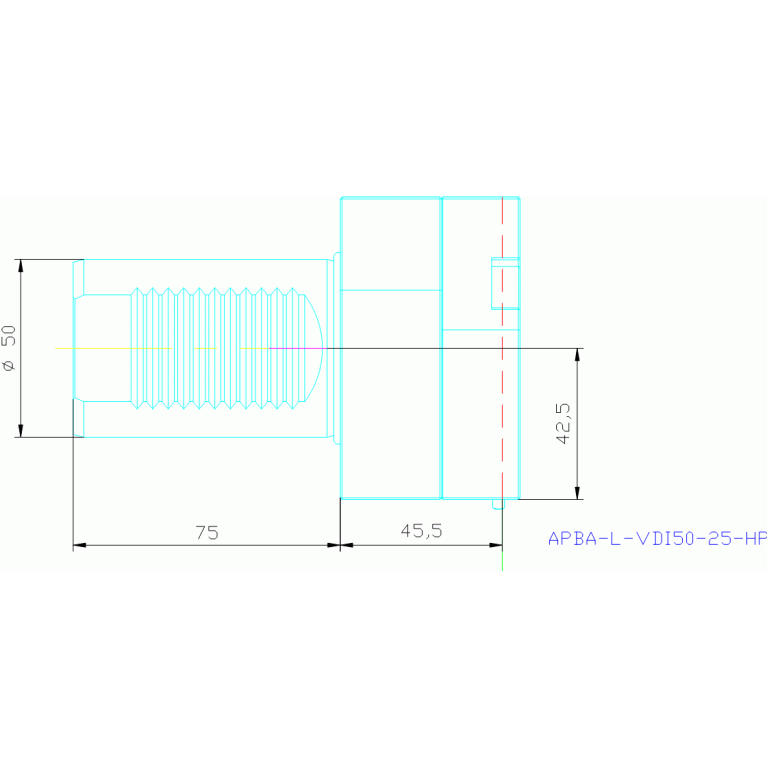

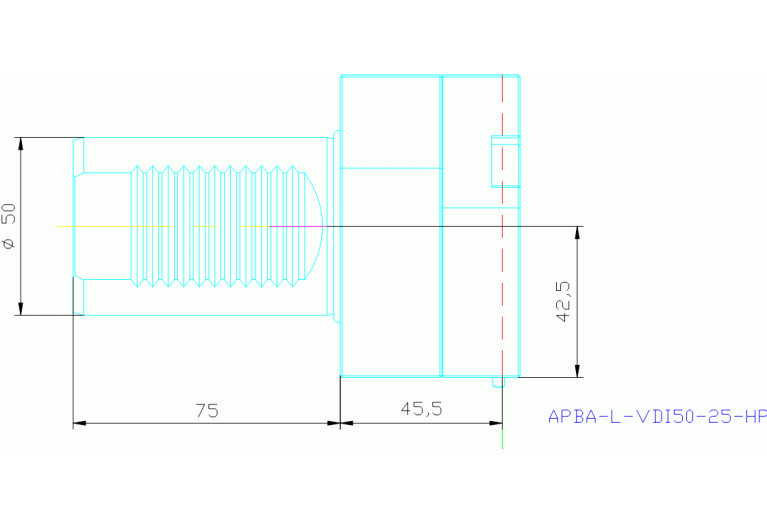

APBA-L-VDI50-25-HP

Артикул: 6423422

В наличии

0 ₽

В корзину

Описание

Характеристики

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

PMC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

6 - With coolant supply (discharge), peripheral/decentralized via flange

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

CZCWS (Connection size code)

0250

DCONWS (Diameter)

50 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

50 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYV05000195

HAND (Cutting direction)

L - Left

HF (Functional height)

25 mm

Interface codes

J6 / J61

ISO

ZYV01C0500$$$$

LF (Functional length)

45.5 mm

LOC-01 ISO

PMC01C0250****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

PMC Prism mounting SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0250

LOC-01 (DCONWS Diameter)

50 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

PMC02500195

LOC-02 ISO

PMC01C025L****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

PMC Prism mounting SANDVIK Coromant

LOC-02 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-02 (CZCWS Connection size code)

0250

LOC-02 (DCONWS Diameter)

50 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

PMC025L0195

LOC-03 ISO

ZYV01C0500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYV cylindrical shank VDI type (serrated)

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0500

LOC-03 (DCONMS Diameter)

50 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYV05000195

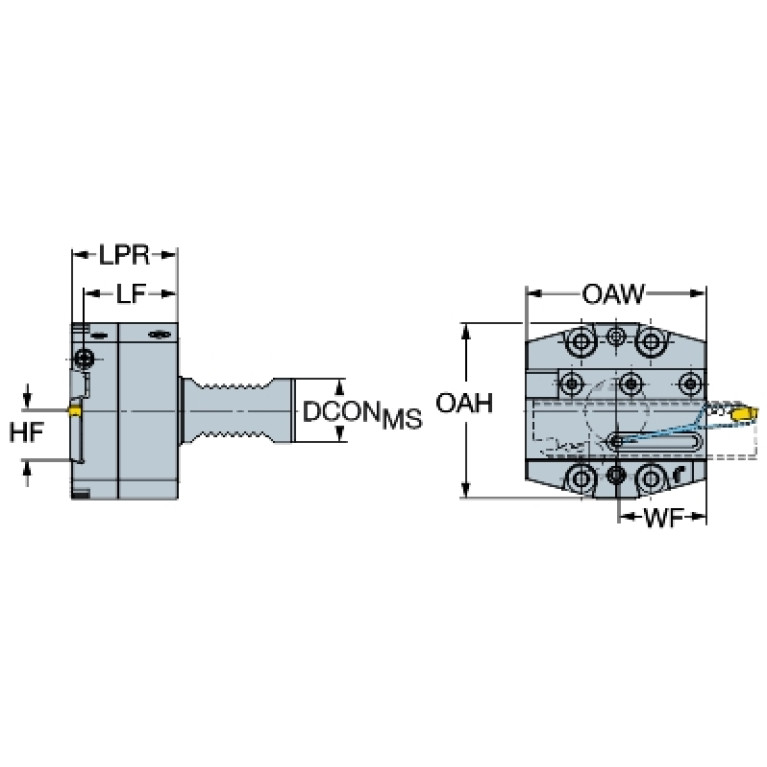

LPR (Protruding length)

50.5 mm

OAH (Overall height)

92 mm

OAL (Overall length)

125.5 mm

OAW (Overall width)

85 mm

WF (Functional width)

42.5 mm

WT (Weight of item)

3.665 kg
