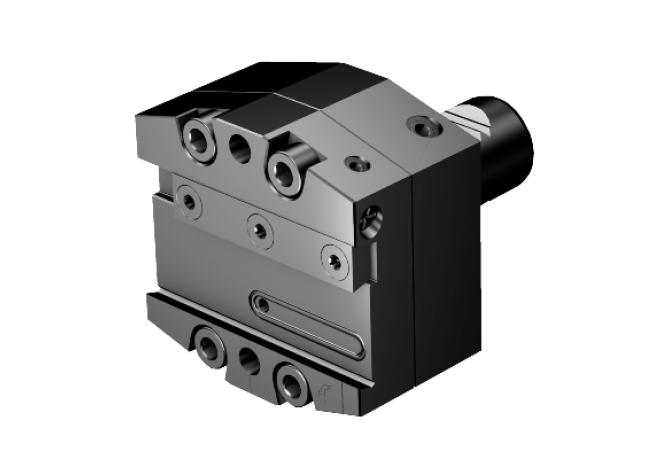

APBA-L-VDI30-21-HP
APBA-L-VDI30-21-HP
Артикул:
6423418
В наличии
0 ₽
Характеристики
CCFWS (Connection code form)
01
CCSWS (Connection code style)
5
CCTWS (Connection code type)
PMC
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
6 - With coolant supply (discharge), peripheral/decentralized via flange
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
CZCWS (Connection size code)
0210
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
ZYV03000195
HAND (Cutting direction)
L - Left

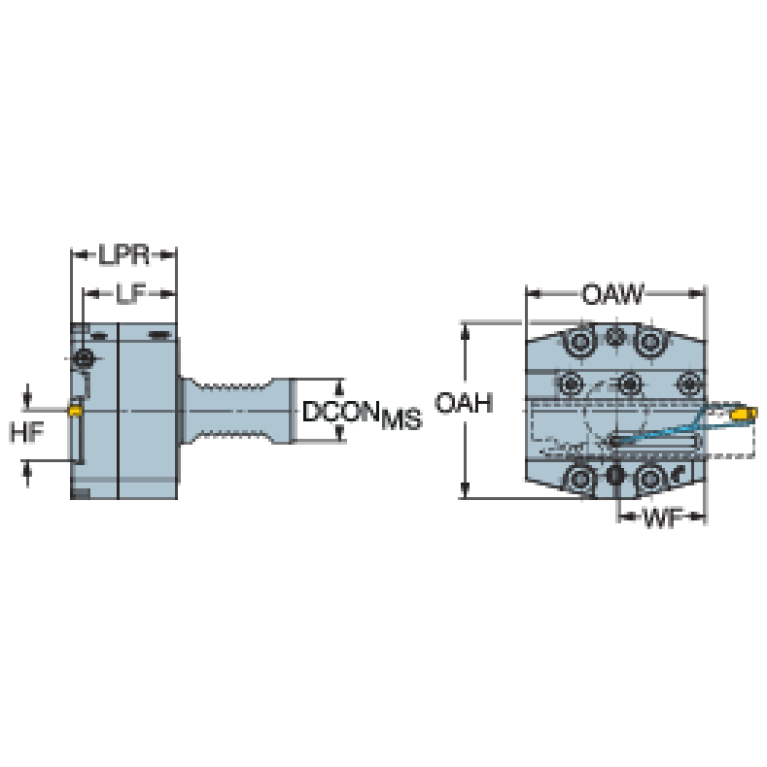

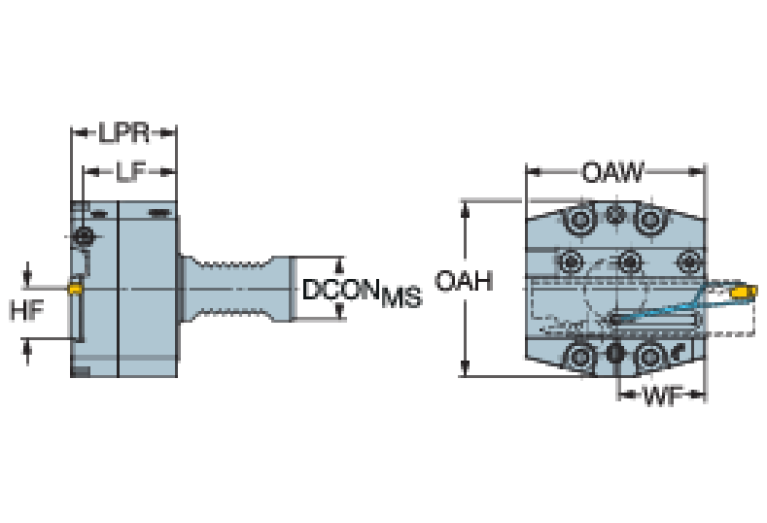

HF (Functional height)
21.4 mm
Interface codes
J6 / J61
ISO
ZYV01C0300$$$$

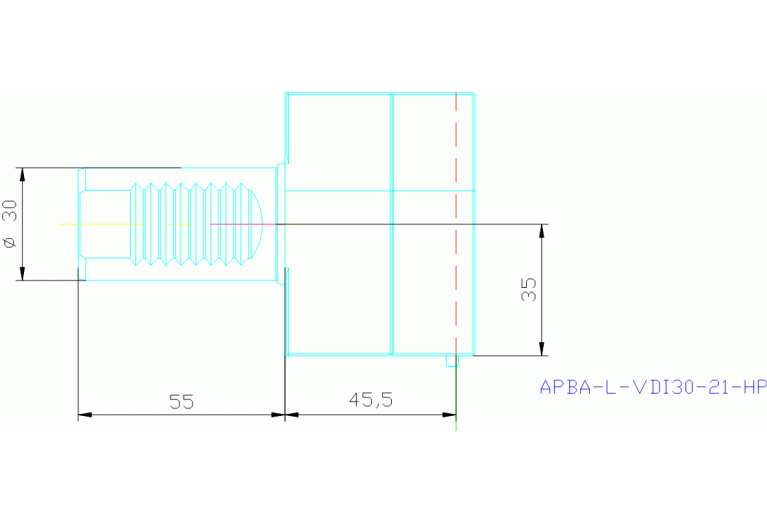

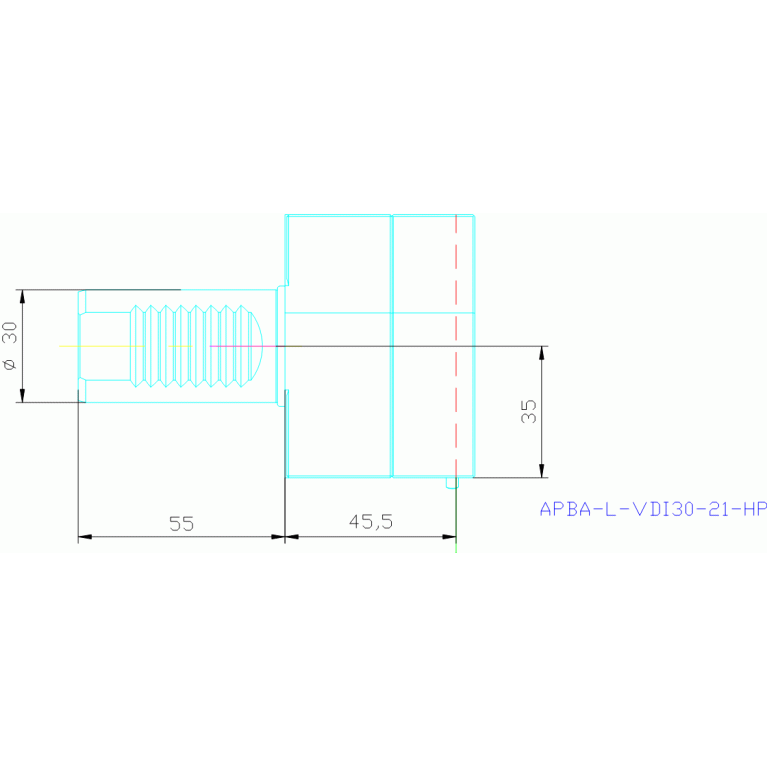

LF (Functional length)
45.5 mm
LOC-01 ISO
PMC01C0210****
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
PMC Prism mounting SANDVIK Coromant
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0210
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
PMC02100195
LOC-02 ISO
PMC01C021L****
LOC-02 (CCFWS Connection code form)
01
LOC-02 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-02 (CCTWS Connection code type)
PMC Prism mounting SANDVIK Coromant
LOC-02 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-02 (CZCWS Connection size code)
0210
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
PMC021L0195
LOC-03 ISO
ZYV01C0300$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYV cylindrical shank VDI type (serrated)
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0300
LOC-03 (DCONMS Diameter)
30 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYV03000195
LPR (Protruding length)
50.5 mm
OAH (Overall height)
66 mm
OAL (Overall length)
105.5 mm
OAW (Overall width)
70 mm
WF (Functional width)
35 mm
WT (Weight of item)
1.95 kg
