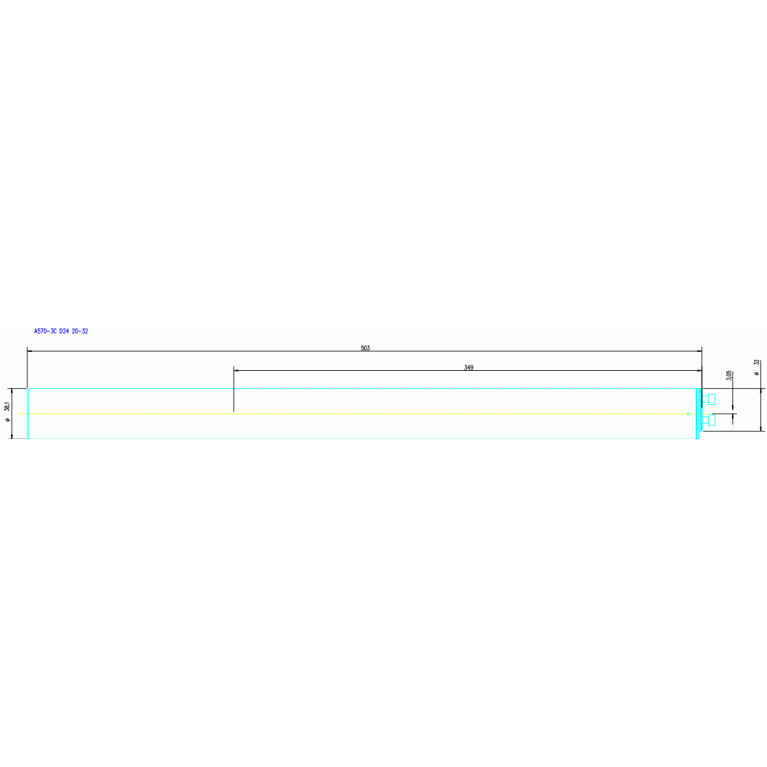

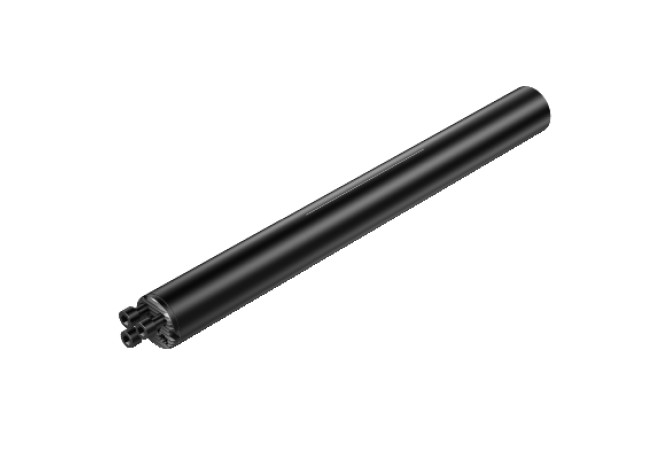

A570-3C D24 20-32
A570-3C D24 20-32
Артикул:
5723049
В наличии
0 ₽
Характеристики
BD (Body diameter)
38.1 mm
CCFWS (Connection code form)
01
CCSWS (Connection code style)
7
CCTWS (Connection code type)
CMS
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0320

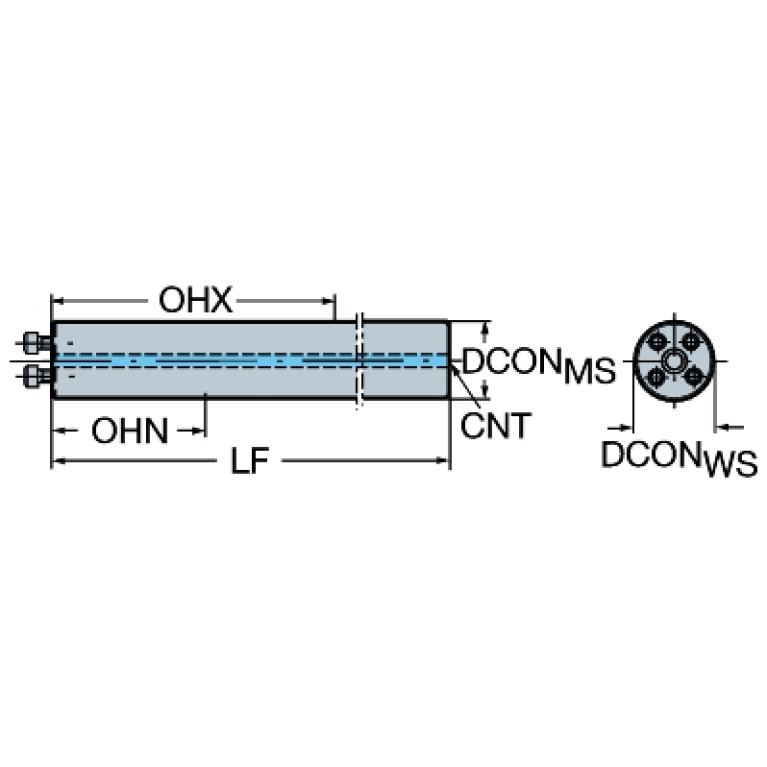

DCONWS (Diameter)
38.1 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
38.1 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL15000135
HAND (Cutting direction)
N - Neutral
HF (Functional height)
0 mm
Interface codes
J6 / J61
ISO
ZYL01S1500$$$$
LB (Body length 1)
503 mm
LF (Functional length)
503 mm
LOC-01 ISO
CMS01C0320****
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
7 Serrated connection
LOC-01 (CCTWS Connection code type)
CMS Coromant Modular boring SANDVIK
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0320
LOC-01 (DCONWS Diameter)
38.1 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CMS03200197
LOC-03 ISO
ZYL01S1500$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
1500
LOC-03 (DCONMS Diameter)
38.1 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL15000135
LPR (Protruding length)
503 mm
LS (Shank length)
255 mm
LSCX (Clamping length maximum)
255 mm
OAL (Overall length)
503 mm
WF (Functional width)
3.05 mm
WT (Weight of item)
4.4 kg
