Главная Инструменты 401-02 - Converter, stationary A570-3C D128 126L

A570-3C D128 126L

A570-3C D128 126L A570-3C D128 126L A570-3C D128 126L A570-3C D128 126L

A570-3C D128 126L

SV - Sandvik-Coromant
Артикул: 5722909
В наличии
0 ₽
В корзину
Описание
Характеристики

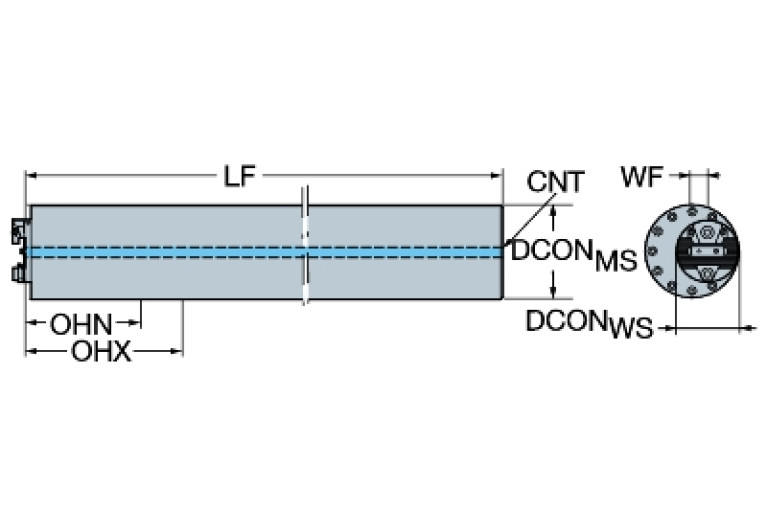

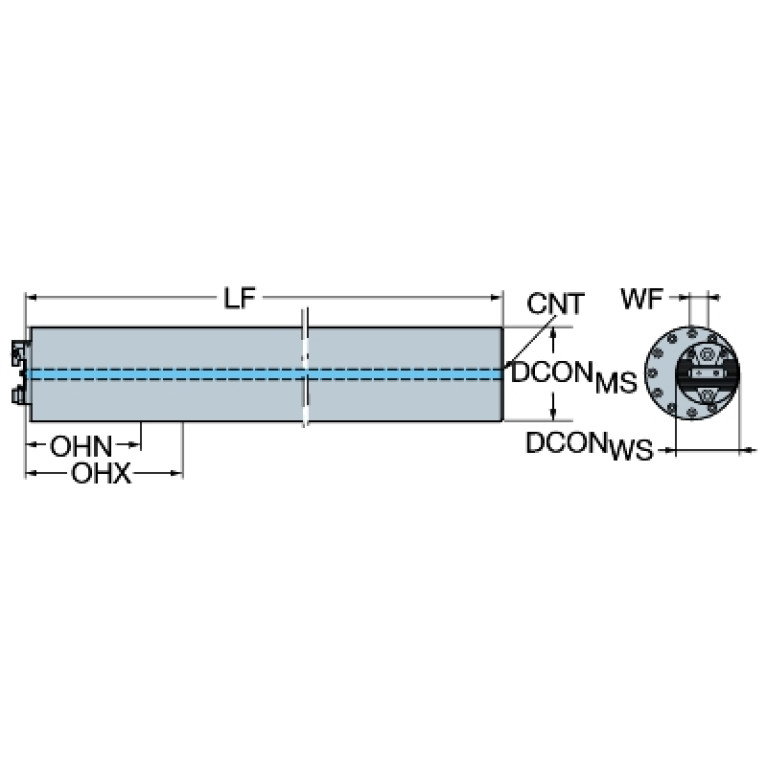

ADJBY (Adjustment property)
1 - Radial adjustment possible
BD (Body diameter)
203.2 mm
CCFWS (Connection code form)
02
CCSWS (Connection code style)
7
CCTWS (Connection code type)
CMS
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0800
DCONWS (Diameter)
80 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
80 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
ZYL80000115
HAND (Cutting direction)
L - Left
HF (Functional height)
0 mm
Interface codes
J6 / J61
ISO
ZYL01S8000$$$$
LB (Body length 1)
3200 mm
LF (Functional length)
3200 mm
LOC-01 ISO
CMS02C0800****
LOC-01 (CCFWS Connection code form)
02
LOC-01 (CCSWS Connection code style)
7 Serrated connection
LOC-01 (CCTWS Connection code type)
CMS Coromant Modular boring SANDVIK
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0800
LOC-01 (DCONWS Diameter)
80 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-02 ISO
CMS02C0848****
LOC-02 (DCONWS Diameter)
80 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-03 ISO
ZYL01S8000$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
8000
LOC-03 (DCONMS Diameter)
203.2 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL80000115
LPR (Protruding length)
3200 mm
LS (Shank length)
2540 mm
OAL (Overall length)
3235.5 mm
Rotation (Rotation indicator)
0 - stationary tool
WF (Functional width)
59.5 mm
WT (Weight of item)
629 kg
