Главная Инструменты 401-02 - Converter, stationary A393.277-125 02 085A

A393.277-125 02 085A

Артикул: 5723173

В наличии

0 ₽

В корзину

Описание

Характеристики

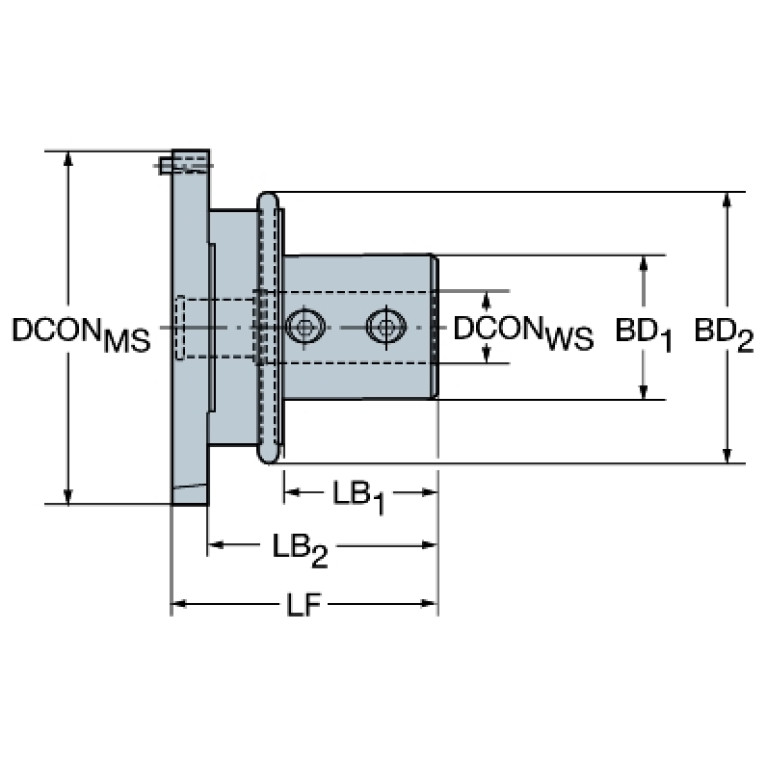

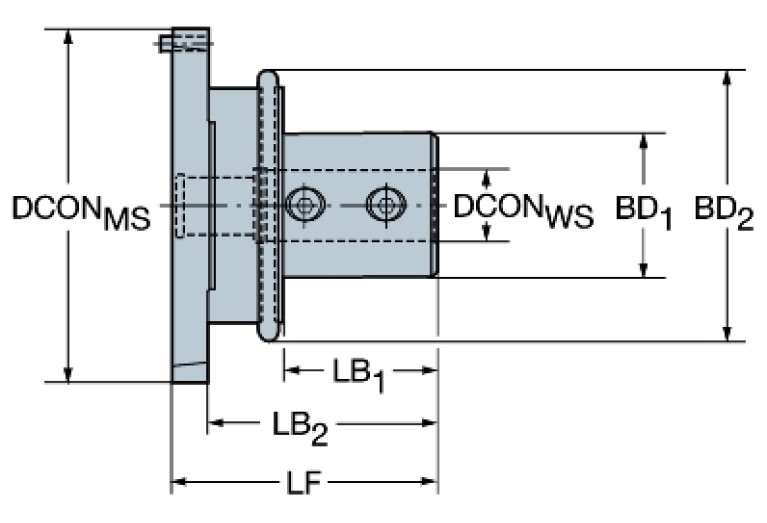

BD (Body diameter 2)

72 mm

BD (Body diameter 3)

98 mm

BD (Body diameter)

52 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

ZYL

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

1250

DCONWS (Diameter)

98 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

98 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

PMC09800895

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

PMC08C0980$$$$

LB (Body length 1)

54 mm

LB (Length 2)

21 mm

LB (Length Body diameter 3)

10 mm

LF (Functional length)

84.988 mm

LOC-01 ISO

ZYL11S1250****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-01 (CCUWS Connection code unit base)

3 Inch with coolant

LOC-01 (CZCWS Connection size code)

1250

LOC-01 (DCONWS Diameter)

98 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL12501135

LOC-02 ISO

ZYL11G3175****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

ZYL cylindrical shank

LOC-02 (CCUWS Connection code unit base)

3 Inch with coolant

LOC-02 (CZCWS Connection size code)

1250

LOC-02 (DCONWS Diameter)

98 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL03171115

LOC-03 ISO

PMC08C0980$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

PMC Prism mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0980

LOC-03 (DCONMS Diameter)

98 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

PMC09800895

LPR (Protruding length)

84.988 mm

OAL (Overall length)

84.988 mm

WT (Weight of item)

1.353 kg
