Главная Инструменты 401-02 - Converter, stationary 935-LA32-EFA16-090

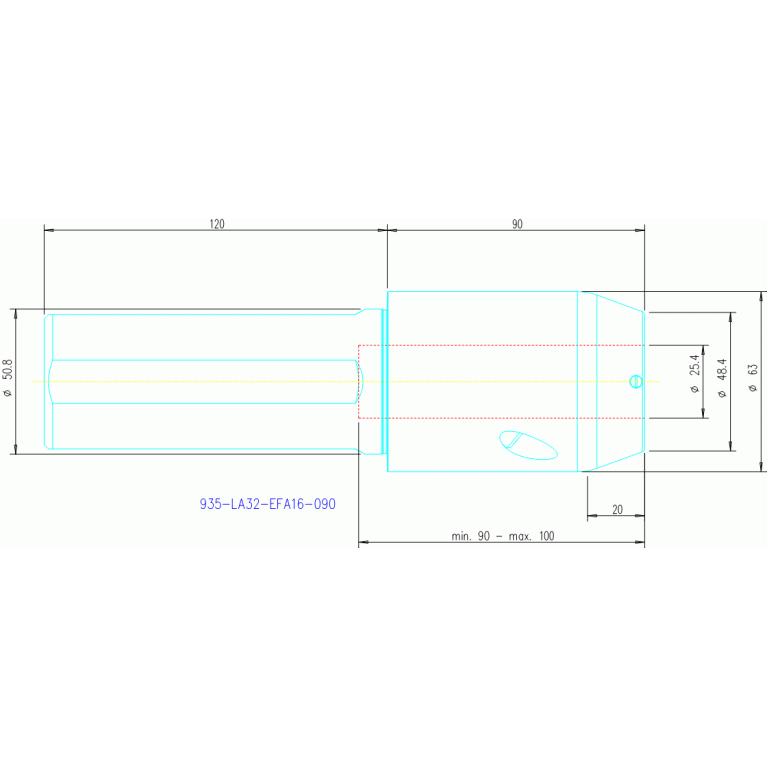

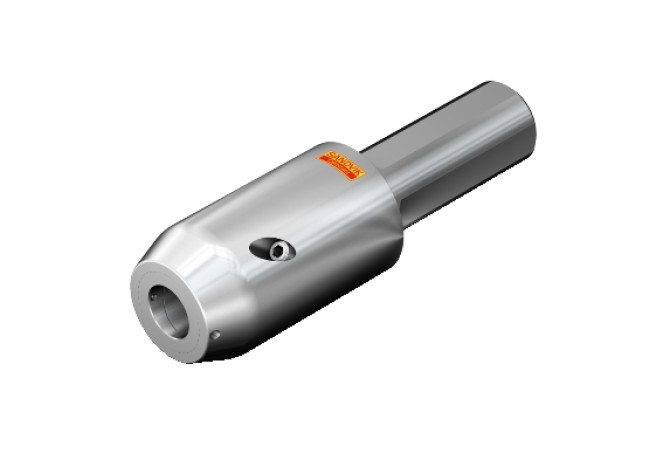

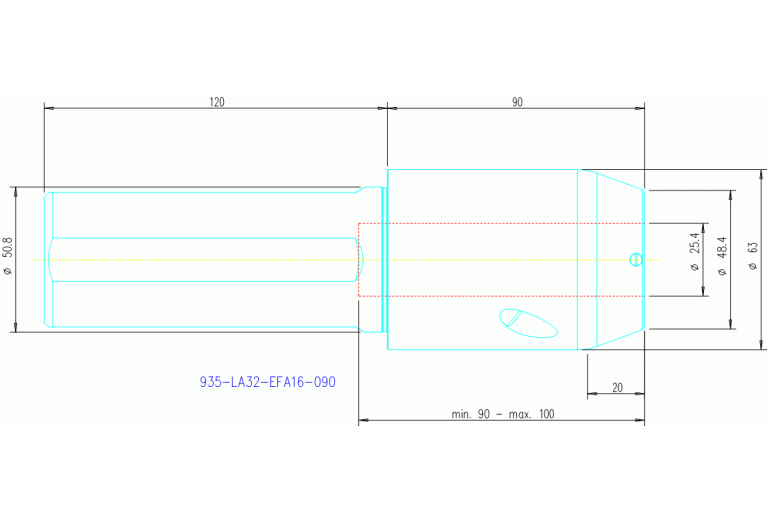

935-LA32-EFA16-090

Артикул: 7472592

В наличии

0 ₽

В корзину

Описание

Характеристики

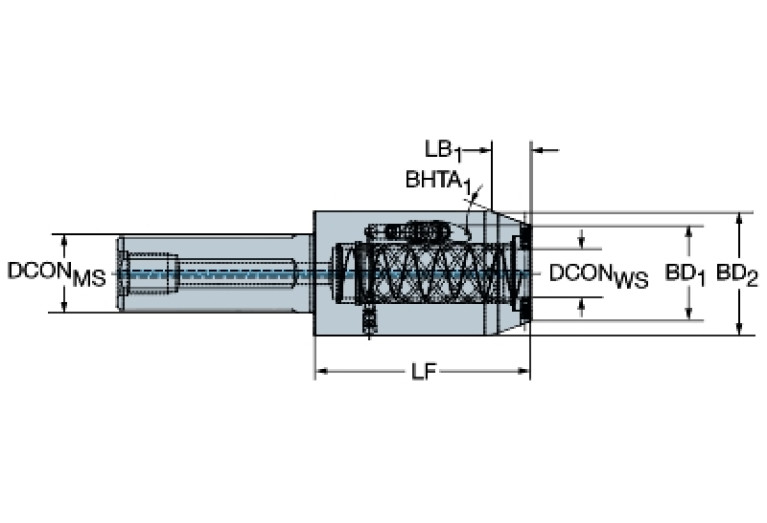

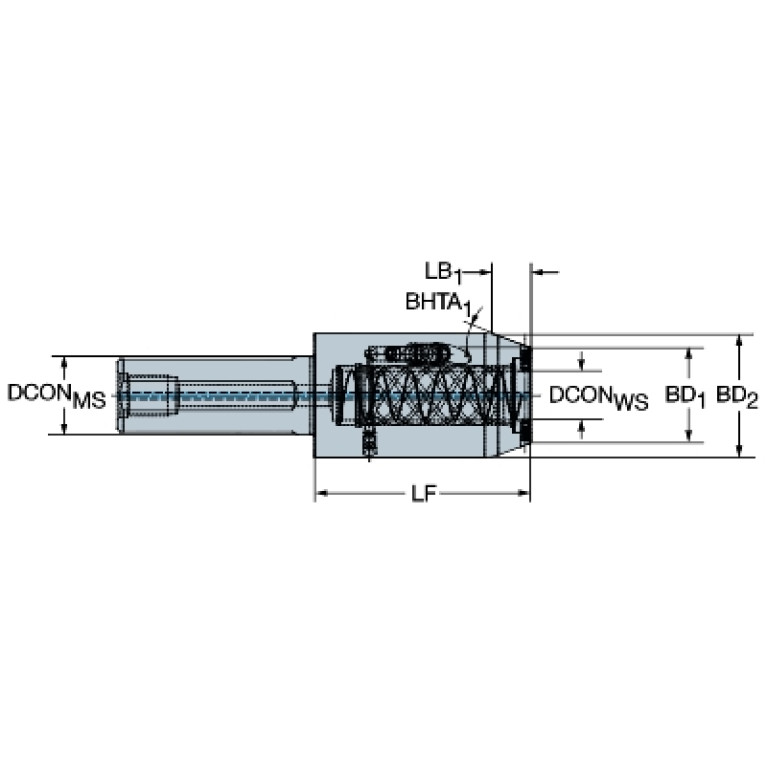

BD (Body diameter 2)

63 mm

BD (Body diameter)

62.959 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

SZC

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

1000

DCINTF (Interference cutting diameter)

48.4 mm

DCONWS (Diameter)

50.8 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

50.8 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL20002235

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

ZYL22S2000$$$$

LB (Body length 1)

20 mm

LB (Length 2)

70 mm

LF (Functional length)

90 mm

LOC-01 ISO

SZC02S1000****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

SZC Collet adapter SANDVIK Coromant

LOC-01 (CCUWS Connection code unit base)

3 Inch with coolant

LOC-01 (CZCWS Connection size code)

1000

LOC-01 (DCONWS Diameter)

50.8 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZC10000235

LOC-02 ISO

SZC02G2540****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-02 (CCTWS Connection code type)

SZC Collet adapter SANDVIK Coromant

LOC-02 (CCUWS Connection code unit base)

3 Inch with coolant

LOC-02 (CZCWS Connection size code)

1000

LOC-02 (DCONWS Diameter)

50.8 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SZC02540215

LOC-03 ISO

ZYL22S2000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

2000

LOC-03 (DCONMS Diameter)

50.8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL20002235

LPR (Protruding length)

90 mm

LS (Shank length)

120 mm

LSCN (Clamping length minimum)

100 mm

LSCX (Clamping length maximum)

120 mm

OAL (Overall length)

210 mm

TA (Taper angle)

20 Degree

WT (Weight of item)

3.329 kg
