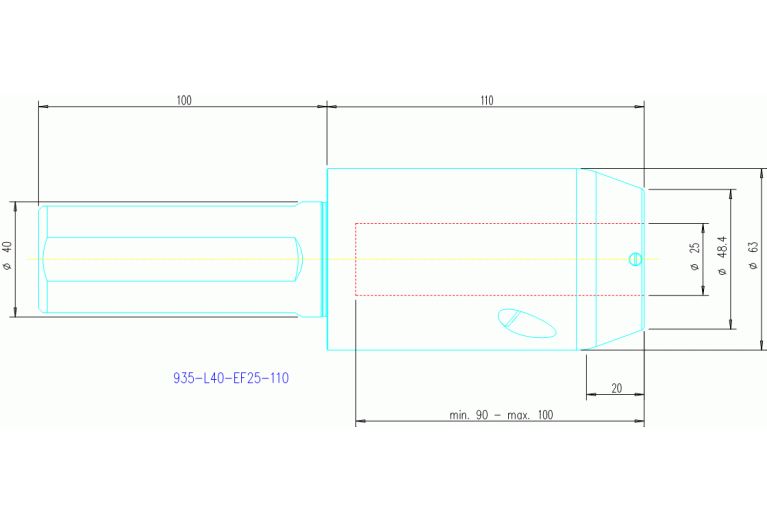

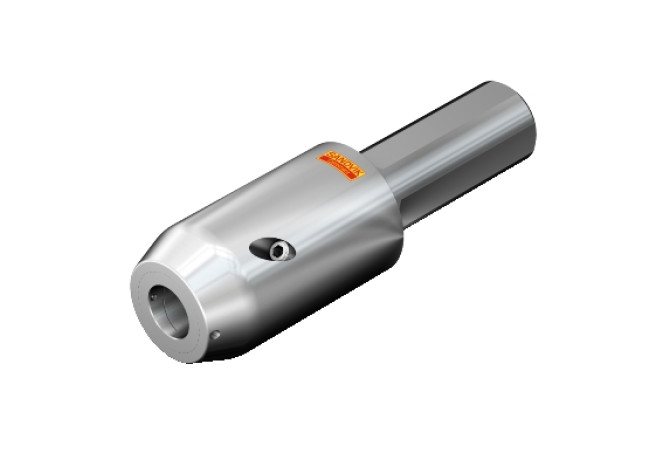

935-L40-EF25-110
935-L40-EF25-110
Артикул:
7472584
В наличии
0 ₽

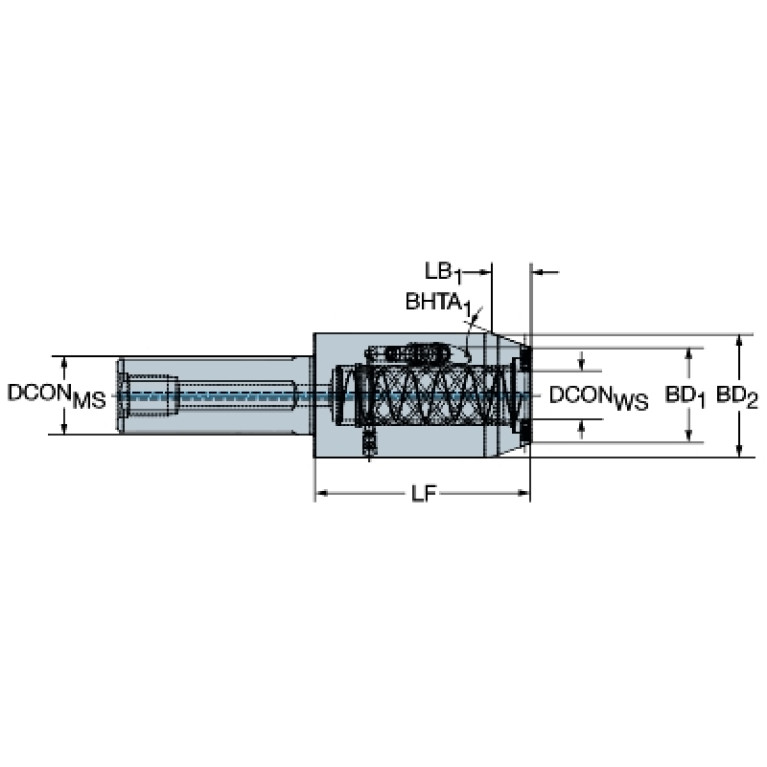

Характеристики
BD (Body diameter 2)
63 mm
BD (Body diameter)
62.959 mm
BLDEV (Balancing device)
CCFWS (Connection code form)
02
CCSWS (Connection code style)
5
CCTWS (Connection code type)
SZC
CCUWS (Connection code unit base)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0250
DCINTF (Interference cutting diameter)
48.4 mm
DCONWS (Diameter)
25 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
25 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL04002215
HAND (Cutting direction)
N - Neutral
Interface codes
J6 / J61
ISO
ZYL22G4000$$$$
LB (Body length 1)
20 mm
LB (Length 2)
90 mm
LF (Functional length)
110 mm
LOC-01 ISO
SZC02G2500****
LOC-01 (CCFWS Connection code form)
02
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
SZC Collet adapter SANDVIK Coromant
LOC-01 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-01 (CZCWS Connection size code)
0250
LOC-01 (DCONWS Diameter)
25 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZC02500215
LOC-02 ISO
SZC02R9842****
LOC-02 (CCFWS Connection code form)
02
LOC-02 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-02 (CCTWS Connection code type)
SZC Collet adapter SANDVIK Coromant
LOC-02 (CCUWS Connection code unit base)
1 Metric with coolant
LOC-02 (CZCWS Connection size code)
0250
LOC-02 (DCONWS Diameter)
25 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SZC09840235
LOC-03 ISO
ZYL22G4000$$$$
LOC-03 (CCFMS Connection code form)
22
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
0400
LOC-03 (DCONMS Diameter)
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04002215
LPR (Protruding length)
110 mm
LS (Shank length)
100 mm
LSCN (Clamping length minimum)
100 mm
LSCX (Clamping length maximum)
100 mm
OAL (Overall length)
210 mm
TA (Taper angle)
20 Degree
WT (Weight of item)
2.952 kg
