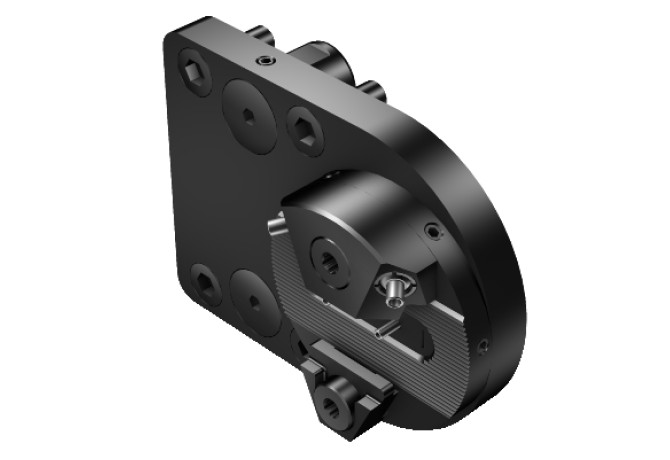

Главная Инструменты 401-02 - Converter, stationary 570-80 200R

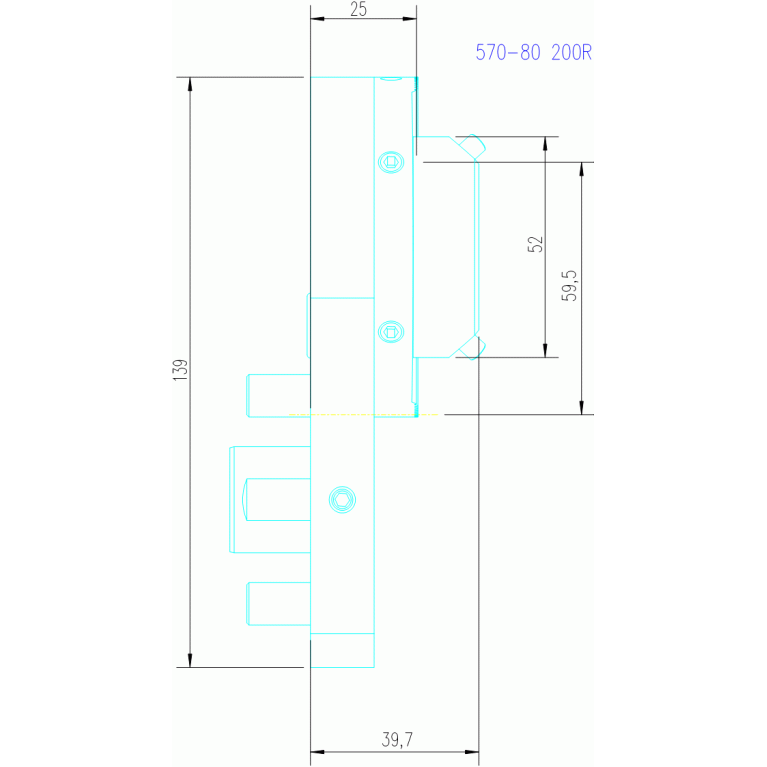

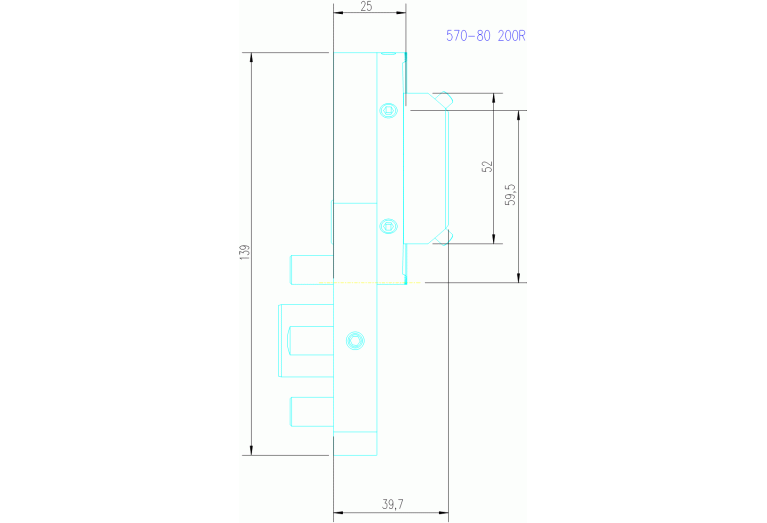

570-80 200R

Артикул: 5765085

В наличии

0 ₽

В корзину

Описание

Характеристики

ADJBY (Adjustment property)

1 - Radial adjustment possible

BD (Body diameter)

80 mm

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

CMS

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0800

DCONWS (Diameter)

80 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

80 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

FLC25711095

HAND (Cutting direction)

R - Right

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

FLC10C2571$$$$

LB (Body length 1)

25 mm

LF (Functional length)

25 mm

LOC-01 ISO

CMS02C0800****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

7 Serrated connection

LOC-01 (CCTWS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0800

LOC-01 (DCONWS Diameter)

80 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CMS08000297

LOC-02 ISO

CMS02C0848****

LOC-02 (CCFWS Connection code form)

LOC-02 (CCSWS Connection code style)

7 Serrated connection

LOC-02 (CCTWS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-02 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-02 (CZCWS Connection size code)

0800

LOC-02 (DCONWS Diameter)

80 mm

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

CMS08480297

LOC-03 ISO

FLC10C2571$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

FLC Flange mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

2571

LOC-03 (DCONMS Diameter)

80 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FLC25711095

LPR (Protruding length)

25 mm

OAH (Overall height)

104 mm

OAL (Overall length)

40 mm

OAW (Overall width)

139 mm

WF (Functional width)

59.5 mm

WT (Weight of item)

2.346 kg
