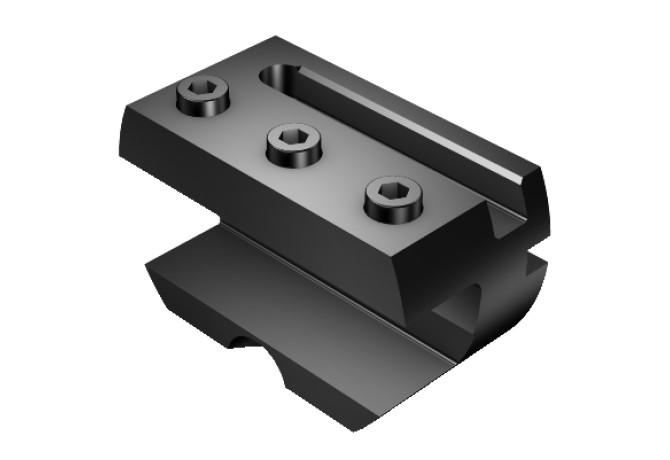

Главная Инструменты 401-02 - Converter, stationary 570-80 20 2020R

570-80 20 2020R

Артикул: 5765041

В наличии

0 ₽

В корзину

Описание

Характеристики

CCFWS (Connection code form)

CCONWS (Connection count workpiece side)

CCSWS (Connection code style)

CCTWS (Connection code type)

VKT

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

CZCWS (Connection size code)

2012

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CMS08480287

HAND (Cutting direction)

N - Neutral

HF (Functional height)

20 mm

Interface codes

J6 / J61

ISO

CMS02C0848$$$$

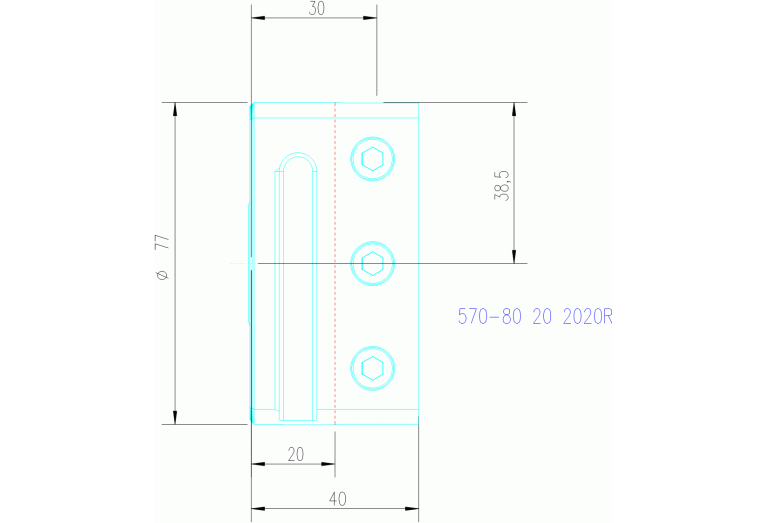

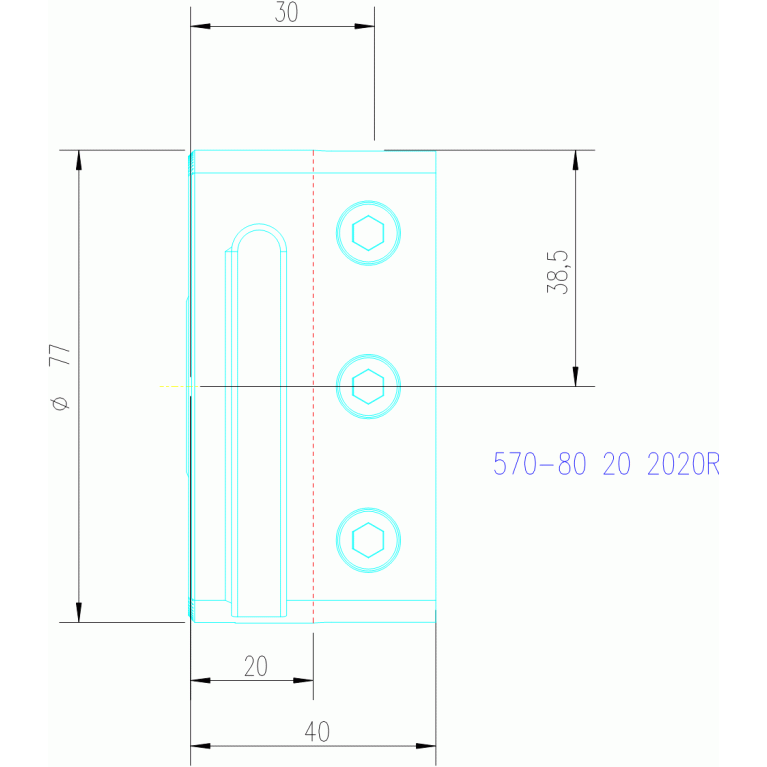

LF (Functional length)

20 mm

LOC-01 ISO

VKT01A2012****VKT01A2022****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

VKT Square mounting

LOC-01 (CCUWS Connection code unit base)

0 Metric

LOC-01 (CZCWS Connection size code)

2012

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VKT20120105VKT20220105

LOC-03 ISO

CMS02C0848$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

7 Serrated connection

LOC-03 (CCTMS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0848

LOC-03 (DCONMS Diameter)

80 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CMS08480287

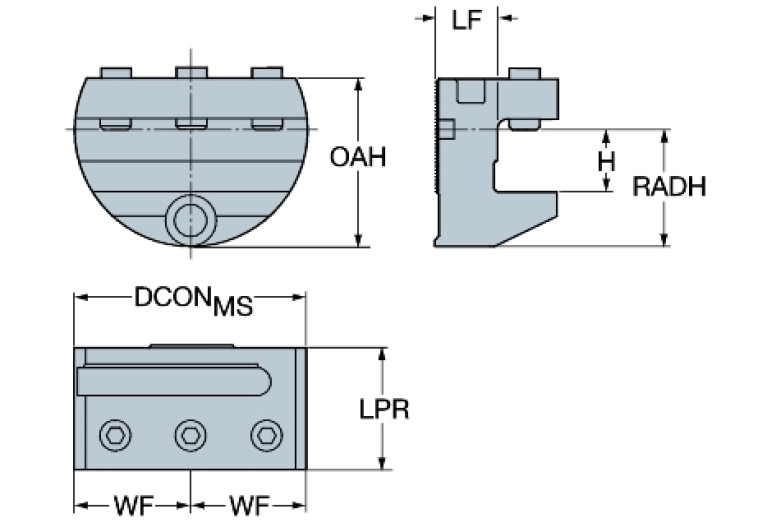

LPR (Protruding length)

40 mm

OAH (Overall height)

56 mm

OAL (Overall length)

40 mm

OAW (Overall width)

77 mm

WF (Functional width)

38.5 mm

WT (Weight of item)

0.783 kg
