Главная Инструменты 401-02 - Converter, stationary 570-3C 40 528

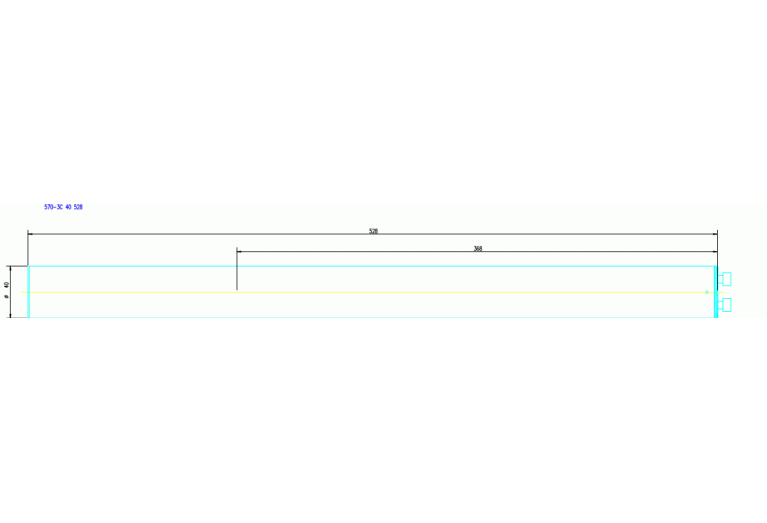

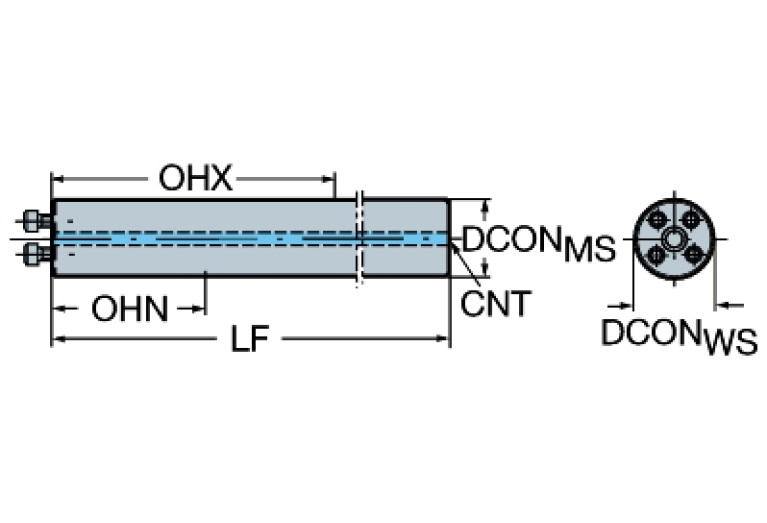

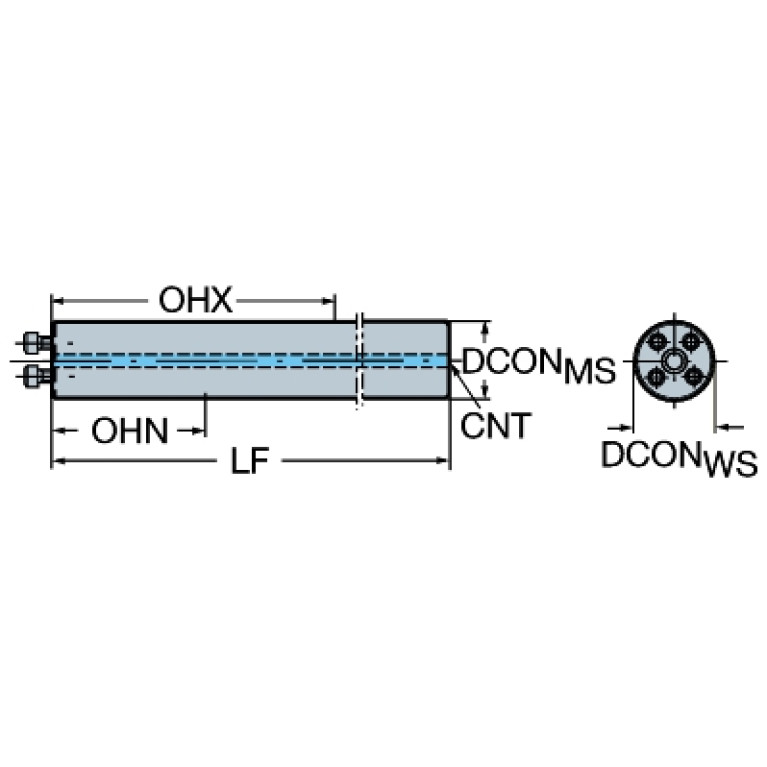

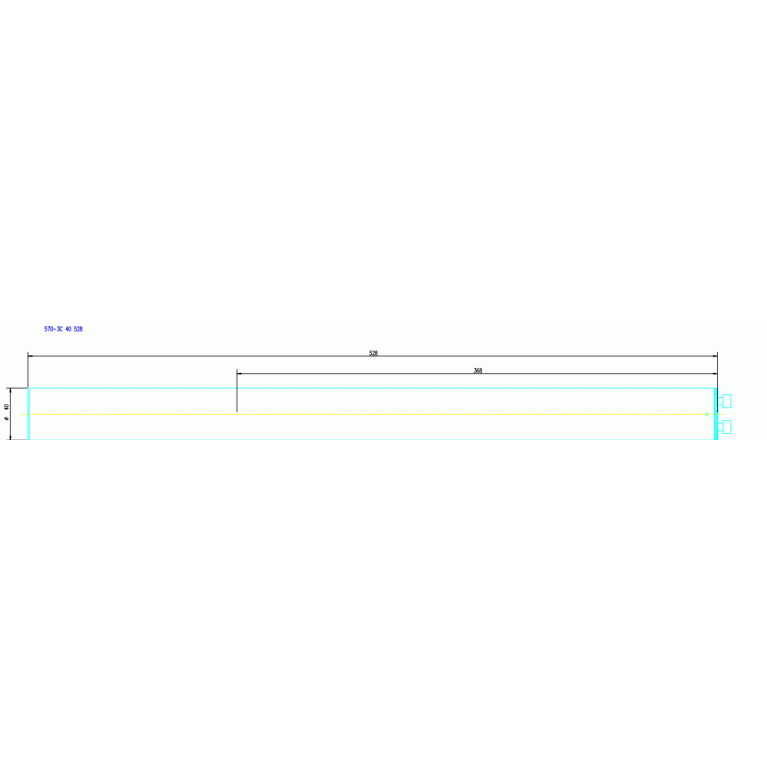

570-3C 40 528

Артикул: 5764484

В наличии

0 ₽

В корзину

Описание

Характеристики

BD (Body diameter)

40 mm

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

CMS

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0400

DCONWS (Diameter)

40 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

40 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL04000115

HAND (Cutting direction)

N - Neutral

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

ZYL01G4000$$$$

LB (Body length 1)

528 mm

LF (Functional length)

528 mm

LOC-01 ISO

CMS01C0400****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

7 Serrated connection

LOC-01 (CCTWS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0400

LOC-01 (DCONWS Diameter)

40 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CMS04000197

LOC-03 ISO

ZYL01G4000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0400

LOC-03 (DCONMS Diameter)

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04000115

LPR (Protruding length)

368 mm

LS (Shank length)

280 mm

LSCX (Clamping length maximum)

280 mm

OAL (Overall length)

528 mm

WF (Functional width)

0 mm

WT (Weight of item)

5.1 kg
