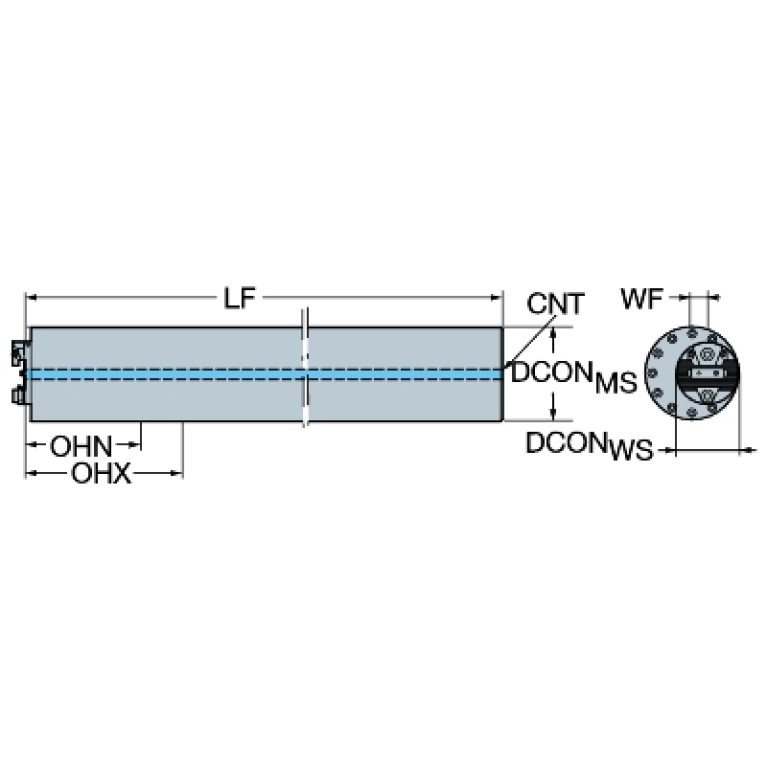

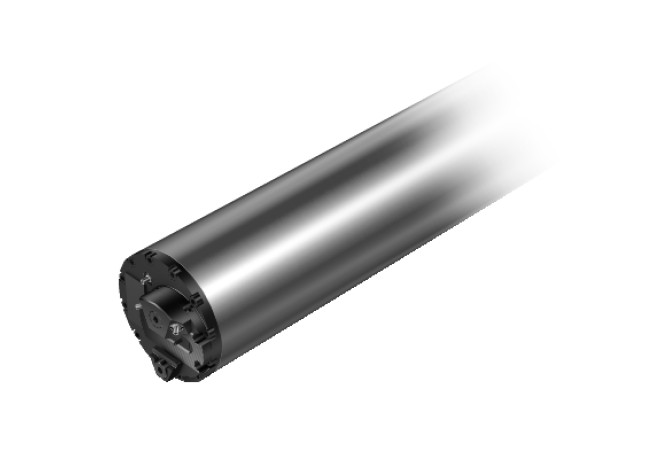

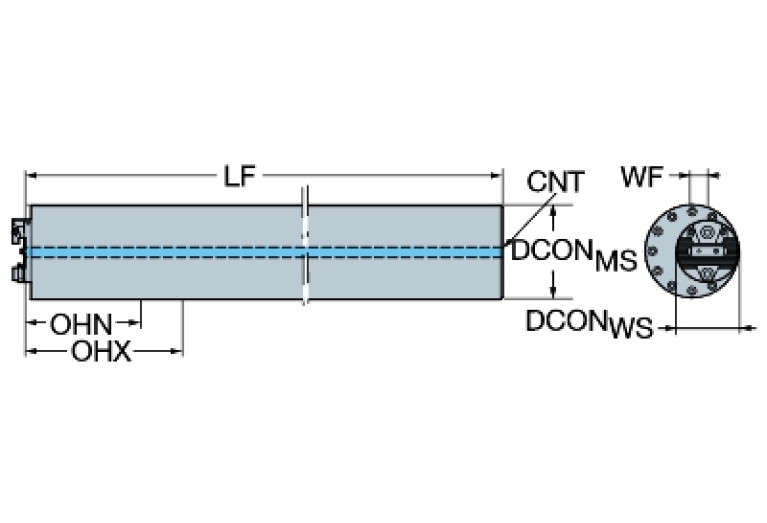

Главная Инструменты 401-02 - Converter, stationary 570-3C 150 2400R

570-3C 150 2400R

570-3C 150 2400R 570-3C 150 2400R 570-3C 150 2400R 570-3C 150 2400R

570-3C 150 2400R

SV - Sandvik-Coromant
Артикул: 5764543
В наличии
0 ₽
В корзину
Описание
Характеристики
ADJBY (Adjustment property)
1 - Radial adjustment possible
BD (Body diameter)
150 mm
CCFWS (Connection code form)
02
CCSWS (Connection code style)
7
CCTWS (Connection code type)
CMS
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0800
DCONWS (Diameter)
150 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
150 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL15000115
HAND (Cutting direction)
R - Right
HF (Functional height)
0 mm
Interface codes
J6 / J61
ISO
ZYL01H1500$$$$
LB (Body length 1)
2400 mm
LF (Functional length)
2400 mm
LOC-01 ISO
CMS02C0800****
LOC-01 (CCFWS Connection code form)
02
LOC-01 (CCSWS Connection code style)
7 Serrated connection
LOC-01 (CCTWS Connection code type)
CMS Coromant Modular boring SANDVIK
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0800
LOC-01 (DCONWS Diameter)
150 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CMS08000297
LOC-02 ISO
CMS02C0848****
LOC-02 (CCFWS Connection code form)
02
LOC-02 (CCSWS Connection code style)
7 Serrated connection
LOC-02 (CCTWS Connection code type)
CMS Coromant Modular boring SANDVIK
LOC-02 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-02 (CZCWS Connection size code)
0800
LOC-02 (DCONWS Diameter)
150 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
CMS08480297
LOC-03 ISO
ZYL01H1500$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
1500
LOC-03 (DCONMS Diameter)
150 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL15000115
LPR (Protruding length)
2400 mm
LS (Shank length)
1900 mm
LSCX (Clamping length maximum)
1900 mm
OAL (Overall length)
2426.5 mm
WF (Functional width)
35 mm
WT (Weight of item)
252.3 kg
