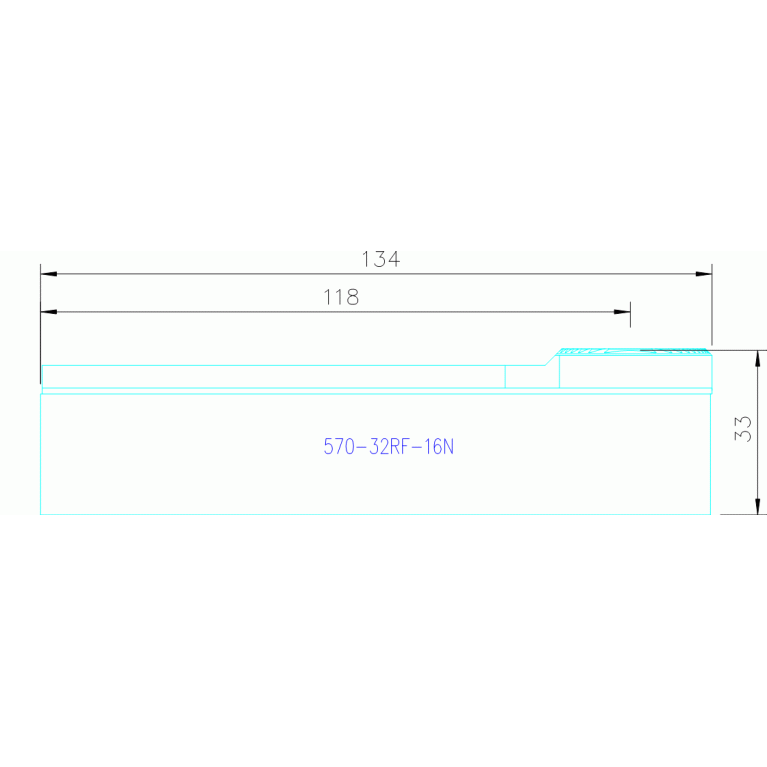

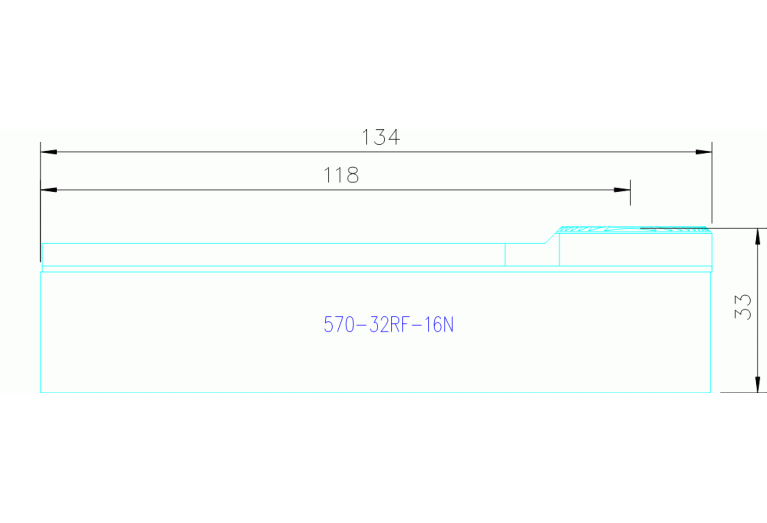

570-32RF-16N
570-32RF-16N
Артикул:
5764703
В наличии
0 ₽
Характеристики
CCFWS (Connection code form)
01
CCSWS (Connection code style)
7
CCTWS (Connection code type)
CMS
CCUWS (Connection code unit base)
8
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
CZCWS (Connection size code)
0320

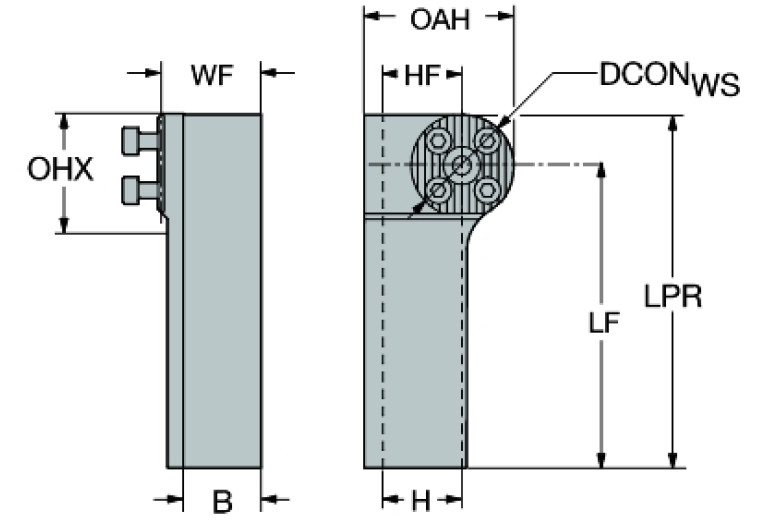

DCONWS (Diameter)
32 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
32 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT16160125
HAND (Cutting direction)
R - Right
HF (Functional height)
25.4 mm
Interface codes
J6 / J61
ISO
VKT01B1616$$$$
LF (Functional length)
118.06 mm
LOC-01 ISO
CMS01C0320****
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
7 Serrated connection
LOC-01 (CCTWS Connection code type)
CMS Coromant Modular boring SANDVIK
LOC-01 (CCUWS Connection code unit base)
8 non-dimensional size
LOC-01 (CZCWS Connection size code)
0320
LOC-01 (DCONWS Diameter)
32 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CMS03200187
LOC-03 ISO
VKT01B1616$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
VKT Square mounting
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
1616
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160125
LPR (Protruding length)
134.06 mm
OAH (Overall height)
47.7 mm
OAL (Overall length)
134.06 mm
WF (Functional width)
32.9 mm
WT (Weight of item)
0.881 kg
