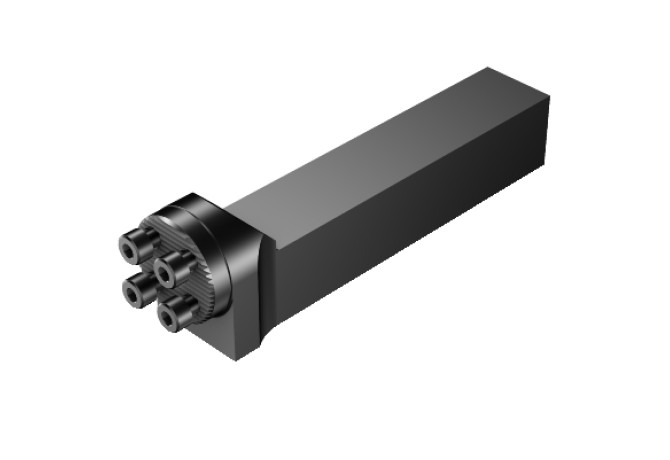

Главная Инструменты 401-02 - Converter, stationary 570-32NG-20

570-32NG-20

Артикул: 5764650

В наличии

0 ₽

В корзину

Описание

Характеристики

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

CMS

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

2 - With Coolant entry, radial

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0320

DCONWS (Diameter)

32 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

32 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

VKT20200135

HAND (Cutting direction)

N - Neutral

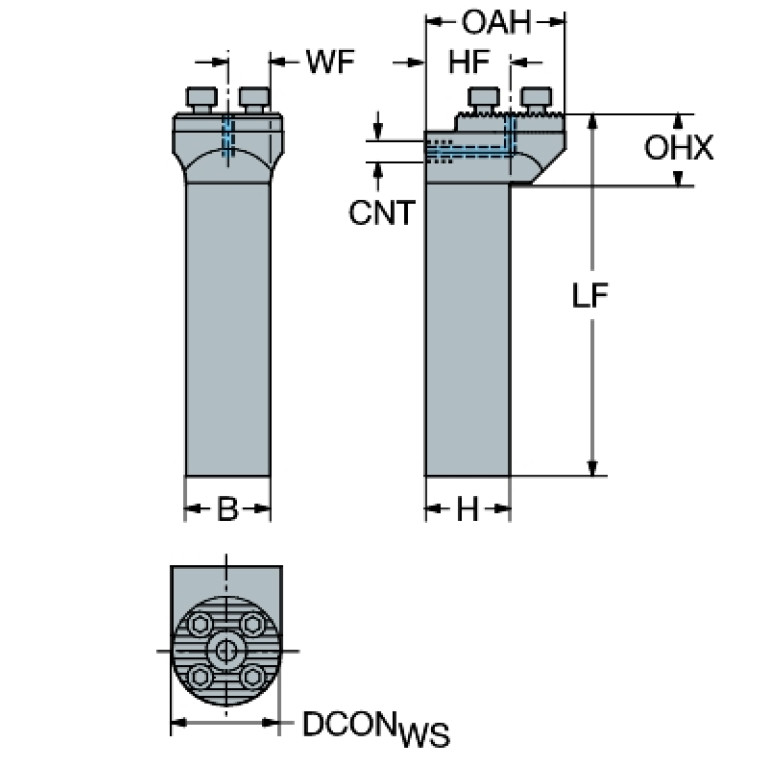

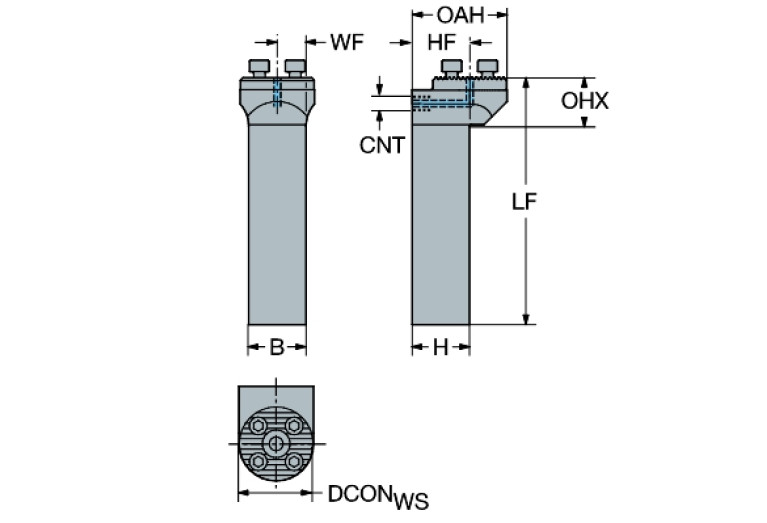

HF (Functional height)

31.75 mm

Interface codes

J6 / J61

ISO

VKT01B2020$$$$

LF (Functional length)

159.8 mm

LOC-01 ISO

CMS01C0320****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

7 Serrated connection

LOC-01 (CCTWS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0320

LOC-01 (DCONWS Diameter)

32 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CMS03200197

LOC-03 ISO

VKT01B2020$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

VKT Square mounting

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

2020

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT20200135

LPR (Protruding length)

159.8 mm

OAH (Overall height)

47.9 mm

OAL (Overall length)

159.8 mm

WF (Functional width)

15.875 mm

WT (Weight of item)

1.281 kg
