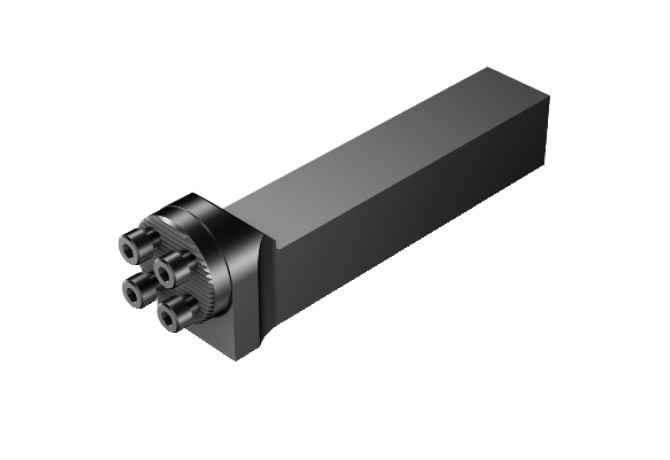

Главная Инструменты 401-02 - Converter, stationary 570-25NG-12

570-25NG-12

570-25NG-12 570-25NG-12 570-25NG-12 570-25NG-12

570-25NG-12

SV - Sandvik-Coromant
Артикул: 5764536
В наличии
0 ₽
В корзину
Описание
Характеристики
CCFWS (Connection code form)
01
CCSWS (Connection code style)
7
CCTWS (Connection code type)
CMS
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
2 - With Coolant entry, radial
CXSC (Coolant exit style code)
1 - With Coolant exit, axial concentric
CXSC (Coolant exit style code) / Тип подвода СОЖ
1 - With Coolant exit, axial concentric
CZCWS (Connection size code)
0250
DCONWS (Diameter)
25 mm
DCONWS (Diameter) / Диаметр соединения со стороны заготовки
25 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
VKT12120135
HAND (Cutting direction)
N - Neutral

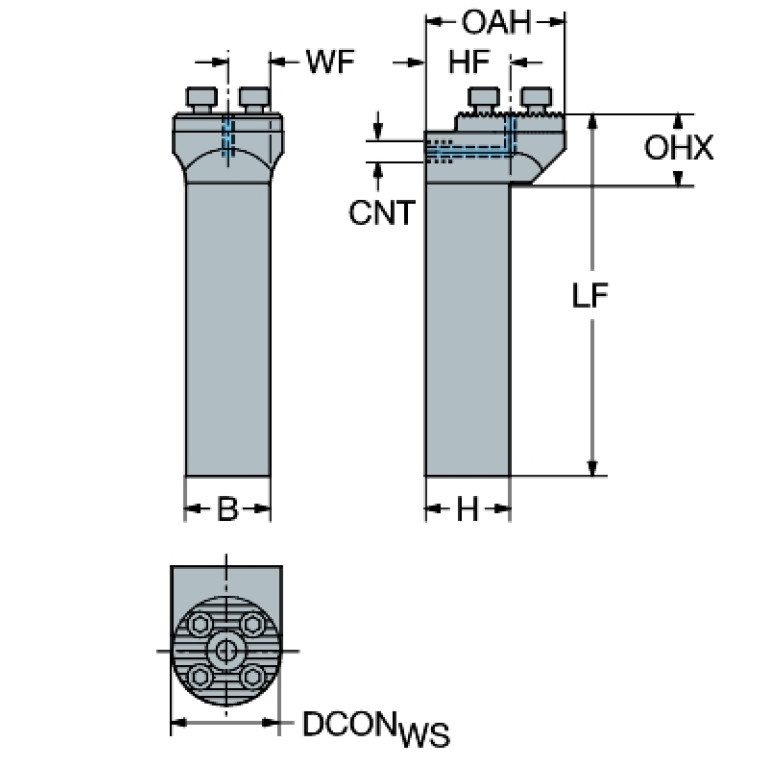

HF (Functional height)
19.05 mm
Interface codes
J6 / J61
ISO
VKT01B1212$$$$
LF (Functional length)
113 mm
LOC-01 ISO
CMS01C0250****
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
7 Serrated connection
LOC-01 (CCTWS Connection code type)
CMS Coromant Modular boring SANDVIK
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0250
LOC-01 (DCONWS Diameter)
25 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CMS02500197
LOC-03 ISO
VKT01B1212$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
VKT Square mounting
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
1212
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT12120135
LPR (Protruding length)
113 mm
OAH (Overall height)
31.7 mm
OAL (Overall length)
113 mm
WF (Functional width)
9.5 mm
WT (Weight of item)
0.37 kg
