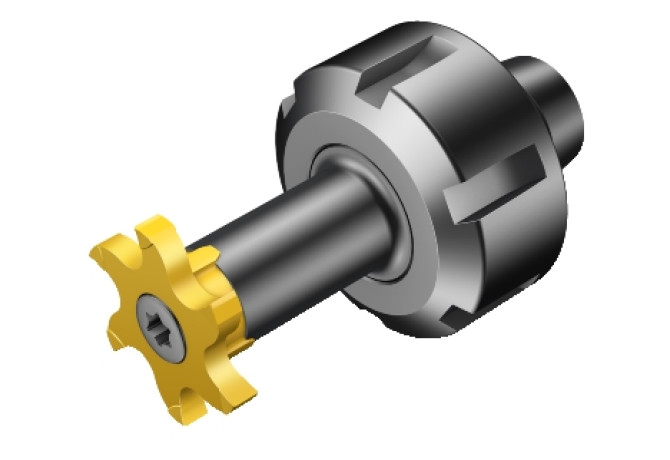

Главная Инструменты 401-02 - Converter, stationary 392.ER327-20 12 030

392.ER327-20 12 030

Артикул: 6073951

В наличии

0 ₽

В корзину

Описание

Характеристики

BD (Body diameter)

12 mm

BLDEV (Balancing device)

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

CMS

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

CZCWS (Connection size code)

0120

DCONWS (Diameter)

21 mm

DCONWS (Diameter) / Диаметр соединения со стороны заготовки

21 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SZD02000285

HAND (Cutting direction)

N - Neutral

Interface codes

J6 / J61

ISO

SZD02C0200$$$$

LB (Body length 1)

24.8 mm

LF (Functional length)

34.65 mm

LOC-01 ISO

CMS02C0120****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

7 Serrated connection

LOC-01 (CCTWS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-01 (CCUWS Connection code unit base)

8 non-dimensional size

LOC-01 (CZCWS Connection size code)

0120

LOC-01 (DCONWS Diameter)

21 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CMS01200287

LOC-03 ISO

SZD02C0200$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SZD Collet adapter DIN / ISO

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0200

LOC-03 (DCONMS Diameter)

21 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD02000285

LPR (Protruding length)

34.65 mm

OAL (Overall length)

59.95 mm

RPMX (Rotational speed maximum)

40000 1/min

WT (Weight of item)

0.251 kg
